Description

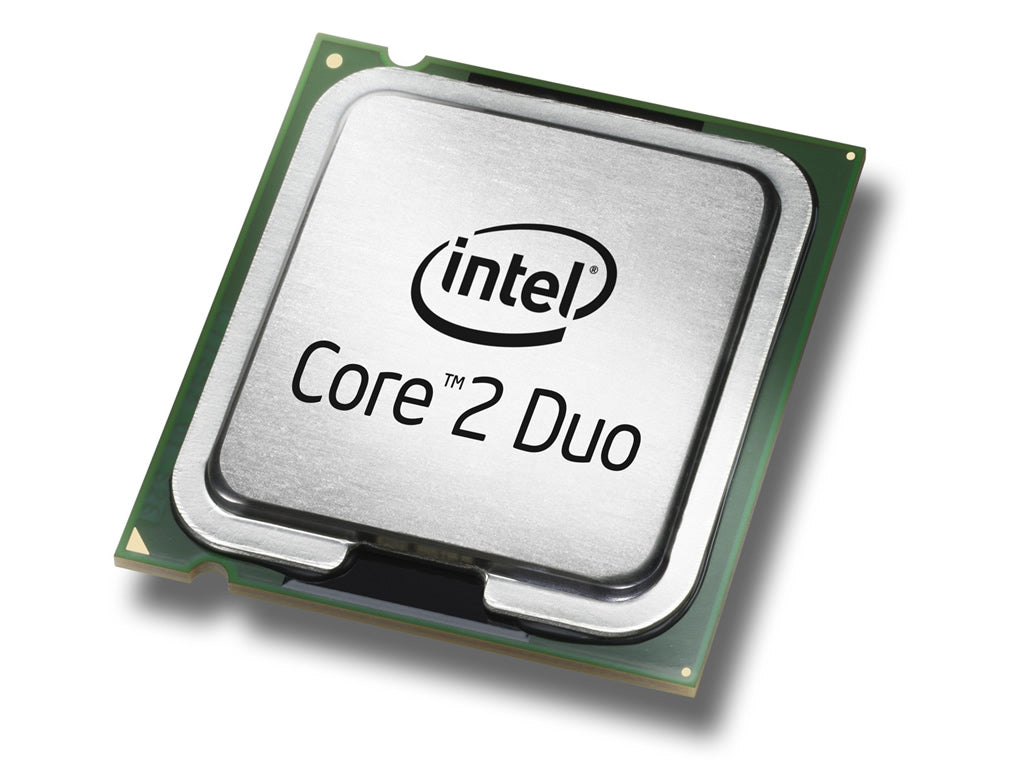

Intel Core P7550. Processor family: Intel® Core™2 Duo, Processor socket: Socket 478, Processor lithography: 45 nm. Market segment: Mobile, Number of Processing Die Transistors: 410 M, Processing Die size: 107 mm². Processor package size: 35mm x 35mm. Cache memory: 3 MB
Â
Specification:
Â
| Processor | |
|---|---|
| Processor generation | 3rd gen Intel® Core™ i3 |
| Processor base frequency | 2.4 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Ivy Bridge |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Thermal Design Power (TDP) | 35 W |
| Processor cache | 3 MB |
| Processor ARK ID | 65700 |
| Processor model | i3-3110M |
| Processor threads | 4 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Stepping | L1 |
| L3 cache speed | 2.40 GHz |
| CPU multiplier (bus/core ratio) | 24 |
| Bus type | DMI |
| Component for | Notebook |
| Processor lithography | 22 nm |
| Processor family | Intel® Core™ i3 |
| Processor cores | 2 |
| Box | No |
| Processor socket | PGA988 |
| Processor code | SR0N1 |
| Processor series | Intel Core i3-3100 Mobile Series |
| Processor cache type | Smart Cache |
| Generation | 3rd Generation |
| Memory | |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM |
| Memory channels | Dual-channel |
| ECC | No |
| Graphics | |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP), DisplayPort, HDMI, Serial Digital Video Out (SDVO), CRT |
| On-board graphics card ID | 0x166 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card model | Intel® HD Graphics 4000 |
| On-board graphics card | Yes |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| On-board graphics card base frequency | 650 MHz |
| Power | |
| Thermal Design Power (TDP) | 35 W |
| Technical details | |
| Thermal Monitoring Technologies | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8, 1x8, 2x4 |
| Supported instruction sets | AVX |
| L3 cache speed | 2.40 GHz |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | No |
| Graphics & IMC lithography | 22 nm |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR0N1 |
| Graphics output | eDP/DP/HDMI/SDVO/CRT |
| Product type | Processor |
| Processor cache | 3072 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 35 W |
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM |
| Status | Discontinued |
| Processor series | Intel Core i3-3100 Mobile Series |
| Market segment | Mobile |
| Launch date | Q2'12 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 5 |
| Maximum memory | 32 GB |
| Processor brand name | Intel Core i3 Intel Core i3 Processor |
| Last change | 63903513 |
| Product family | 3rd Generation Intel Core i3 Processors |
| Processor ID | 0x166 |
| Bus speed | 5 GT/s |
| Features | |
| On-board graphics card ID | 0x166 |
| Maximum number of PCI Express lanes | 16 |
| Thermal Design Power (TDP) | 35 W |
| Processor package size | 37.5mm x 37.5mm; 31mm x 24mm |
| Integrated 4G WiMAX | Yes |
| Processor ARK ID | 65700 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x16, 2x8, 1x8, 2x4 |
| Supported instruction sets | AVX |
| Graphics & IMC lithography | 22 nm |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR0N1 |
| Market segment | Mobile |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 3A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| PCI Express CEM revision | 2.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel® vPro™ Platform Eligibility | No |
| Operational conditions | |
| Tjunction | 105 °C |
| Weight & dimensions | |
| Processor package size | 37.5mm x 37.5mm; 31mm x 24mm |
| Other features | |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Maximum internal memory | 32 GB |
| Maximum internal memory | 32768 MB |
| CPU configuration (max) | 1 |
| Processor code | SR0N1 |
| Graphics output | eDP/DP/HDMI/SDVO/CRT |
