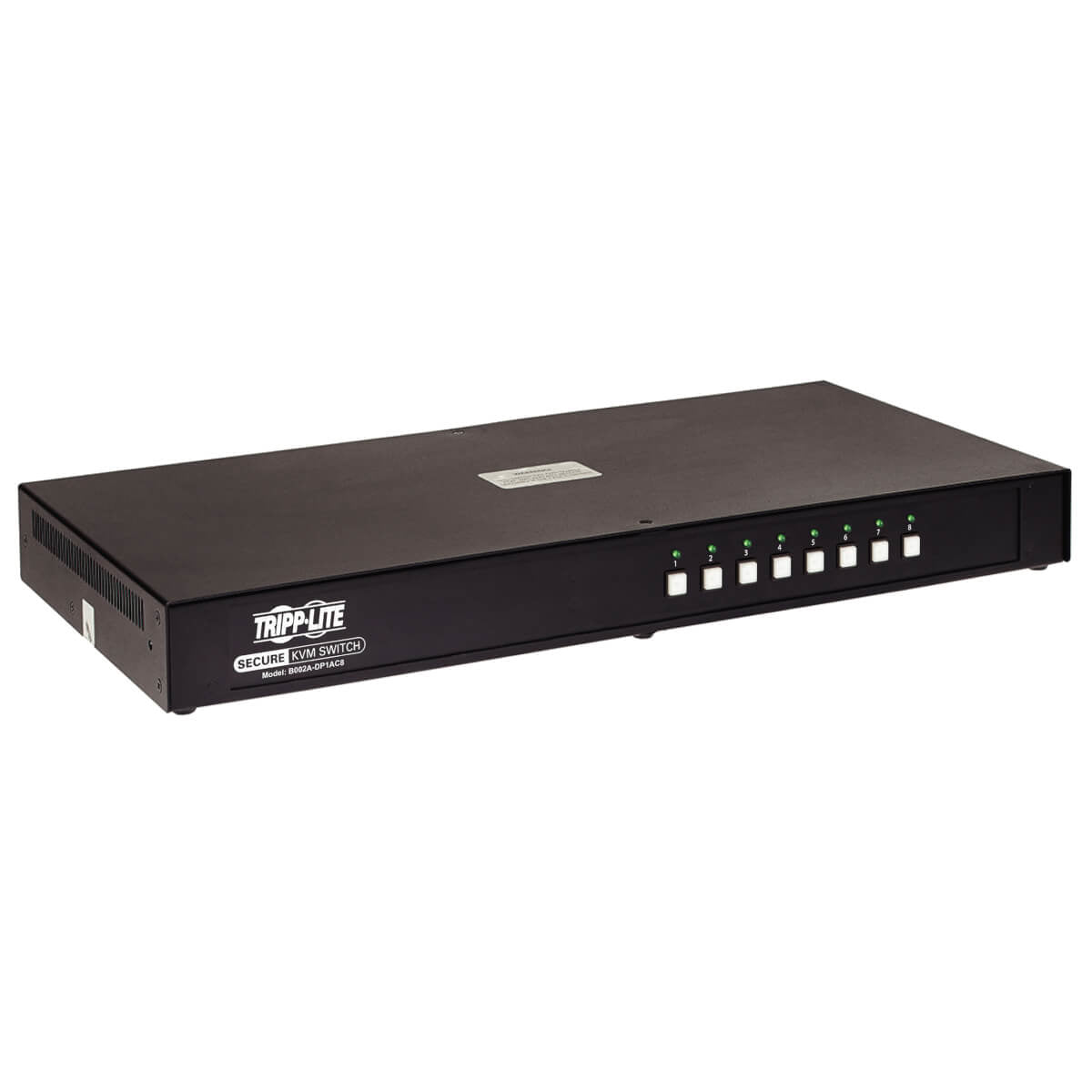

B002A-DP1AC8 - Tripp Lite 8-PORT SINGLE-MONITOR SECURE KVM SWITCH, DISPLAYPORT - 4K, NIAP PP3.0, AUDIO, CA

8-Port DisplayPort KVM Switch Is Ideal for Applications That Demand Secure Networks This eight-port KVM switch is recommended for any government, military, financial or healthcare environment where tight security of sensitive data is of utmost importance in a world of constantly changing cyberthreats. Each KVM port is an electronically isolated channel, making it impossible for data to be transferred between connected computers through the KVM. The single-monitor switch supports crystal-clear Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. NIAP PP3.0 Certified to Meet Today’s Top Information Assurance Standards This KVM switch is certified by NIAP (National Information Assurance Partnership), which is operated by the National Security Agency (NSA), to the latest Common Criteria Protection Profile for Peripheral Sharing Switches Version 3.0. Discrete processing paths to each connected system prevents data leakage, transfer and crosstalk between adjacent ports. Peripheral isolation enables data to flow from device to host only. Top-of-the-Line Security Features Keep Your Data Safe Special protection prevents re-programming of firmware, so the switch’s KVM logic remains unaltered. The keyboard buffer clears automatically after data transmission, ensuring no information is left stored. Plus, you can only access connected computers via buttons on the switch’s panel. Other port-switching methods, such as On-Screen Display (OSD) and Hotkey Commands, have been excluded to further ensure data integrity. CAC Port Supports Biometric and Other Smart Card Readers The Common Access Card port supports smart cards, scanners and biometric readers, including fingerprint readers, to bolster security. You may assign and register specific peripherals to the CAC port, providing a secure connection for user authentication. Anti-Tampering Protection Prevents Physical Breeches If the housing is opened, internal anti-tamper switches will disable the unit, causing it to become inoperable and the front-panel LEDs to flash repeatedly. Seals on the enclosure will provide visual evidence of tampering. Maintains Constant Keyboard and Mouse Emulation for Smooth No-Delay Switching Full USB device filtering ensures support for keyboard and mouse only. This KVM switch also supports secure video emulation and EDID learning, which prevents unwanted data from transmitting through the DDC lines. Both keyboard/mouse and video emulation controllers restrict discovery of newly connected peripherals or monitors during switching operations, shielding your computers from potential vulnerabilities. Accessory Cable Kits - P783-006-U and P783-010-U Designed specifically for the B002A-DP1AC8, Tripp Lite’s P783-006-U and P783-010-U KVM cable kits (sold separately) help eliminate unnecessary clutter and save you money by combining cables into one convenient kit. These cables comply with HDCP 2.2 and DisplayPort 1.2 standards and support USB 2.0 speeds up to 480 Mbps. TAA-Compliant for GSA Schedule Purchases The B002A-DP1AC8 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Ports & interfaces
Cable length	59.1" (1.5 m)
Console USB ports quantity	2
Console ports	3.5mm headphone, DisplayPort, USB A
USB connector type	USB Type-A, USB Type-B
DisplayPorts quantity	6
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	2
DC-in jack	Yes
USB 2.0 Type-B ports quantity	2
Technical details
Product colour	Black
Rack mounting	No
Push button	Yes
Number of users	1 user(s)
LED indicators	Yes
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Number of users	1 user(s)
Design
Country of origin	United States
Product colour	Black
Cable length	59.1" (1.5 m)
Rack mounting	No
Push button	Yes
LED indicators	Yes
Housing material	Metal
Display
Built-in display	No
Power
Input current	0.8 A
Output current	2 A
Output voltage	12 V
Power source	DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
External power adapter	Yes
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Features
Country of origin	United States
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Weight	3.86 lbs (1.75 kg)
Package width	9.5" (241.3 mm)
Package depth	4.25" (108 mm)
Package height	12.5" (317.5 mm)
Package weight	3.99 lbs (1.81 kg)
Packaging data
Package type	Box
Package width	9.5" (241.3 mm)
Package depth	4.25" (108 mm)
Package height	12.5" (317.5 mm)
Package weight	3.99 lbs (1.81 kg)
Packaging content
Cables included	AC
Manual	Yes
AC adapter included	Yes
Package type	Box
Logistics data
Country of origin	United States
Master (outer) case width	19" (482.6 mm)
Master (outer) case length	19" (482.6 mm)
Master (outer) case height	25" (635 mm)
Master (outer) case gross weight	45 lbs (20.4 kg)
Products per master (outer) case	12 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332261523
Harmonized System (HS) code	8471.80.4000
Other features
Push button	Yes
