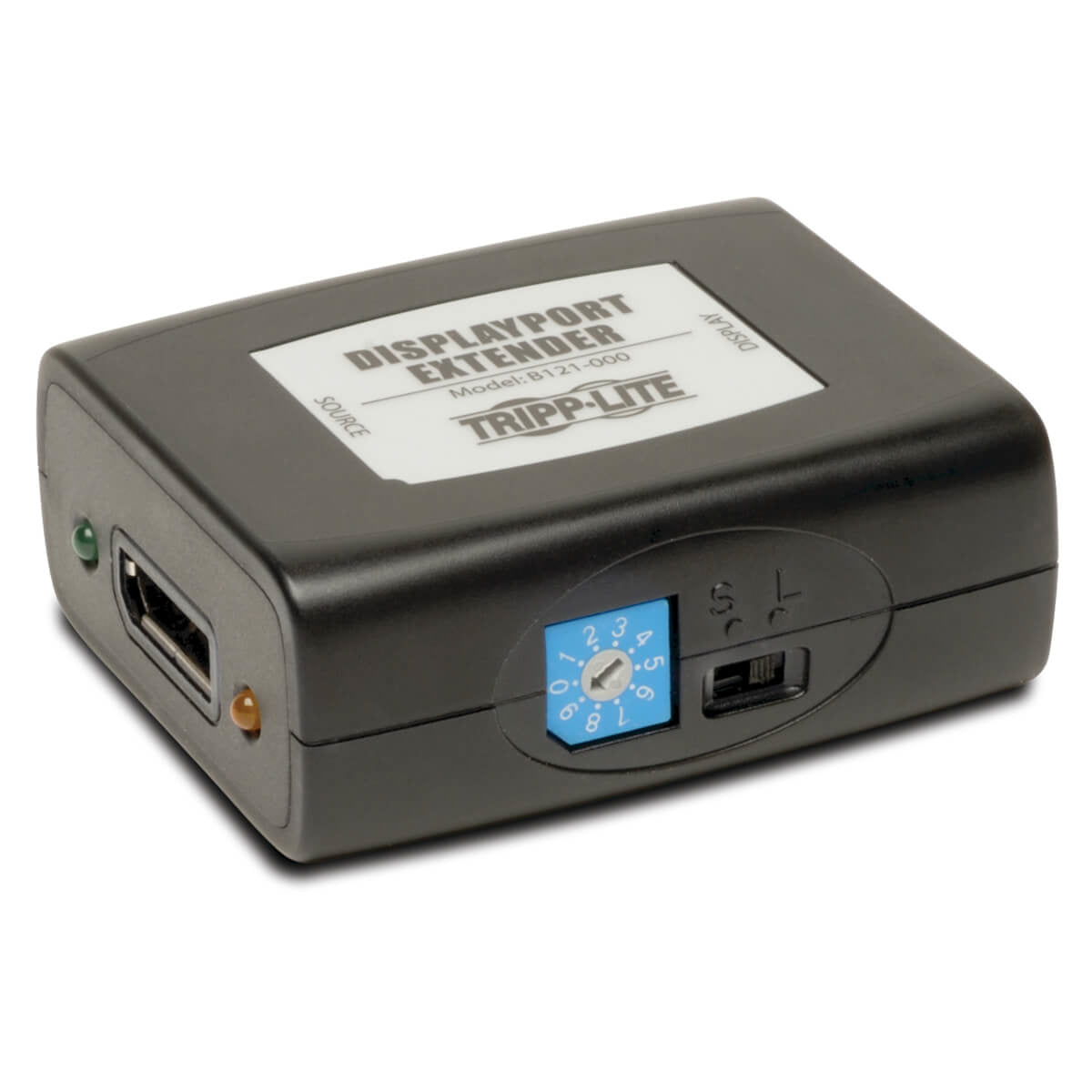

B121-000 - Tripp Lite DISPLAYPORT EXTENDER EQUALIZER REPEATER VIDEO/AUDIO 1080P TAA

Tripp Lite's B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 45.72 m (150-ft.) from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 30.5 m (100-ft.), use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (4.88 m (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant. - Extend a Displayport signal up to 45.72 m (150-ft.) from the source - Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p. - When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) signal more than 30.5 m (100 ft.), use cable made with 24Awg wiring - Built-in Equalization control to adjust the video image - Displayport v1.1a compliant - Extend a Displayport signal up to 45.72 m (150-ft.) from the source - Supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz - Use P580-Series Displayport Cables - When extending a 1920x1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 30.5 m (100-ft.), use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order) - Built-in Equalization control to adjust the video image - HDCP compliant



Specification:



Features
Type	AV repeater
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5, Cat5e
Maximum transfer distance	1800" (45.7 m)
Audio system	Multichannel
Supported video modes	1080p
Ports & interfaces
HDMI in	1
Number of HDMI outputs	1
DC-in jack	Yes
Packaging data
Package depth	6" (152.4 mm)
Package width	4.6" (116.8 mm)
Package height	1.3" (33 mm)
Package weight	4.94 oz (140 g)
Technical details
Country of origin	Taiwan
Logistics data
Master (outer) case width	6.6" (167.6 mm)
Master (outer) case length	13.4" (340.4 mm)
Master (outer) case height	5.6" (142.2 mm)
Master (outer) case gross weight	25.7 oz (730 g)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332133141
