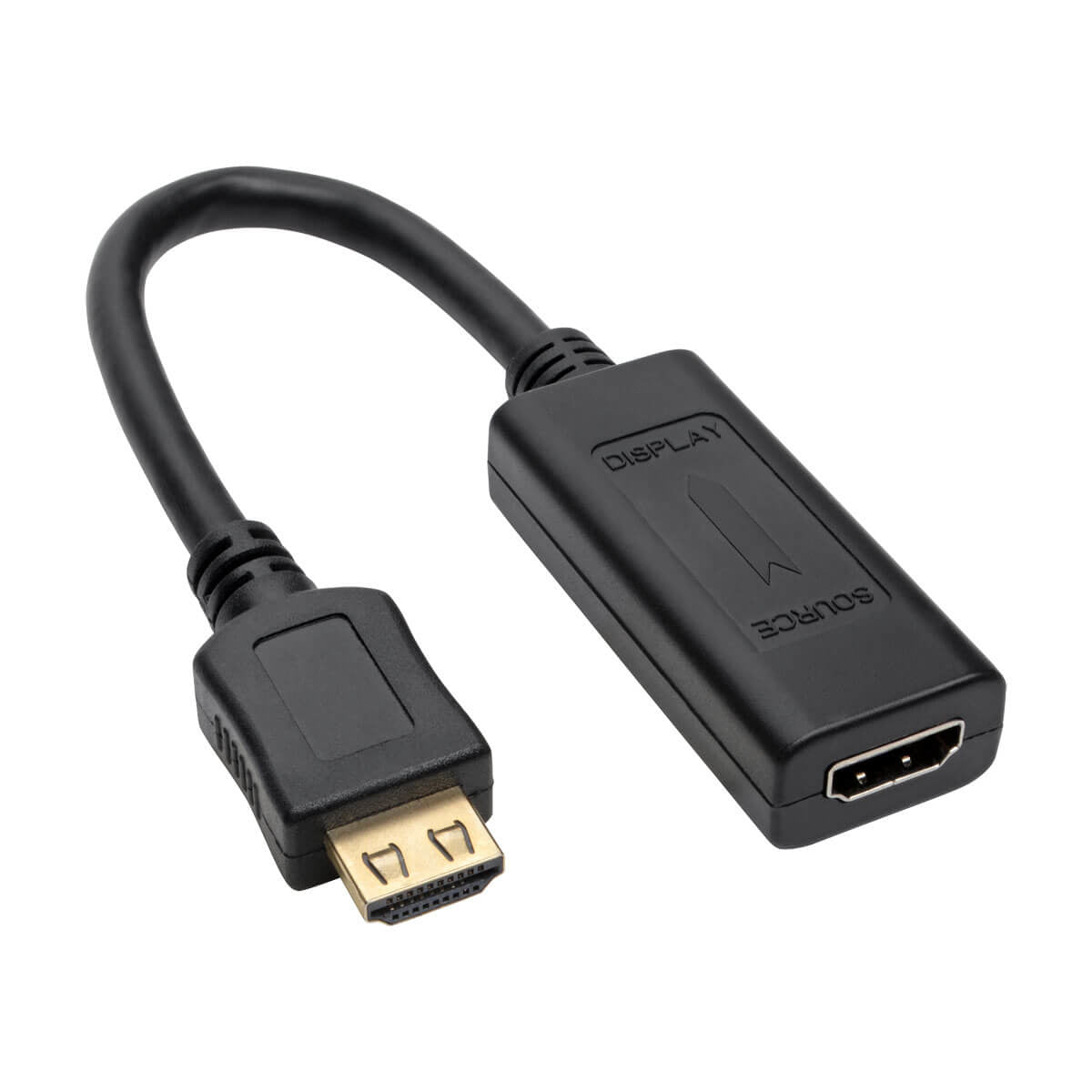

B123-001 - Tripp Lite 1FT HDMI ACTIVE SIGNAL EXTENDER CABLE HDMI 24HZ M/F 1FT TAA GSA

Tripp Lite's B123-001 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16-ft. (4.88 m). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, at a maximum distance of 150-ft. (45.72 m) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100-ft. (30.5 m) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001, and then connect the built-in cable to the monitor. The built-in HDMI cable features a latching connector for a more secure connection. Software or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150-ft. (45.72 m) from the source Use P568-Series HDMI cables in most applications Built-in HDMI cable features a latching connector for a more secure connection When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75-ft. (22.86 m), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100-ft. (30.5 m) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50-ft. (15.24 m). A 3D signal can be extended up to 125-ft. (38.1 m) using 24Awg HDMI cable Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio HDCP compliant No software or drivers required No external power required in most installations Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases



Specification:



Features
Maximum resolution	1920 x 1080 pixels
Maximum transfer distance	1500" (38.1 m)
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Product colour	Black
Power
External power adapter	Yes
Operating voltage	5 V
Current	2 A
Packaging data
Package depth	6.1" (154.9 mm)
Package width	4.6" (116.8 mm)
Package height	1.3" (33 mm)
Package weight	4.94 oz (140 g)
Technical details
Country of origin	Taiwan
Logistics data
Master (outer) case width	6.5" (165.1 mm)
Master (outer) case length	13.4" (340.4 mm)
Master (outer) case height	5.4" (137.2 mm)
Master (outer) case gross weight	30.3 oz (860 g)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332171181
