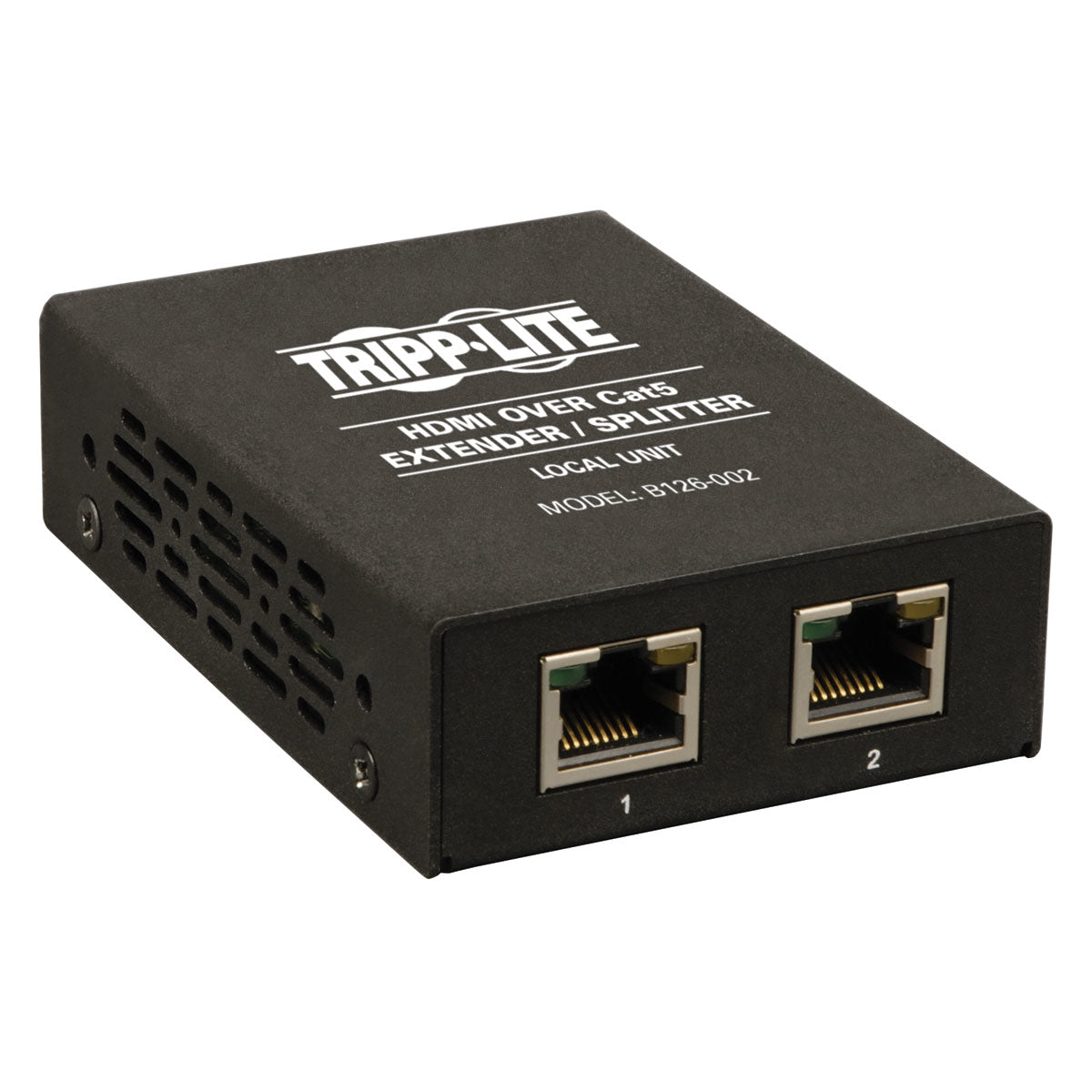

B126-002-INT - Tripp Lite 2-PORT HDMI OVER CAT5/CAT6 VIDEO EXTENDER / SPLITTER INTL POWER

The B126-002-INT 2-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into two separate signals. It’s ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite’s P568-Series) to connect to the source and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). When used with Tripp Lite’s B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 61 m, a 1080p signal (60 Hz) up to 45.7 m and a 3D signal up to 38.1 m. With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 30.5 m and a 1080p (60 Hz) signal up to 15.2 m. Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays. In addition to high-definition video, the B126-002-INT delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Extends High-Definition Signals ● Extends a 1080i (60 Hz) signal up to 53 m, a 1080p (60 Hz) signal up to 38 m and a 3D signal up to 30 m with each optional Tripp Lite B126-110 remote repeater ● Extends a 1080i (60 Hz) signal up to 61 m, a 1080p (60 Hz) signal up to 46 m and a 3D signal up to 38 m with Tripp Lite B126-1A0 or B126-1A0-WP-1 active remote receiver ● Extends a 1080i (60 Hz) signal up to 31 m and a 1080p (60 Hz) signal up to 15 m with Tripp Lite B126-1P0 or B126-1P0-WP-1 passive remote receiver ● Add up to 3 remote repeaters on each channel for maximum signal range ● Connects to next link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series) Supports the Latest Video and Audio Resolutions ● Works with all operating systems and HDMI video sources ● Supports HD resolutions up to 1080p (60 Hz) ● Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio ● Supports 24-bit True Color (8 bits per channel) and HDCP Easy to Set Up and Use ● Plug-and-play engineering—no software or drivers to download and install ● Connects quickly to source with HDMI cable, such as Tripp Lite’s P568-Series ● LEDs indicate at a glance when the unit is receiving power and an HDMI signal from the source ● Included mounting hardware lets you install the unit on a wall, rack or pole ● International power supply with CEE 7/16 Schuko, BS1363 UK and AS2112 Australia plugs ● Perfect for digital signs, trade shows and retail settings ● Supports high-definition video resolutions up to 1080p (60 Hz) ● Supports stereo and 7.1-channel surround sound audio ● Works with all operating systems and HDMI video sources ● Plug and play—no software or drivers to install Package Includes ● B126-002-INT 2-Port HDMI over Cat5/Cat6 Extender/Splitter ● External power supply w/CEE 7/16 Schuko, BS1363 UK and AS2112 Australia plugs (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A) ● Mounting hardware ● Owner’s manual Batteries not Required to Operate



Specification:



Ports & interfaces
Video ports quantity	2
Video port type	HDMI
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
Connector(s)	RJ45 (FEMALE) (X4), HDMI (FEMALE) (X2)
Cable types supported	Cat5, Cat6
Ethernet LAN	Yes
Features
Rack mounting	Yes
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Maximum resolution	1920 x 1200 pixels
Full HD	Yes
HDCP	Yes
Supported video modes	1080p
Plug and Play	Yes
Maximum operating distance	1771.7" (45 m)
Product colour	Black
Certification	RoHS
3D	Yes
Country of origin	Taiwan
Network
Cable types supported	Cat5, Cat6
Ethernet LAN	Yes
Power
Output current	2 A
Output voltage	5 V
AC input frequency	50 - 60 Hz
AC input voltage	100-240 V
Weight & dimensions
Dimensions (WxDxH)	5 x 4 x 11.3" (127 x 101.6 x 286 mm)
Package weight	27.2 oz (770 g)
Package depth	6.4" (162.6 mm)
Package width	8.3" (210.8 mm)
Package height	2" (50.8 mm)
Packaging data
Package weight	27.2 oz (770 g)
Package depth	6.4" (162.6 mm)
Package width	8.3" (210.8 mm)
Package height	2" (50.8 mm)
Packaging content
AC adapter included	Yes
Manual	Yes
Cables included	HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Video
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Maximum resolution	1920 x 1200 pixels
Full HD	Yes
HDCP	Yes
Supported video modes	1080p
3D	Yes
Colour
Product colour	Black
Certificates
Certification	RoHS
Technical details
Rack mounting	Yes
Package width	8.3" (210.8 mm)
Package height	2" (50.8 mm)
Plug and Play	Yes
Maximum operating distance	1771.7" (45 m)
Logistics data
Master (outer) case width	22.4" (569 mm)
Master (outer) case length	9" (228.6 mm)
Master (outer) case height	6.9" (175.3 mm)
Master (outer) case gross weight	17.3 lbs (7.85 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332157512
Harmonized System (HS) code	8525.50.3035
Country of origin	Taiwan
