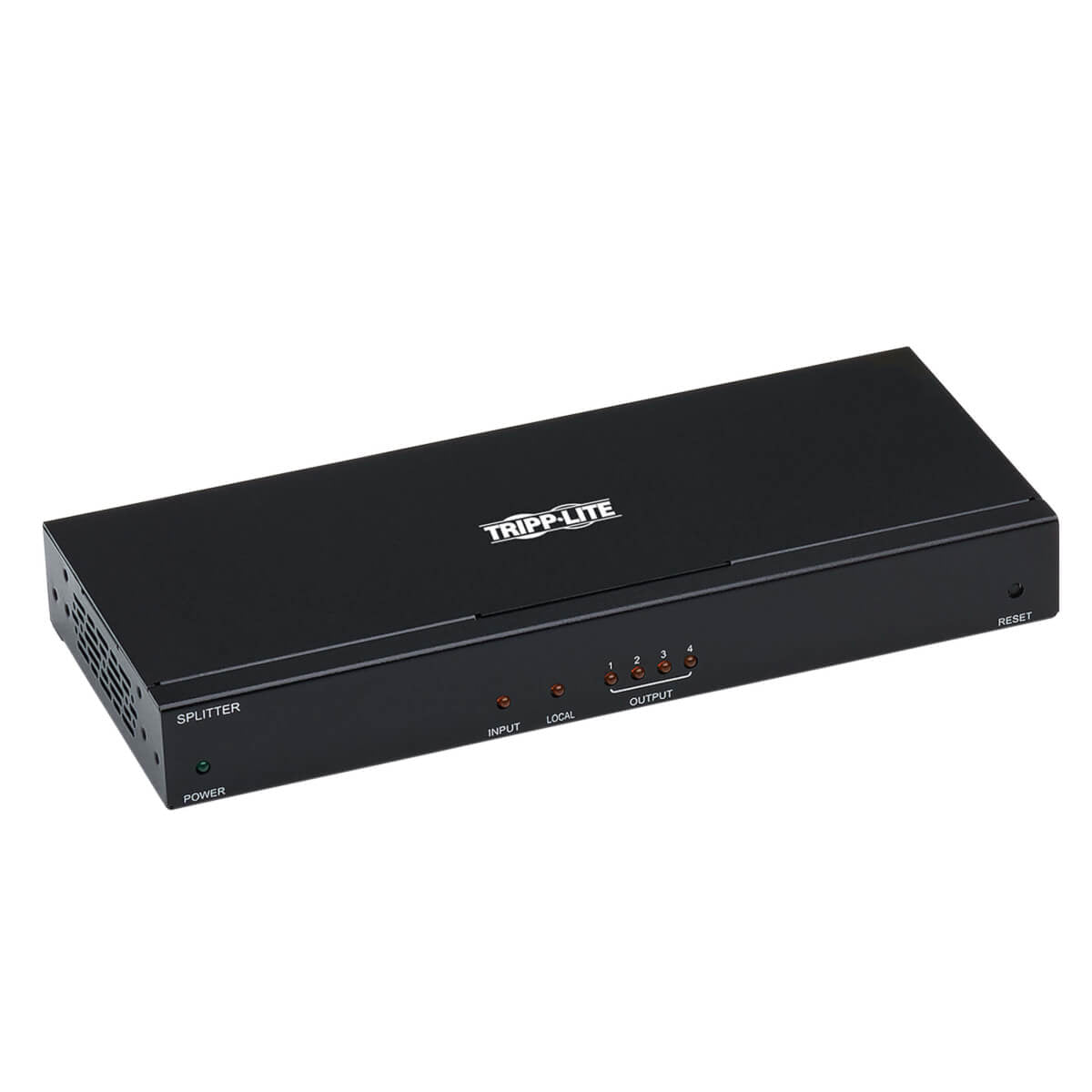

B127-004-H - Tripp Lite HDMI OVER CAT6 SPLITTEREXTENDER WITH POC, 4 PORTS 4K X 2K @ 60 HZ, 4:4:4, 125 F

Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths This four-port transmitter/splitter is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-004-H extends 4K video and stereo audio signals from an HDMI source device to four HDMI displays up to 125 feet (38 meters) away via user-supplied Cat6 cabling. Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color The B127-004-H supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified in HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. This transmitter carries HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. This unit supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks Built-in Power over Cable (PoC) technology powers the connected B127-100-H or B127-100-H-SR receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to transfer power to the remote receivers and place them away from an AC outlet. Daisy-Chain Multiple Transmitters to Add More Displays An HDMI output is included for connecting up to three additional B127-004-H transmitters, each of which splits the original HDMI signal into four. You can also connect an optional display to monitor the image connected to the receivers up to 125 feet away. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then, connect the transmitter to Tripp Lite B127-100-H or B127-100-H-SR remote receivers using Cat6 patch cable (such as Tripp Lite N202-Series cable). TAA-Compliant for GSA Schedule Purchases The B127-004-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Features
Material	Metal
HDCP	Yes
Colour depth	24 bit
Audio output channels	7.1 channels
Rack mounting	Yes
Maximum refresh rate	60 Hz
Certification	CE, FCC, REACH
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	1500" (38.1 m)
LED indicators	Yes
Product colour	Black
Extended display identification data (EDID)	Yes
HDCP version	2.2
Ports & interfaces
Ethernet LAN	Yes
RJ-45 input ports	4
RJ-45 output ports	1
HDMI in	2
Number of HDMI outputs	1
HDMI version	2.0
Connectivity technology	Wired
Power
Input current	1.5 A
Output current	2 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	Yes
Operating voltage	24 V
Operational conditions
Storage relative humidity (H-H)	0 - 85%
Operating relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-15 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Packaging data
Package type	Box
Package depth	6.3" (160 mm)
Package width	13.7" (348 mm)
Package height	4.17" (105.9 mm)
Package weight	4.81 lbs (2.18 kg)
Packaging content
Mounting kit	Yes
AC adapter included	Yes
Manual	Yes
Technical details
Country of origin	Taiwan
Sustainability certificates	RoHS
Logistics data
Master (outer) case width	23.1" (588 mm)
Master (outer) case length	15.2" (385.1 mm)
Master (outer) case height	7.2" (182.9 mm)
Master (outer) case gross weight	25.8 lbs (11.7 kg)
Products per master (outer) case	5 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332239089
