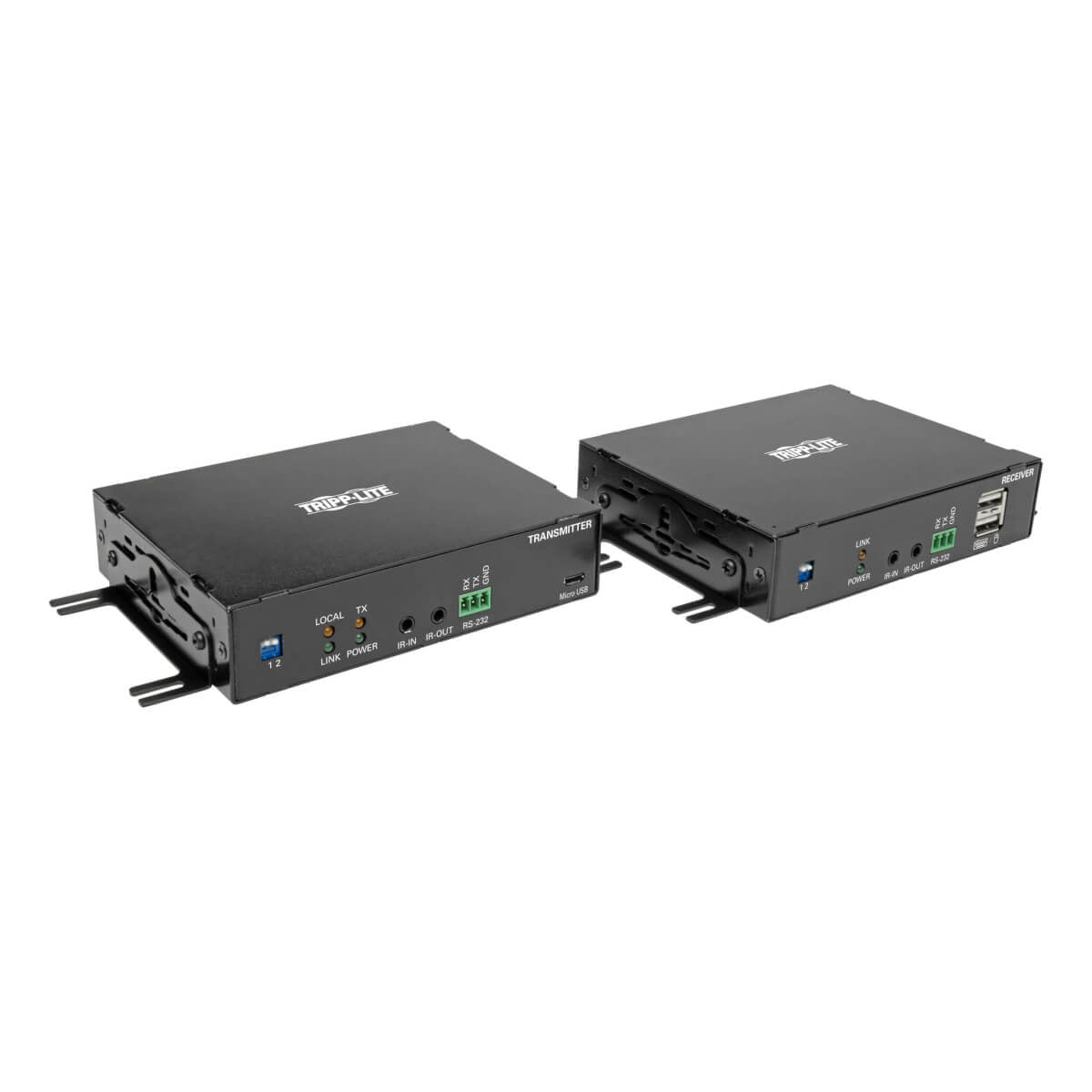

B127F-1A1-SM-DD - Tripp Lite DISPLAYPORT OVER FIBER EXTENDER KIT - 4K 30 HZ, RS-232, IR, USB, DUPLEX SINGLEMO

DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show Booths This complete transmitter and receiver system is recommended for video presentations in digital signage applications where the source and display are farther apart than conventional A/V cables allow, such as airports, outdoor arenas and schools. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling. Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 30 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. This extender kit is compatible with HDCP 2.2, DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. DIP Switches Extend Your Choice of USB, IR or RS-232 Signals The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite’s P580-Series). Then, connect the two units using a duplex singlemode LC fiber cable (Tripp Lite N320-Series). Connect an optional display to the transmitter’s local HDMI output to monitor the image connected to the receiver up to 6.2 miles away. The local port lets you connect displays with different resolutions without affecting the 4K signal transmission. TAA-Compliant for GSA Schedule Purchases The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Features
HDCP	Yes
Colour depth	36 bit
Audio output channels	7.1 channels
Rack mounting	Yes
Electrostatic Discharge (ESD) protection	8 kV
3D	Yes
Type	AV repeater
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6, HDMI
Maximum transfer distance	2755.9" (70 m)
Audio system	Multichannel
LED indicators	Yes
Cable length	54.4" (1.38 m)
Product colour	Black
Extended display identification data (EDID)	Yes
Electrostatic Discharge (ESD) protection	Yes
HDCP version	1.4/2.2
Ports & interfaces
Ethernet LAN	Yes
RJ-45 output ports	4
HDMI in	1
Number of HDMI outputs	1
HDMI version	2.0
DC-in jack	Yes
Connectivity technology	Wired
Power
Input current	0.6 A
Output current	1 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Operating voltage	24 V
Operational conditions
Storage relative humidity (H-H)	0 - 85%
Operating relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-5 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	12.8" (325 mm)
Height	1.17" (29.7 mm)
Depth	3.94" (100 mm)
Weight	22.9 oz (650 g)
Packaging data
Package type	Box
Package depth	6.46" (164.1 mm)
Package width	13.9" (352 mm)
Package height	2.17" (55.1 mm)
Package weight	2.27 lbs (1.03 kg)
Quantity per pack	1 pc(s)
Packaging content
Mounting kit	Yes
Cables included	AC
AC adapter included	Yes
Manual	Yes
Included power plug types	AU, EU, NA, UK
Technical details
Country of origin	Taiwan
Sustainability compliance	Yes
Sustainability certificates	CE, REACH, RoHS
Logistics data
Master (outer) case width	23.1" (586 mm)
Master (outer) case length	14.8" (374.9 mm)
Master (outer) case height	7.76" (197.1 mm)
Master (outer) case gross weight	24.5 lbs (11.1 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332262575
