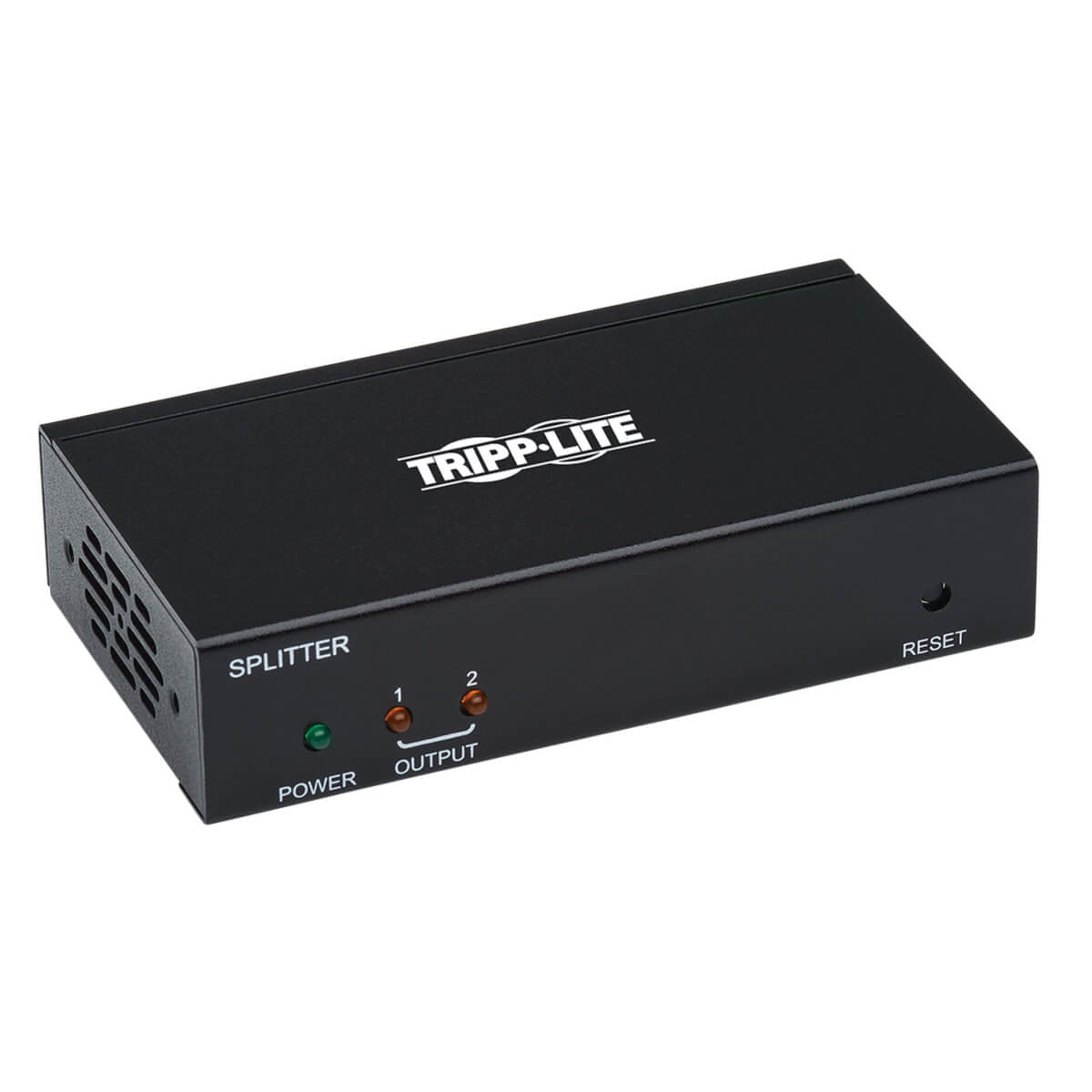

B127P-002-H - Tripp Lite HDMI OVER CAT6 SPLITTER/EXTENDER POC AND MULTI-RESOLUTION SUPPORT, 2 PORTS - 4K

Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths This two-port transmitter/splitter is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127P-002-H extends 4K (at 60Hz)video and stereo audio signals from an HDMI source device to two HDMI displays up to 125 feet (38.1 meters) away via user-supplied Cat6 cabling. It can also extend a 4K HDMI signal (at 30 Hz) up to 150 feet (45.7 meters) and a 1080p HDMI signal (at 60 Hz) up to 200 feet (61 meters) using Tripp Lite's B127P-100-H receiver. Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color The B127P-002-H supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified in HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. This transmitter is capable of carrying HDR signals, which provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. It supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions Say you have a brand new 4K (at 60 Hz) HDTV in the living room, but want to also connect your Blu-ray player or satellite box to the older 1080p TV in the bedroom. The B127P-002-H is backward compatible with 4K (at 30 Hz) and 1080p (at 60 Hz) resolutions via automatic switching. This splitter allows each connected television to display video at its maximum resolution. Most other splitters default all displays to the lowest common resolution (meaning you would only get a 1080p image on that new 4K TV). Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks Built-in Power over Cable (PoC) technology powers the connected B127P-100-H or B127P-100-H-SR receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to transfer power to the remote receivers and place them away from an AC outlet. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite’s P568- or P569-Series). Then, connect the transmitter to Tripp Lite B127P-100-H or B127P-100-H-SR remote receivers using Cat6 patch cable (such as Tripp Lite N202-Series cable). TAA-Compliant for GSA Schedule Purchases The B127P-002-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Features
Material	Metal
HDCP	Yes
Audio output channels	7.1 channels
Rack mounting	Yes
Maximum refresh rate	60 Hz
Certification	CE, FCC, REACH
Type	AV transmitter
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	1496.1" (38 m)
Audio system	Multichannel
Supported video modes	2160p
LED indicators	Yes
Product colour	Black
Extended display identification data (EDID)	Yes
HDCP version	2.2
Ports & interfaces
Ethernet LAN	Yes
RJ-45 output ports	4
HDMI in	1
Number of HDMI outputs	1
HDMI version	2.0
DC-in jack	Yes
Connectivity technology	Wired
Power
Input current	1.5 A
Output current	2 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
External power adapter	Yes
Operating voltage	24 V
Operational conditions
Storage relative humidity (H-H)	0 - 85%
Operating relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-15 - 50 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Transmitter weight	22.9 oz (650 g)
Packaging data
Package type	Blister
Package depth	6.46" (164.1 mm)
Package width	13.9" (352 mm)
Package height	2.17" (55.1 mm)
Package weight	2.27 lbs (1.03 kg)
Packaging content
Mounting brackets included	Yes
AC adapter included	Yes
Manual	Yes
Included power plug types	AU, EU, NA, UK
Technical details
Country of origin	Taiwan
Sustainability certificates	RoHS
Logistics data
Master (outer) case GTIN (EAN/UPC)	10037332239195
