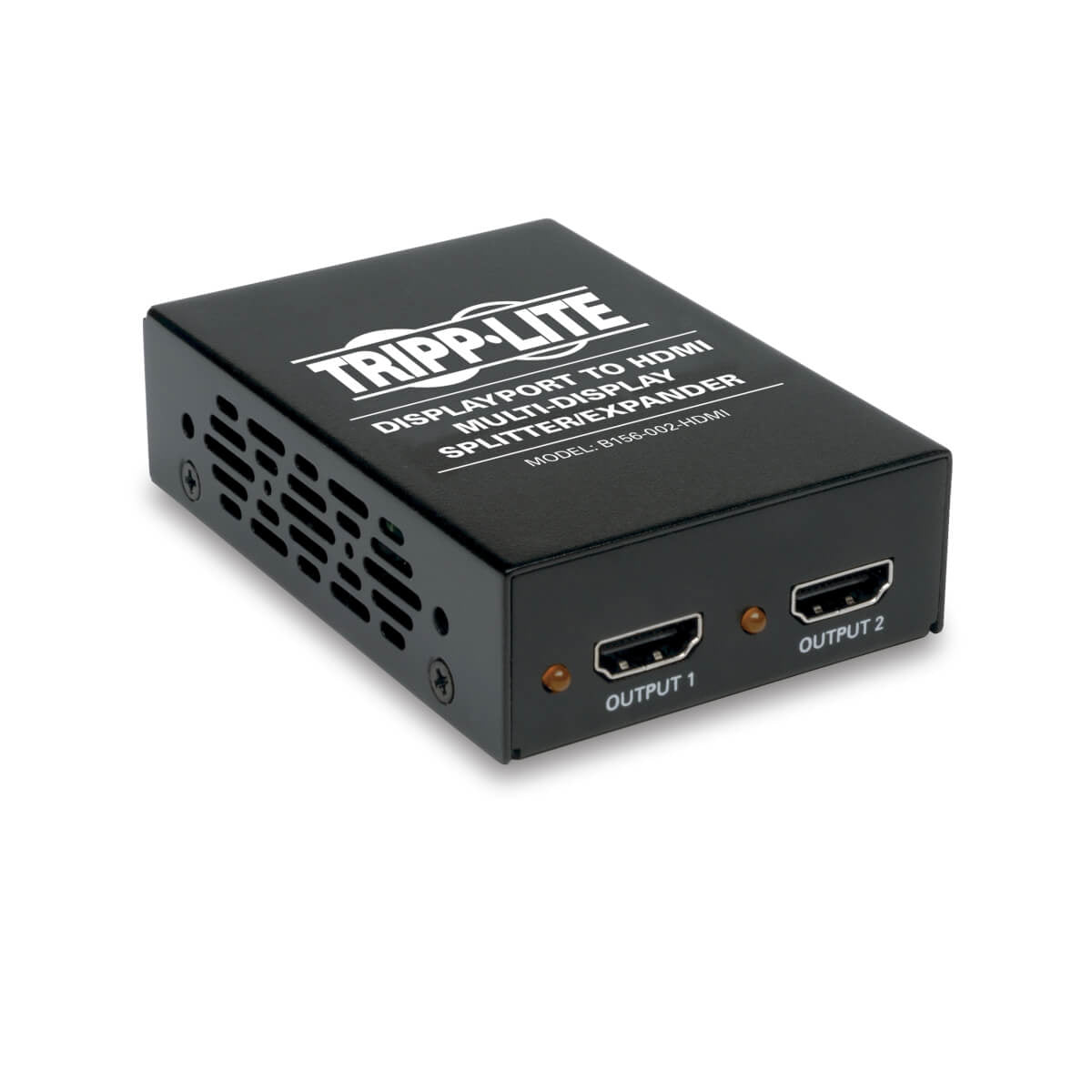

B156-002-HDMI - Tripp Lite 2-PORT DISPLAYPORT TO HDMI SPLITTER MULTI-DISPLAY ADAPTER TAA

Get everyone’s attention by broadcasting awesome messages in ultra-high definition video! With Tripp Lite's B156-002-HDMI 2-Port DisplayPort 1.2 to HDMI MST Hub, you can split or expand a single DisplayPort signal into two separate signals and display them on two HDMI monitors using standard DisplayPort (Tripp Lite P580-Series or P583-Series) and HDMI (Tripp Lite P568-Series) cables. You can display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor. The B156-002-HDMI supports 4Kx2K Ultra-High Definition (UHD) video resolutions up to 3840 x 2160 (60 Hz), 48-bit Deep Color (16 bits per channel), and is compatible with HDCP, EDID and DDC. It comes with an external power supply and brackets for wall-, rack- or pole-mounting. All mounting hardware is included.
Splitting, Extending, Multi-Display
● Splits or expands a DisplayPort audio/video signal on two HDMI monitors ● Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one, enlarged monitor ● Supports both 4Kx2K (3840 x 2160 at 60 Hz) UHD video and standard 1080p (1920x1080 at 60 Hz) high-definition video
Video Standards and Protocols
● Supports up to 48-bit Deep Color (16 bits per channel) and video resolutions up to 4K Ultra High Definition (UHD), 3840 x 2160 @ 60 Hz ● Complies with HDCP, EDID and DDC ● Compatible with DisplayPort 1.2 ● Compatible with Apple® Thunderbolt connectors
Installation
● Plug-and-play; no software or drivers required ● Easy to install; connect the DisplayPort video source to the hub's input port, connect the external power supply and finally connect the two HDMI monitors to the output ports
Mounting Options
● Wall-, rack- or pole-mounting; all mounting hardware is included System Requirements ● A computer with a DisplayPort v1.2 compatible Graphics Card (e.g. AMD Radeon with AMD Eyefinity technology) is required to display in video wall mode. ● Mac OS X does not support MST for NVIDIA and Intel Graphics Processor Units, limiting video display on the connected monitors to mirror mode. ● Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers, with the feature set being limited to that of your equipment (e.g. you may be limited to displaying in Clone / Mirror Mode only). Compatibility with older graphics cards is not guaranteed. ● Maximum supported video resolutions and number of monitors will be dependent upon your graphics card. Check the specifications of your graphics card to determine its capabilities. ● A monitor with a HDMI port. ● For international use, a power supply with the appropriate plug type must be purchased separately.



Specification:



Ports & interfaces
Video ports quantity	2
Video port type	DisplayPort
Video out	2x DisplayPort
Connector(s)	DISPLAYPORT (MALE), (2) DISPLAYPORT (FEMALE)
Cable length	5.91" (0.15 m)
Features
Dolby technologies	DTS-HD, Dolby TrueHD
Colour depth	48 bit
Maximum resolution	3840 x 2160 pixels
Full HD	Yes
HD-Ready	Yes
HDCP	Yes
Plug and Play	Yes
Easy to install	Yes
Product colour	Black
Certification	CE, FCC, RoHS, REACH
Cable length	5.91" (0.15 m)
Country of origin	Taiwan
Weight & dimensions
Weight	3.17 oz (90 g)
Dimensions (WxDxH)	3 x 1 x 2.42" (76.2 x 25.4 x 61.5 mm)
Package weight	6.35 oz (180 g)
Package depth	5.59" (142 mm)
Package width	1.73" (43.9 mm)
Package height	7.87" (199.9 mm)
Packaging data
Package weight	6.35 oz (180 g)
Package depth	5.59" (142 mm)
Package width	1.73" (43.9 mm)
Package height	7.87" (199.9 mm)
Packaging content
Manual	Yes
Cables included	Micro-USB
Video
Colour depth	48 bit
Maximum resolution	3840 x 2160 pixels
Full HD	Yes
HD-Ready	Yes
HDCP	Yes
Colour
Product colour	Black
Certificates
Certification	CE, FCC, RoHS, REACH
Technical details
Dolby technologies	DTS-HD, Dolby TrueHD
Supported audio channels	7.1
Package width	1.73" (43.9 mm)
Package height	7.87" (199.9 mm)
Video out	2x DisplayPort
Plug and Play	Yes
Easy to install	Yes
Logistics data
Master (outer) case width	6.02" (152.9 mm)
Master (outer) case length	8.39" (213.1 mm)
Master (outer) case height	17.9" (455.9 mm)
Master (outer) case gross weight	4.74 lbs (2.15 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332193367
Harmonized System (HS) code	8525.50.3035
Country of origin	Taiwan
