B156-004-HD-V2 - Tripp Lite 4-PORT DISPLAYPORT TO HDMI MULTI STREAM TRANSPORT HUB 4KX2K TAA

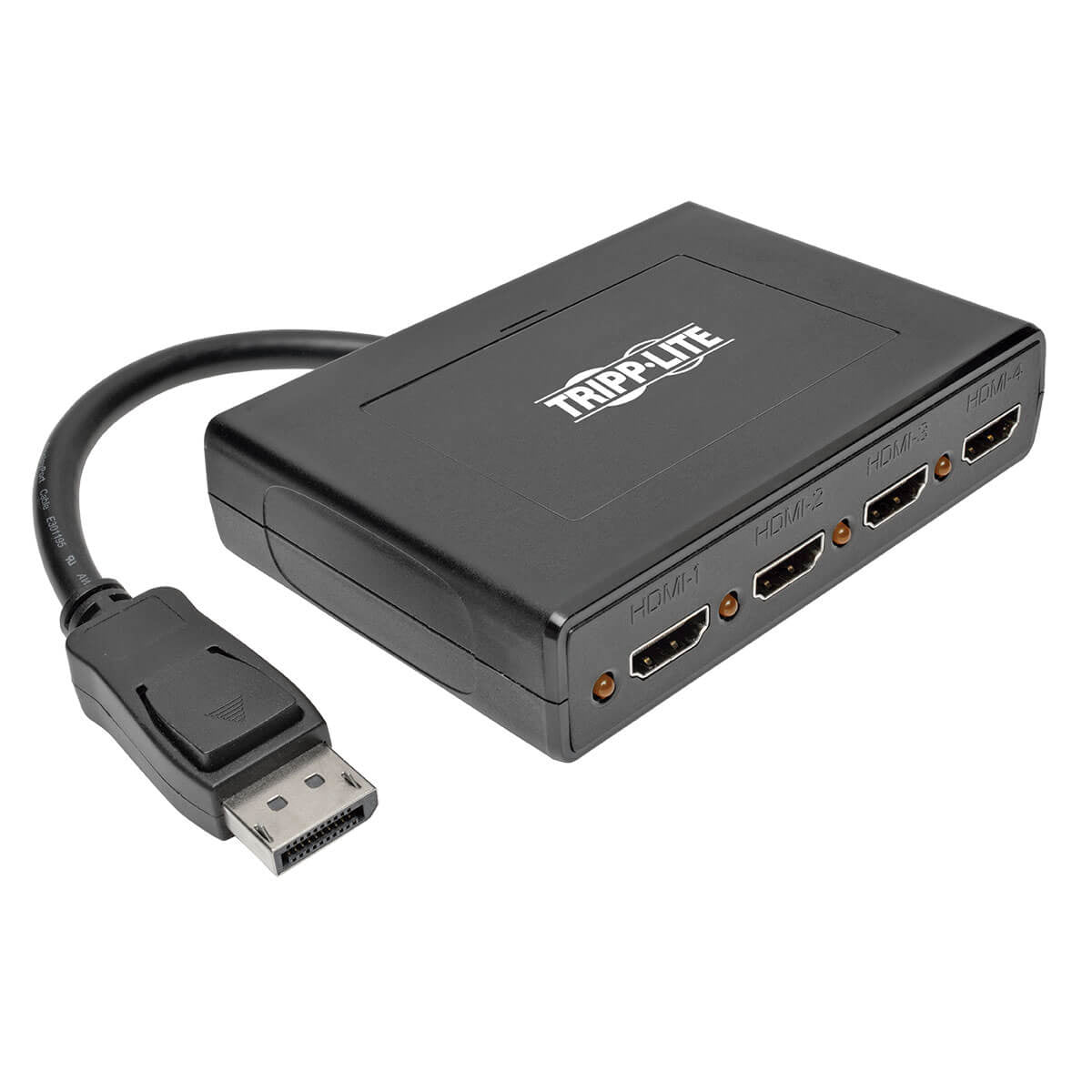

The B156-004-HD-V2 4-Port DisplayPort 1.2 to HDMI MST Hub connects up to four HDMI monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four as one large monitor in video wall mode. The B156-004-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 per monitor. In video wall mode, it supports expanded resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-004-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Connects Up to 4 HDMI Monitors to Your Computer’s DisplayPort Output - Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings - Displays same image on 4 monitors simultaneously in mirror mode - Extends desktop across 4 monitors in extended mode - Combines 4 monitors into one large monitor in video wall mode - Built-in 6 in. cable connects directly to DisplayPort source - LEDs indicate when monitors are receiving a signal Meets the Latest Performance Standards Supports HD video resolutions up to 1920 x 1080 per monitor Supports expanded resolutions in video wall mode, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration Supports HDCP, EDID and DDC Supports 48-bit Deep Color (16 bits per channel) Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio Easy to Use Almost Anywhere Works with all operating systems Plug and play—no software or drivers required TAA Compliant Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases



Specification:



Ports & interfaces
Video ports quantity	4
Video port type	DisplayPort
Video out	4x DisplayPort
Features
Dolby technologies	DTS-HD, Dolby TrueHD
Colour depth	48 bit
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160
Full HD	Yes
HDCP	Yes
Plug and Play	Yes
Easy to install	Yes
Product colour	Black
Certification	CE, FCC, RoHS,REACH
Country of origin	Taiwan
Power
Input current	0.5 A
Output current	2 A
Output voltage	5 V
AC input frequency	50 - 60 Hz
AC input voltage	100-240 V
Packaging data
Package weight	14.5 oz (410 g)
Package depth	8.4" (213.4 mm)
Package width	6.3" (160 mm)
Package height	2.2" (55.9 mm)
Video
Colour depth	48 bit
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160
Full HD	Yes
HDCP	Yes
Colour
Product colour	Black
Certificates
Certification	CE, FCC, RoHS,REACH
Technical details
Dolby technologies	DTS-HD, Dolby TrueHD
Supported audio channels	7.1
Package width	6.3" (160 mm)
Package height	2.2" (55.9 mm)
Video out	4x DisplayPort
Plug and Play	Yes
Easy to install	Yes
Weight & dimensions
Package weight	14.5 oz (410 g)
Package depth	8.4" (213.4 mm)
Package width	6.3" (160 mm)
Package height	2.2" (55.9 mm)
Logistics data
Master (outer) case width	6.9" (175.3 mm)
Master (outer) case length	22.5" (571.5 mm)
Master (outer) case height	9" (228.6 mm)
Master (outer) case gross weight	8.8 lbs (3.99 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332193206
Harmonized System (HS) code	8525.50.3035
Country of origin	Taiwan
