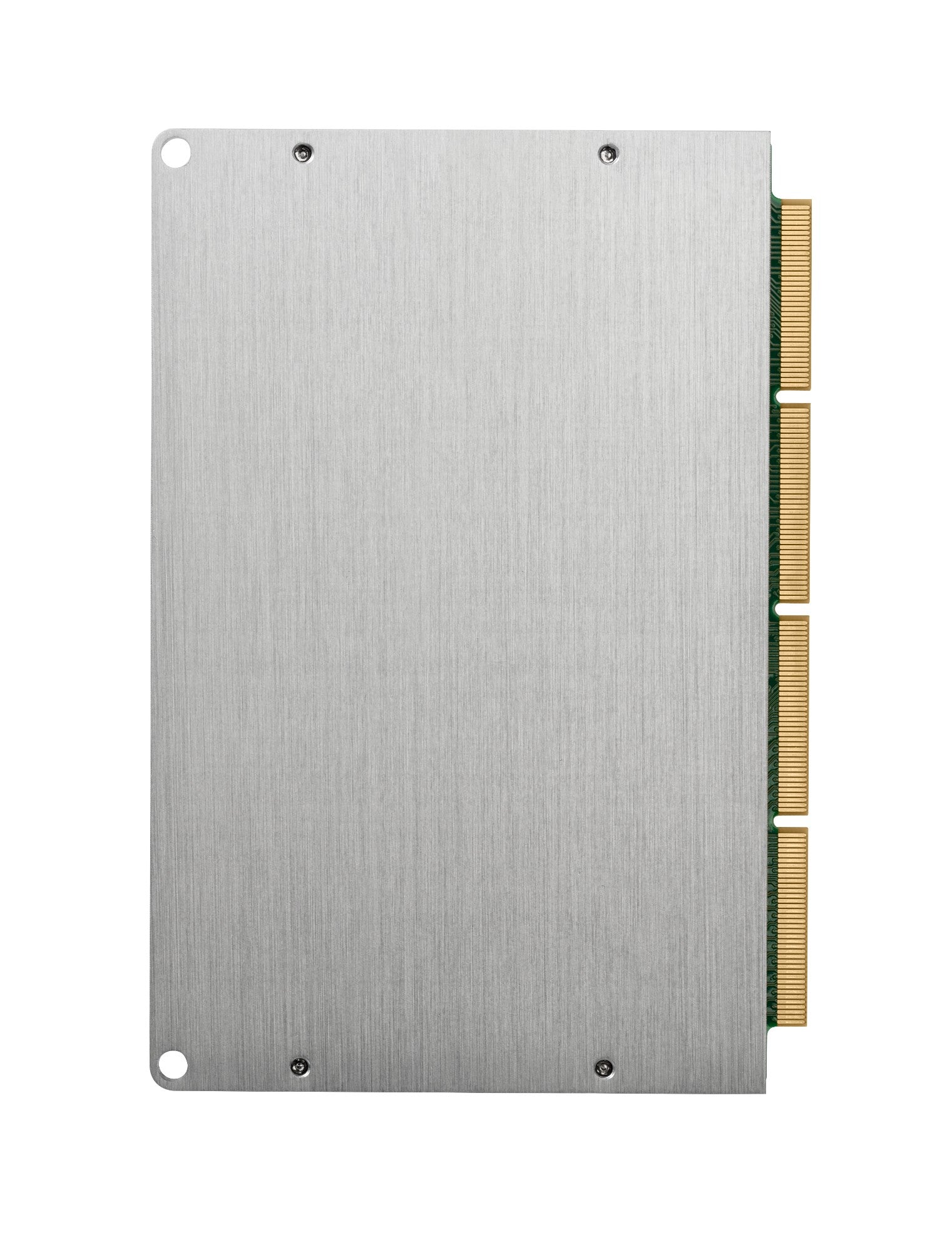

BKCM11EBI38W - Intel NUC COMPUTE ELEMENT CM11EBI38W
BKCM11EBI38W - Intel NUC COMPUTE ELEMENT CM11EBI38W
SKU:BKCM11EBI38W
Regular price
$397.07 USD
Regular price
Sale price
$397.07 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Intel NUC 11 CM11EBi38W. Processor family: Intel® Core™ i3, Processor manufacturer: Intel, Processor model: i3-1115G4. Internal memory: 8 GB, Internal memory type: LPDDR4x, Memory clock speed: 4266 MHz. On-board graphics card model: Intel® UHD Graphics, On-board graphics card family: Intel® UHD Graphics. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Export Control Classification Number (ECCN): 5A992C, Commodity Classification Automated Tracking System (CCATS): G157815L2
Â
Specification:
Â
| Processor | |
|---|---|
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor threads | 8 |
| Processor lithography | 10 nm |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 0.9 GHz |
| Memory types supported by processor | LPDDR4x-SDRAM |
| Configurable TDP-up frequency | 2.4 GHz |
| Configurable TDP-up | 28 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | LPDDR4x |
| Memory clock speed | 4266 MHz |
| ECC | No |
| Supported memory types | LPDDR4x-SDRAM |
| Memory channels | Dual-channel |
| Graphics | |
| On-board graphics card | No |
| Discrete graphics card | No |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
| Number of displays supported | 4 |
| Number of displays supported (on-board graphics) | 4 |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
| Performance | |
| ARK ID | 212015 |
| Harmonized System (HS) code | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Status | Launched |
| Software | |
| Compatible operating systems | Windows 10, 64-bit*|Windows 10 IoT Enterprise*|Linux* |
| Processor special features | |
| Intel® vPro™ Platform Eligibility | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel ME Firmware Version | 15 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
