Intel

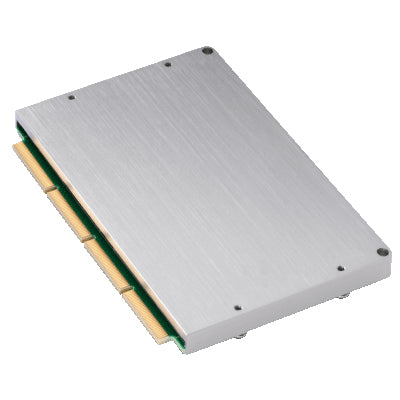

BKCM8I3CB4N - Intel NUC 8 PRO COMPUTE ELEMENT CM8I3CB I3, 4G
BKCM8I3CB4N - Intel NUC 8 PRO COMPUTE ELEMENT CM8I3CB I3, 4G
SKU:BKCM8I3CB4N
Regular price
$326.00 USD
Regular price
Sale price
$326.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Intel BKCM8I3CB4N. Processor frequency: 2.1 GHz, Processor family: Intel® Core™ i3, Processor model: i3-8145U. Internal memory: 4 GB, Internal memory type: LPDDR3, Memory clock speed: 2133 MHz. On-board graphics card model: Intel® UHD Graphics. Wi-Fi standards: Wi-Fi 5 (802.11ac). Export Control Classification Number (ECCN): 5A992C, Commodity Classification Automated Tracking System (CCATS): G157815L2
Â
Specification:
Â
| Processor | |
|---|---|
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor frequency | 1.6 GHz |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-8265U |
| Processor cores | 4 |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 6 MB |
| Processor threads | 8 |
| Processor lithography | 14 nm |
| Bus type | OPI |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Memory types supported by processor | LPDDR3-SDRAM |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | LPDDR3 |
| Memory clock speed | 2133 MHz |
| ECC | No |
| Supported memory types | LPDDR3-SDRAM |
| Memory channels | Dual-channel |
| Storage | |
| Card reader integrated | No |
| Graphics | |
| On-board graphics card | No |
| Discrete graphics card | No |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported | 3 |
| Number of displays supported (on-board graphics) | 3 |
| Graphics output | 2x DDI (configurable as DP/HDMI), 1x eDP |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Performance | |
| Harmonized System (HS) code | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Status | Launched |
| Software | |
| Compatible operating systems | Windows 10, 64-bit*|Windows 10 IoT Enterprise* |
| Processor special features | |
| Intel® vPro™ Platform Eligibility | No |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Weight & dimensions | |
| Width | 3.74" (95 mm) |
| Depth | 0.236" (6 mm) |
| Height | 2.56" (65 mm) |
| Packaging content | |
| Processor included | Intel® Core™ i5-8265U Processor (6M Cache, up to 3.90 GHz) |
