Description

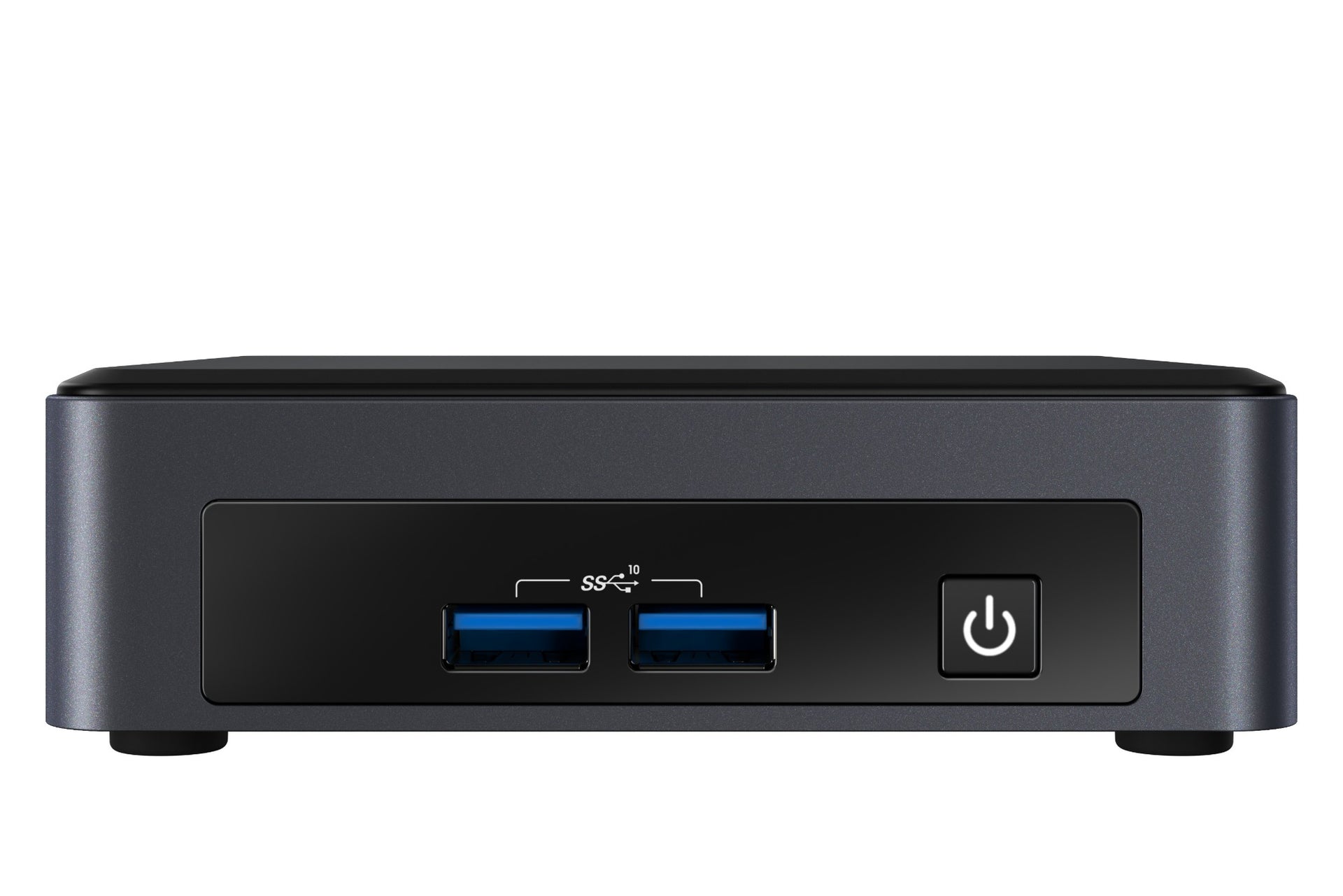

Intel NUC BKNUC8I3PNK. Chassis type: UCFF, Product type: Mini PC barebone. Processor socket: BGA 1528, BIOS type: EEPROM. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: M.2, RAID levels: 0, 1. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 5 (802.11ac), Bluetooth version: 5.0. Cooling type: Passive. Power supply: 90 W
Â
Specification:
Â
| Technical details | |
|---|---|
| Number of displays supported | 3 |
| Motherboard chipset family | Intel |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Serial port via internal header | Yes |
| Serial port headers | 1 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Number of DIMM slots | 2 |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| HDMI version | 2.0a |
| Motherboard form factor | UCFF |
| Component for | mini PC |
| Graphics output | Dual HDMI 2.0a, DP 1.2 via Type C, 4-lane eDP 1.4 |
| USB ports quantity | 4 |
| Product type | Desktop Board |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Status | Launched |
| Launch date | Q1'20 |
| Intel Virtualization Technology (VT-x) | Yes |
| Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Maximum memory | 64 GB |
| M.2 card slot (wireless) | 2230 (E-key) |
| M.2 card slot (storage) | 2280 (M-key) |
| Form factor | UCFF (4" x 4") |
| Performance | |
| Number of HDDs supported | 1 |
| HDD size | 2.5" |
| Supported storage drive types | HDD & SSD |
| Motherboard ARK ID | 199146 |
| Motherboard chipset family | Intel |
| RAID levels | 0,1 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows operating systems supported | Windows 11 x64,Windows 10 x64,Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux,Ubuntu 18.04 LTS |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Motherboard form factor | UCFF |
| Component for | mini PC |
| Processor | |
| Processor manufacturer | Intel |
| Processor frequency | 1.6 GHz |
| Processor cores | 4 |
| Processor model | i5-8365U |
| Processor family | Intel® Core™ i5 |
| Processor lithography | 14 nm |
| Lithography | 14 nm |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC | No |
| Supported memory clock speeds | 2400 MHz |
| Maximum internal memory | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 1 |
| HDD size | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA |
| RAID levels | 0,1 |
| Number of storage drives supported | 2 |
| SSD form factor | M.2 |
| Graphics | |
| Number of displays supported | 3 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Graphics card family | Intel |
| Graphics card | UHD Graphics 620 |
| Internal I/O | |
| Supported storage drive interfaces | M.2,SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Serial port via internal header | Yes |
| Serial port headers | 1 |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI version | 2.0a |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219-LM |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| DC input voltage | 12 - 24 V |
| Motherboard ARK ID | 199146 |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 x64,Windows 10 x64,Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux,Ubuntu 18.04 LTS |
| Compatible operating systems | Windows 10, 64-bit*|Windows 10 IoT Enterprise*|Linux* |
| Motherboard form factor | UCFF |
| Component for | mini PC |
| Harmonized System (HS) code | 8471500150 |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Power | |
| DC input voltage | 12 - 24 V |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Ports & interfaces | |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Video | |
| Graphics card family | Intel |
| Graphics card | UHD Graphics 620 |
| Software | |
| Windows operating systems supported | Windows 11 x64,Windows 10 x64,Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux,Ubuntu 18.04 LTS |
| Weight & dimensions | |
| Width | 4" (101.6 mm) |
| Depth | 4" (101.6 mm) |
| Packaging content | |
| Processor included | Intel® Core™ i5-8365U Processor (6M Cache, up to 4.10 GHz) |
| Other features | |
| HDD size | 2.5" |
| Processor frequency | 1.6 GHz |
| Motherboard ARK ID | 199146 |
| Serial port via internal header | Yes |
| Number of DIMM slots | 2 |
| Compatible operating systems | Windows 10, 64-bit*|Windows 10 IoT Enterprise*|Linux* |
| Graphics output | Dual HDMI 2.0a, DP 1.2 via Type C, 4-lane eDP 1.4 |
| Processor family | Intel® Core™ i5 |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Intel® vPro™ Platform Eligibility | Yes |
| Processor lithography | 14 nm |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Processor generation | 8th gen Intel® Core™ i5 |
