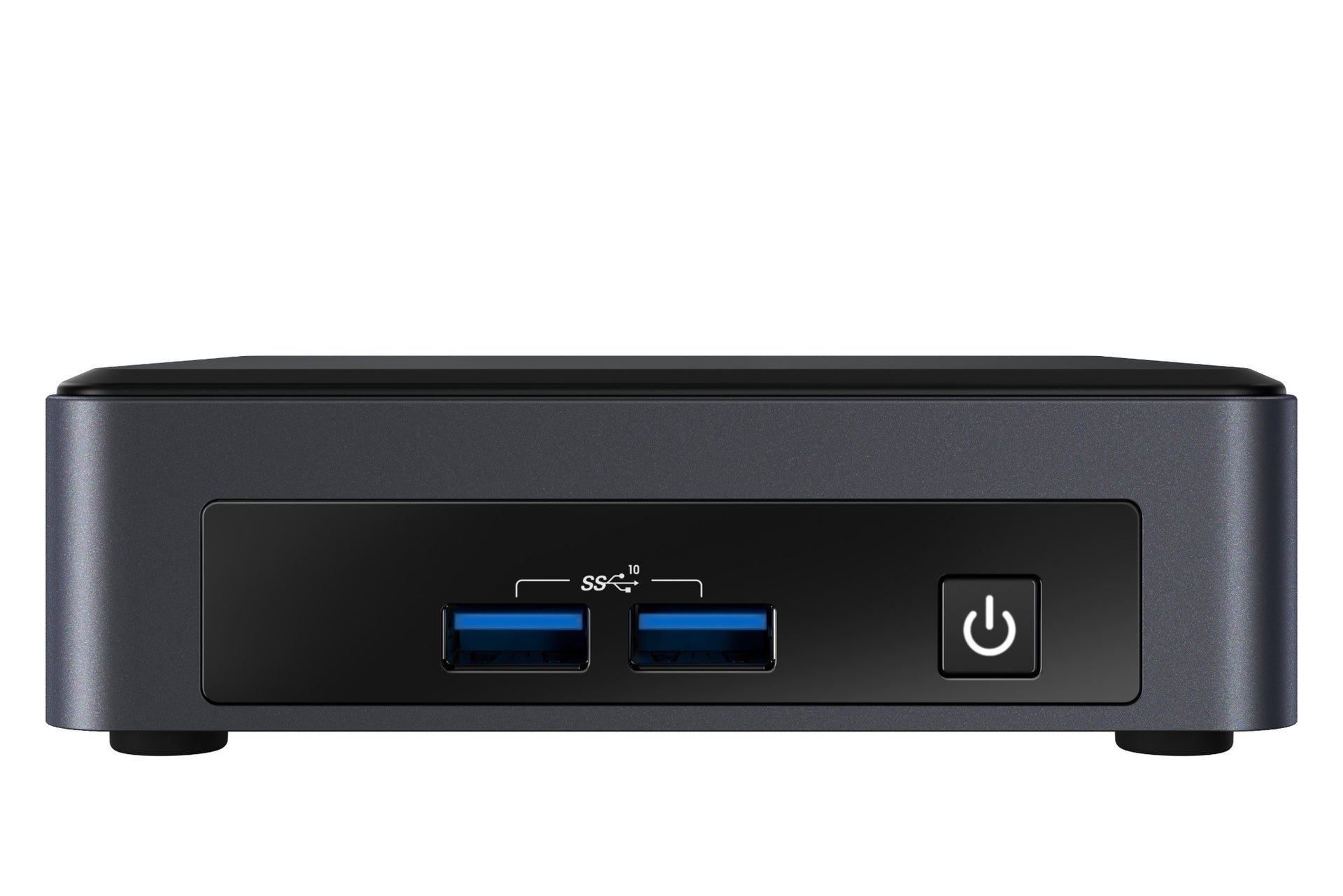

BKNUC8V5PNK - Intel INTEL NUC8V5PNK NUC 8 PRO
BKNUC8V5PNK - Intel INTEL NUC8V5PNK NUC 8 PRO
SKU:BKNUC8V5PNK
Regular price
$1,112.78 USD
Regular price
Sale price
$1,112.78 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Intel NUC BKNUC8V5PNK. Chassis type: UCFF, Product type: Mini PC barebone. Processor socket: BGA 1528, BIOS type: EEPROM. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: M.2. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 5 (802.11ac), Bluetooth version: 5.0. Cooling type: Passive. Power supply: 90 W
Â
Specification:
Â
| Processor | |
|---|---|
| Processor generation | 9th gen Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor frequency | 2.4 GHz |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-9300H |
| Processor cores | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor threads | 8 |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Configurable TDP-down | 35 W |
| Memory types supported by processor | DDR4-SDRAM |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Storage | |
| Card reader integrated | No |
| Number of storage drives supported | 2 |
| Graphics | |
| On-board graphics card | No |
| Discrete graphics card | No |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Number of displays supported | 3 |
| Number of displays supported (on-board graphics) | 3 |
| Graphics output | 2x Thunderbolt 3, HDMI 2.0a |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| Thunderbolt 3 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| S/PDIF out port | Yes |
| Number of SATA III connectors | 3 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB ports quantity | 10 |
| Performance | |
| ARK ID | 199873 |
| Motherboard chipset | Intel® CM246 |
| Trusted Platform Module (TPM) | Yes |
| Harmonized System (HS) code | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Status | Launched |
| Software | |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Processor special features | |
| Intel® Optane™ Memory Ready | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Intel Rapid Storage Technology | Yes |
| Intel TSX-NI | No |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 191075 |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Weight & dimensions | |
| Width | 7.99" (203 mm) |
| Depth | 5.16" (131 mm) |
| Height | 1.5" (38 mm) |
| Packaging content | |
| Processor included | Intel® Core™ i5-9300H Processor (8M Cache, up to 4.10 GHz) |
