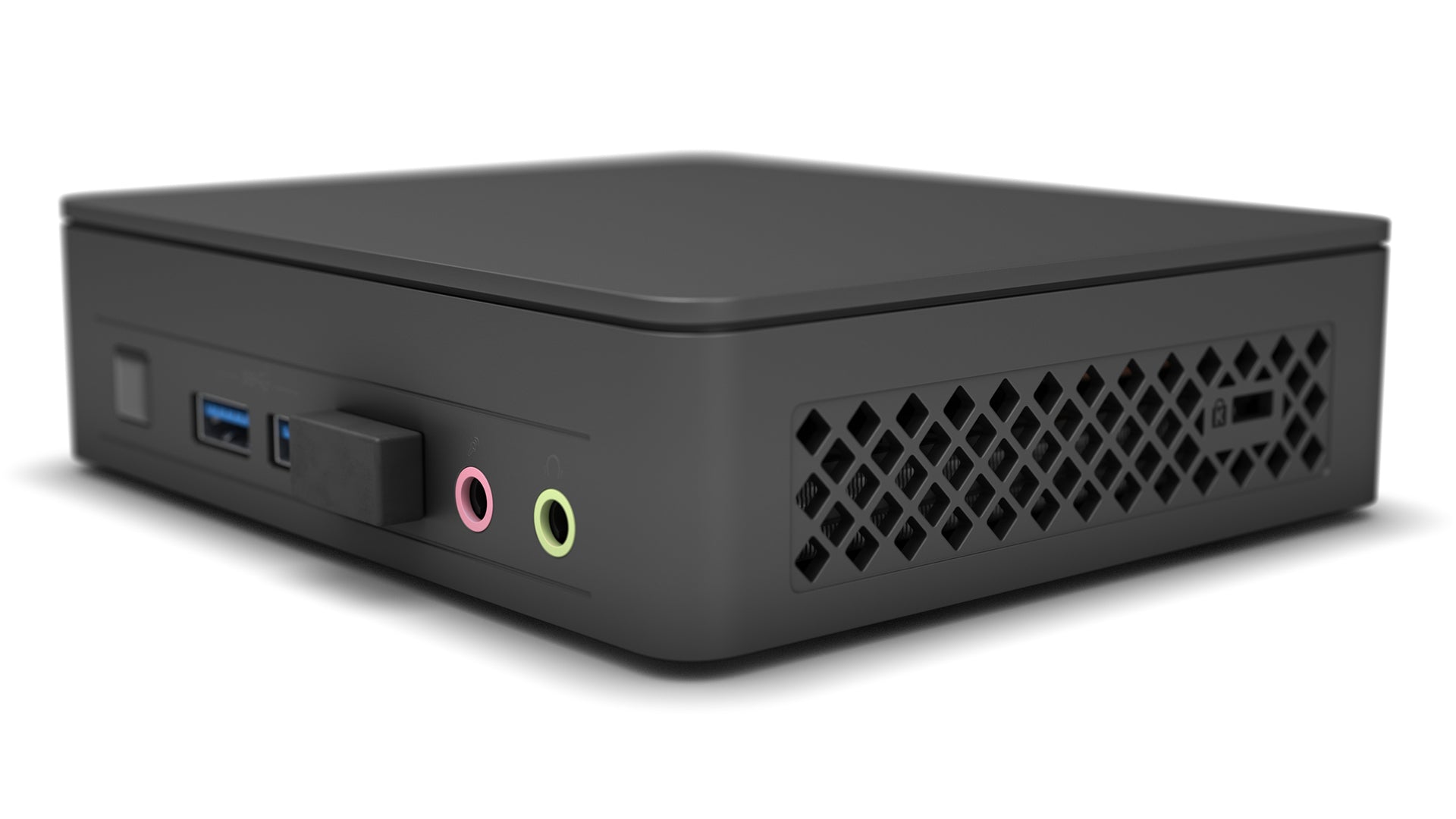

BNUC11ATKC20000 - Intel ATLAS CANYON CELERON C4505 KIT

Intel NUC 11 Essential Kit - NUC11ATKC2. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 32 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 5 (802.11ac), Bluetooth version: 5.0. Cooling type: Active. Power supply: 65 W



Specification:



Processor
Thermal Design Power (TDP)	10 W
L3 cache	4 MB
Built-in processor	Yes
Processor model	N4505
Processor boost frequency	2.9 GHz
Processor threads	2
Processor frequency	2 GHz
Processor lithography	10 nm
Processor cores	2
Processor family	Intel® Celeron®
Processor manufacturer	Intel
ECC supported by processor	No
CPU configuration (max)	1
Processor cache	4 MB
Memory
Memory voltage	1.2 V
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2933 MHz
Maximum internal memory	32 GB
Non-ECC	Yes
Number of DIMM slots	2
Video
On-board graphics card	No
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Number of storage drives supported	1
SSD form factor	M.2
Graphics
Number of displays supported	2
On-board graphics card	No
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
Audio
Intel® High Definition Audio (Intel® HD Audio)	Yes
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9462
Ports & interfaces
DisplayPort version	1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI version	2.0b
DisplayPorts quantity	1
USB 2.0 ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
M.2 card slot (wireless)	1
USB ports quantity	6
M.2 card slot (storage)	1
Expansion slots
PCI Express slots version	3.0
Design
Product type	Mini PC barebone
Housing material	Metal, Plastic
Cable lock slot type	Kensington
Cable lock slot	Yes
ARK ID	217675
On/off switch	Yes
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	UCFF
Product series	Intel® NUC Kit with Intel® Celeron® Processors
Status	Launched
Performance
Windows operating systems supported	Windows 11, Windows 10
Linux operating systems supported	Yes
Number of displays supported	2
Compatible operating systems	Windows 10*|Linux*
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C
Software
Compatible operating systems	Windows 10*|Linux*
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	No
Colour
Product colour	Black
Power
DC input voltage	19 V
AC adapter output voltage	19 V
Power supply type	External AC adapter
Power supply	65 W
Number of power supply units	1
Technical details
Intel® AES New Instructions (Intel® AES-NI)	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Processor cores	2
Cooling type	Active
Chassis type	UCFF
ARK ID	217675
Packaging data
Power cord included	Yes
AC adapter included	Yes
Indication
LED indicators	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	2
Weight & dimensions
Width	5.31" (135 mm)
Depth	4.53" (115 mm)
Height	1.42" (36 mm)
Packaging content
Power cord included	Yes
AC adapter included	Yes
Other features
DC input voltage	19 V
Chassis type	UCFF
Launch date	Q1'22
