BNUC11ATKPE0S00 - Intel NUC 11 KIT NUC11ATKPE, 64GB EMMC, NO CORD
BNUC11ATKPE0S00 - Intel NUC 11 KIT NUC11ATKPE, 64GB EMMC, NO CORD
SKU:BNUC11ATKPE0S00
Regular price
$329.59 USD
Regular price
Sale price
$329.59 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

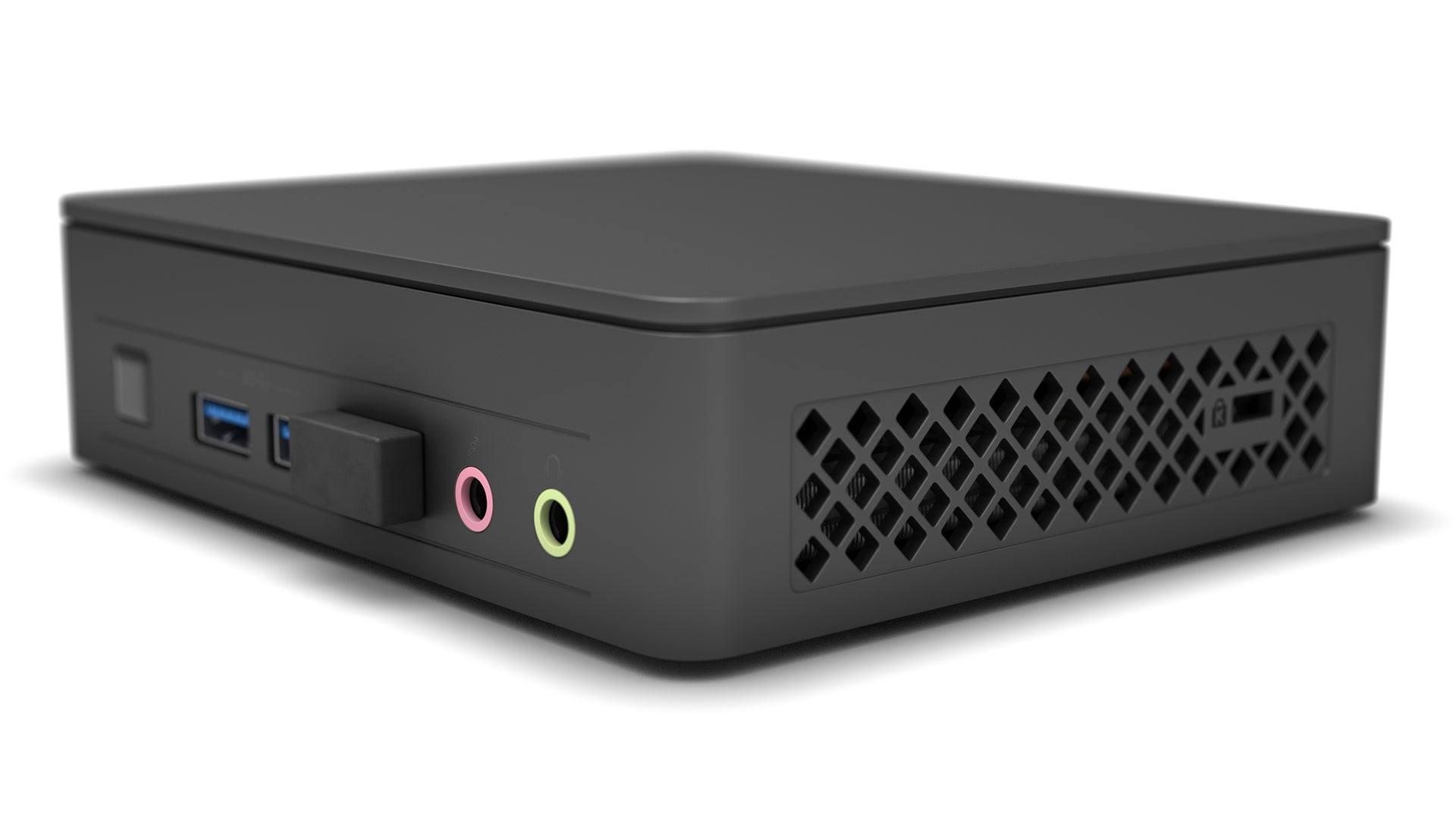

Intel NUC 11 Essential Kit - NUC11ATKPE. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 32 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 5 (802.11ac), Bluetooth version: 5.0. Cooling type: Active. Power supply: 65 W
Â
Specification:
Â
| Technical details | |
|---|---|
| Number of displays supported | 4 |
| Motherboard chipset family | Intel |
| Serial port via internal header | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Number of DIMM slots | 2 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Motherboard form factor | UCFF |
| Component for | mini PC |
| USB ports quantity | 4 |
| Thermal Design Power (TDP) | 15 W |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Total number of SATA connectors | 1 |
| Status | Launched |
| Launch date | Q1'21 |
| Intel Virtualization Technology (VT-x) | Yes |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
| Performance | |
| Intel ME Firmware Version | 15 |
| HDD size | 2.5" |
| Supported storage drive types | HDD & SSD |
| Motherboard ARK ID | 205598 |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux, Ubuntu 20.04 LTS |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Motherboard form factor | UCFF |
| Component for | mini PC |
| Processor | |
| Processor manufacturer | Intel |
| Processor cores | 2 |
| Thermal Design Power (TDP) | 15 W |
| Processor model | i3-1115G4 |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7 |
| Processor socket | BGA 1449 |
| Processor family | Intel® Core™ i3 |
| Processor lithography | 10 nm |
| Lithography | 10 nm |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC | No |
| Supported memory clock speeds | 3200 MHz |
| Maximum internal memory | 64 GB |
| Storage controllers | |
| HDD size | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 3 |
| SSD form factor | M.2 |
| Graphics | |
| Number of displays supported | 4 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Graphics card family | Intel |
| Internal I/O | |
| Total number of SATA connectors | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| Serial port via internal header | Yes |
| Number of SATA connectors | 1 |
| Number of SATA III connectors | 1 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Thunderbolt ports quantity | 2 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I225-LM |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| DC input voltage | 12 - 24 V |
| Motherboard ARK ID | 205598 |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux, Ubuntu 20.04 LTS |
| Compatible operating systems | Windows 10 IoT Enterprise*|Linux* |
| Motherboard form factor | UCFF |
| Component for | mini PC |
| Harmonized System (HS) code | 84733020 |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Power | |
| DC input voltage | 12 - 24 V |
| Processor special features | |
| Intel ME Firmware Version | 15 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Ports & interfaces | |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Video | |
| Graphics card family | Intel |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux, Ubuntu 20.04 LTS |
| Weight & dimensions | |
| Width | 4" (101.6 mm) |
| Depth | 4" (101.6 mm) |
| Other features | |
| HDD size | 2.5" |
| Thermal Design Power (TDP) | 15 W |
| Motherboard ARK ID | 205598 |
| Serial port via internal header | Yes |
| Number of DIMM slots | 2 |
| Compatible operating systems | Windows 10 IoT Enterprise*|Linux* |
| Processor family | Intel® Core™ i3 |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Processor lithography | 10 nm |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Processor generation | 11th gen Intel® Core™ i3 |
