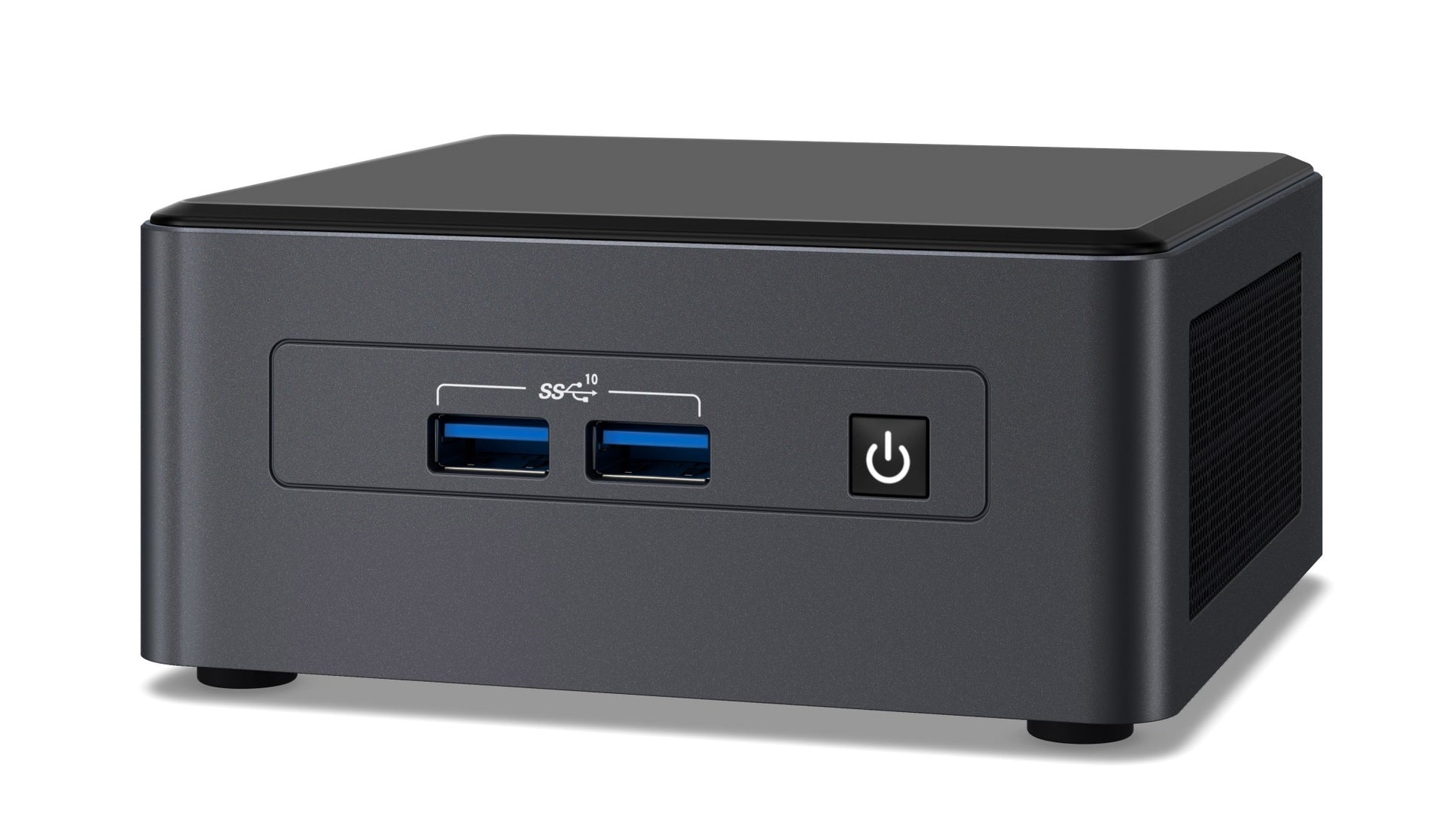

BNUC11TNHI50Z01 - Intel NUC 11 PRO KIT NUC11TNHI50Z US CORD

Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments. Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions. Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0. Intel® AES New Instructions Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.



Specification:



Motherboard
Motherboard form factor	UCFF
Processor
Thermal Design Power (TDP)	28 W
Built-in processor	Yes
Processor model	i7-1165G7
Processor boost frequency	4.7 GHz
Processor threads	8
Processor lithography	10 nm
Processor cores	4
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
CPU configuration (max)	1
Processor cache	12 MB
Processor generation	11th gen Intel® Core™ i7
Memory
Memory voltage	1.2 V
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Number of DIMM slots	2
Video
On-board graphics card	No
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	M.2,2.5
Storage drive interface	M.2, Serial ATA III
Number of storage drives supported	3
SSD form factor	M.2
Graphics
Number of displays supported	4
On-board graphics card	No
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I225-LM
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Ports & interfaces
Thunderbolt ports quantity	2
Serial port via internal header	Yes
Number of SATA III connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Internal USB 2.0 ports quantity	2
DisplayPorts quantity	1
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
M.2 card slot (wireless)	2230 (E-key) (E)
USB ports quantity	4
Thunderbolt 3 ports quantity	1
M.2 card slot (storage)	2280 NVMe (M); 2242 SATA (B)
Expansion slots
PCI Express slots version	4.0
Design
Motherboard form factor	UCFF
Product type	Mini PC barebone
ARK ID	205605
On/off switch	Yes
Product colour	Black
Chassis type	UCFF
Status	Launched
Performance
Motherboard form factor	UCFF
Windows operating systems supported	Windows 10 x64, Windows 10 IoT Enterprise
Linux operating systems supported	RedHat EL Linux, Ubuntu 20.04 LTS
Number of displays supported	4
Compatible operating systems	Windows 10 IoT Enterprise*|Linux*
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Harmonized System (HS) code	84713000
Export Control Classification Number (ECCN)	5A992C
Software
Compatible operating systems	Windows 10 IoT Enterprise*|Linux*
Processor special features
Intel ME Firmware Version	15
Intel Stable Image Platform Program (SIPP)	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Trusted Execution Technology	No
Idle States	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Optane™ Memory Ready	No
Embedded options available	No
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Colour
Product colour	Black
Power
DC input voltage	12 - 20 V
AC adapter output voltage	12 - 24 V
Power supply type	External AC adapter
Power supply	28 W
Number of power supply units	1
Technical details
Intel® AES New Instructions (Intel® AES-NI)	Yes
Embedded options available	No
Processor cores	4
Chassis type	UCFF
ARK ID	205605
Internal I/O
Number of SATA connectors	1
Management features
On/off switch	Yes
Features
Number of displays supported	4
Logistics data
Harmonized System (HS) code	84713000
Weight & dimensions
Width	4.61" (117 mm)
Depth	4.41" (112 mm)
Height	2.13" (54 mm)
Other features
DC input voltage	12 - 20 V
Embedded options available	No
Number of SATA connectors	1
HDD size	2.5"
Chassis type	UCFF
Additional headers	Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Launch date	Q1'21
