Description

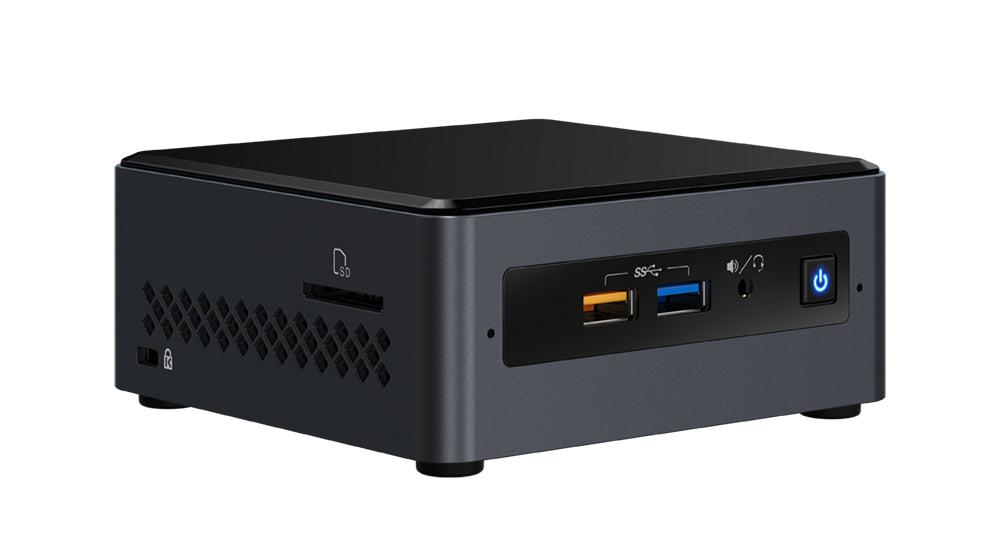

Intel NUC NUC7CJYHN. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 8 GB. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 5 (802.11ac), Bluetooth version: 5.0
Â
Specification:
Â
| Processor | |
|---|---|
| Processor lithography | 14 nm |
| Memory types supported by processor | DDR4-SDRAM |
| Thermal Design Power (TDP) | 10 W |
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
| Conflict-Free processor | Yes |
| Processor cache | 4 MB |
| Processor frequency | 2 GHz |
| Processor model | J4005 |
| Processor manufacturer | Intel |
| Processor boost frequency | 2.7 GHz |
| Processor threads | 2 |
| Processor cores | 2 |
| Processor family | Intel Celeron J |
| Memory | |
| ECC | No |
| Internal memory | 4 GB |
| Memory layout (slots x size) | 1 x 4 GB |
| Maximum internal memory | 8 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Number of DIMM slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 38.4 GB/s |
| Storage | |
| Storage media | eMMC |
| Number of storage drives supported | 1 |
| Optical drive type | No |
| HDD size | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
| Total storage capacity | 64 GB |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 600 |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Total number of SATA connectors | 1 |
| Number of SATA III connectors | 1 |
| HDMI version | 2.0a |
| HDMI ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Technical details | |
| Intel 64 | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | No |
| Product colour | Black |
| Chassis type | UCFF |
| Motherboard form factor | UCFF |
| Cable lock slot | Yes |
| Audio output channels | 7.1 channels |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | UCFF |
| Cable lock slot | Yes |
| Product series | Intel® NUC Mini PC with Intel® Celeron® Processors |
| Product codename | JUNE CANYON |
| Intel® vPro™ Platform Eligibility | No |
| Performance | |
| Embedded options available | No |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | No |
| Motherboard form factor | UCFF |
| Audio output channels | 7.1 channels |
| Consumer infrared Rx sensor | Yes |
| Harmonized System (HS) code | 84715000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Removable memory card slot | SDXC with UHS-I support |
| Additional headers | CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL |
| Supported RAID configuration | N/A |
| Status | Launched |
| Software | |
| Operating system architecture | 64-bit |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Operating system installed | Windows 10 |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Smart Response Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 214616 |
| Intel 64 | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Power | |
| Power supply | 65 W |
| DC input voltage | 12 - 19 V |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 4.53" (115 mm) |
| Depth | 4.37" (111 mm) |
| Height | 2.01" (51 mm) |
| Packaging content | |
| Display included | No |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| Other features | |
| USB ports quantity | 6 |
| Trusted Platform Module (TPM) | No |
| Number of SATA connectors | 1 |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Consumer infrared Rx sensor | Yes |
| Harmonized System (HS) code | 84715000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Additional headers | CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL |
