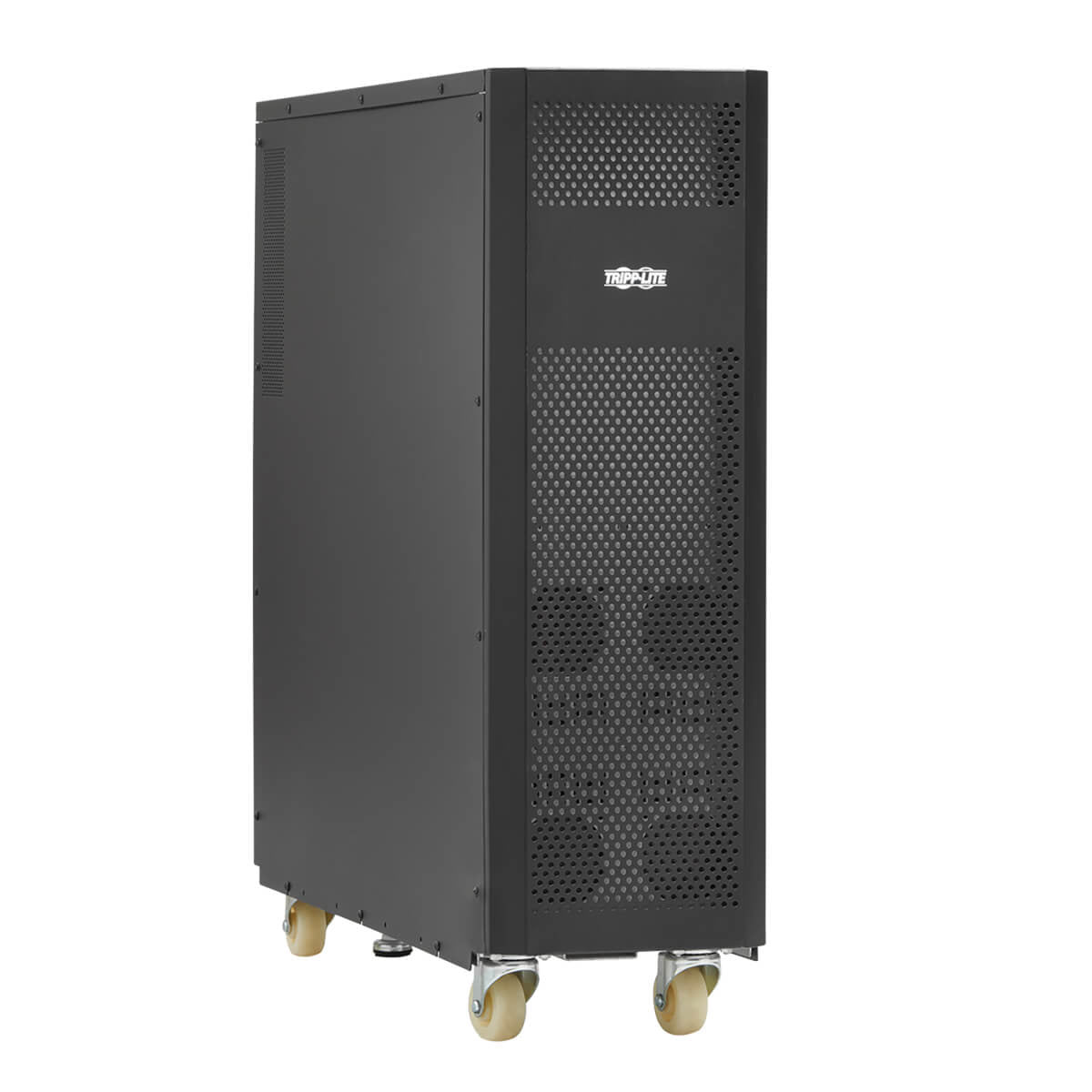

BP240V09K - Tripp Lite EXTERNAL BATTERY CABINET FOR 10-20K 3-PH

External battery pack provides extended backup runtime for Tripp Lite 10-20K S3M-Series 3-phase UPS systems. ±120VDC External Batteries Give Your Compatible 3-Phase UPS Extended Runtime This external battery pack connects to a compatible SmartOnline® S3M-Series 3-phase UPS system to provide long-lasting battery backup for data centers, telecommunications, networks, industrial facilities, security, emergency systems and other mission-critical applications that require high capacity, high availability and extended runtime. The BP240V09K can only be connected in parallel with one other BP240V09K cabinet when using with an S3M10-20K-NIB (UPS without internal batteries) models for longer extended-run operation. Rugged Steel Construction Designed to Last in Demanding IT Applications The cabinet is made from heavy-gauge steel with a baked powder-coated finish that helps prevent chipping and corrosion. The hinged front door provides easy access to the recyclable internal batteries. The door locks securely to help prevent damage, tampering or theft. Fuses and output breaker protect against potentially hazardous overcurrent. Ships Ready for Immediate Deployment Pre-installed rolling casters allow easy adjustment at the installation location. Adjustable levelers support secure long-term deployment on a stable surface. Includes heavy-gauge cabling with high-current DC connectors for simple installation. Typical Applications - Extend the runtime of your compatible Tripp Lite UPS system to maintain operation during all power conditions - Up to two battery packs can be connected in parallel when using with S3M10-20K-NIB, No Internal Battery UPS models for extended runtime System Requirements Tripp Lite 3-phase 208V UPS models S3M10K1B, S3M10K2B, S3M10K3B, S3M10K-NIB, S3M15K2B, S3M15K3B, S3M15K-NIB, S3M20K3B, S3M20K-NIB or other UPS specifying compatibility.



Specification:



Design
Form factor	Tower
Product colour	Black
Housing material	Steel
Castor wheels	Yes
Number of wheels	4 wheel(s)
Compatible products	S3M10K1B, S3M10K2B, S3M10K3B, S3M10K-NIB, S3M15K2B, S3M15K3B, S3M15K-NIB, S3M20K3B, S3M20K-NIB
Battery
Number of batteries supported	80
Weight & dimensions
Width	9.8" (248.9 mm)
Depth	35.4" (899.2 mm)
Height	34.2" (868.7 mm)
Weight	130.3 lbs (59.1 kg)
Package width	14.8" (375.9 mm)
Package depth	40.3" (1023.6 mm)
Package height	41.3" (1049 mm)
Package weight	138.9 lbs (63 kg)
Packaging content
Quantity	1
Manual	Yes
Technical details
Sustainability certificates	RoHS
Logistics data
Country of origin	China
Master (outer) case width	14.8" (375.9 mm)
Master (outer) case length	40.3" (1023.6 mm)
Master (outer) case height	41.3" (1049 mm)
Master (outer) case gross weight	138.9 lbs (63 kg)
Products per master (outer) case	1 pc(s)
