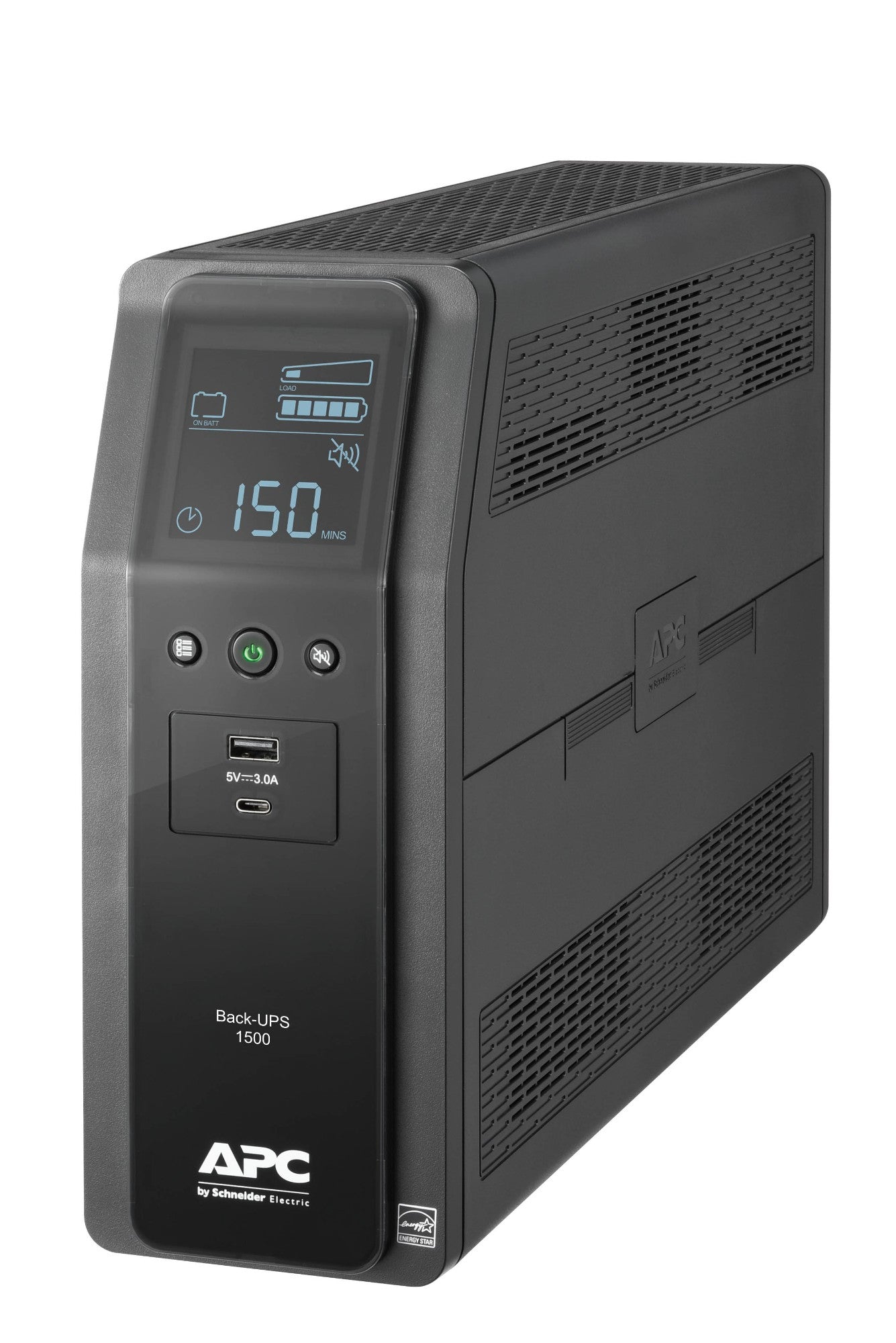

BR1500M2-LM - APC LA BACK UPS PRO BR 1500VA

Audible alarms Provides notification of changing utility power and UPS power conditions Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Battery backup and surge protection Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage. Battery replacement without tools Enables fast battery replacement, lowering Mean Time to Repair (MTTR). Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. Building Wiring Fault Indicator This LED informs users of potentially dangerous wiring problems in the wall circuit. Dataline surge protection Provides protection of connected equipment from power surges on the data lines. EMI and RFI noise filtering Reduces line noise that can cause data loss and keyboard errors. ENERGY STAR for UPS Establishes that the efficiency of the UPS is in the top 25% of the market as verified by third party testing Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. Lifetime data recovery warranty Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit. PowerChute Personal Edition OS Compatibility This software supports numerous operating systems and processors. Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Simple battery replacement Increases UPS availability by allowing quick, easy battery replacement. Resettable circuit breaker Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs) USB connection Use your PC to access additional power protection and management features for your UPS via a USB Port. LCD Status Display Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. Audible alarms Provides notification of changing utility power and UPS power conditions Disconnected battery notification Warns when a battery is not available to provide backup power. Dataline surge protection Provides protection of connected equipment from power surges on the data lines. Surge only outlets Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage. Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy Management Function Energy saving feature automatically power off peripherals when the a master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on. Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery. LCD Status Display Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs. Battery-protected and surge-only outlets Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Customizable voltage-transfer points Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics. Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles. Energy Management Function Energy saving feature automatically power off peripherals when the a master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on. Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models). Customizable voltage sensitivity Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Cold-start capable Provides temporary battery power when the utility power is out.



Specification:



Power
Output frequency	60 Hz
Output power	900 W
Input operation voltage (min)	88 V
Input operation voltage (max)	147 V
Surge energy rating	1080 J
Maximum current	12 A
Output power capacity	1.5 kVA
Input frequency	60 Hz
Ports & interfaces
Cable length	72" (1.83 m)
USB port	Yes
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
Performance
Hold time (min)	8 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Coax, Network
Noise level	45 dB
Audible alarm(s)	Yes
Features
Output frequency	60 Hz
Hold time (min)	8 ms
Hold time (max)	10 ms
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Output power	900 W
Input operation voltage (min)	88 V
Input operation voltage (max)	147 V
Surge energy rating	1080 J
Maximum current	12 A
EMI/RFI noise filtering	Yes
Surge protection	Yes
Surge protection features	Coax, Network
Noise level	45 dB
Audible alarm(s)	Yes
Output power capacity	1.5 kVA
Input frequency	60 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	16 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Form factor	Tower
Product colour	Black
Certification	FCC 15 B, NOM, TUV C-US
Cable length	72" (1.83 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output voltage	120 V
Output frequency	60 Hz
Sustainability certificates	RoHS, ENERGY STAR
Weight & dimensions
Weight	27.6 lbs (12.5 kg)
Width	3.94" (100 mm)
Height	10.2" (260 mm)
Depth	14.5" (368 mm)
Package width	8.78" (223 mm)
Package depth	19" (482 mm)
Package height	14.1" (358 mm)
Package weight	31.3 lbs (14.2 kg)
Packaging data
Manual	Yes
Cables included	USB cable
Package width	8.78" (223 mm)
Package depth	19" (482 mm)
Package height	14.1" (358 mm)
Package weight	31.3 lbs (14.2 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case gross weight	31.3 lbs (14.2 kg)
Products per pallet	16 pc(s)
Certificates
Certification	FCC 15 B, NOM, TUV C-US
Other features
Output voltage	120 V
Packaging content
Manual	Yes
Cables included	USB cable
