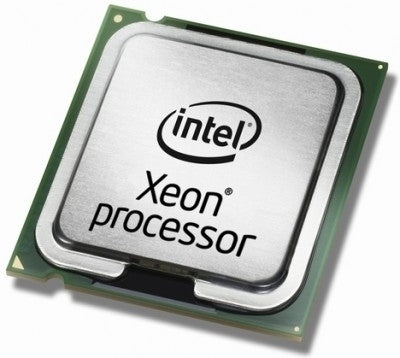

BX80602E5506 - Intel E5506 2.13G 4C 4M PROC

Intel Xeon E5506. Processor family: Intel® Xeon® 5000 Sequence, Processor socket: LGA 1366 (Socket B), Processor lithography: 45 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 144 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Physical Address Extension (PAE): 40 bit, Export Control Classification Number (ECCN): 3A991.A.1. Package width: 1.73" (44 mm), Package depth: 5.51" (140 mm), Package height: 4.61" (117 mm). Processor package size: 42.5mm x 45mm



Specification:



Processor
Processor base frequency	2.26 GHz
Processor manufacturer	Intel
Cooler included	Yes
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	80 W
Processor cache	8 MB
Processor system type	DP
Processor ARK ID	40200
Processor model	E5520
Processor threads	8
System bus rate	5.86 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.75 - 1.35 V
Processor boost frequency	2.53 GHz
Number of QPI links	2
CPU multiplier (bus/core ratio)	17
Bus type	QPI
Component for	Server/workstation
Processor lithography	45 nm
Processor family	Intel® Xeon® 5000 Sequence
Processor front side bus	1066 MHz
Processor cores	4
Box	Yes
Processor socket	LGA 1366 (Socket B)
Processor series	Intel Xeon 5500 Series
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	144 GB
Memory types supported by processor	DDR3-SDRAM
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Triple-channel
ECC	Yes
Power
Thermal Design Power (TDP)	80 W
VID Voltage Range	0.75 - 1.35 V
Technical details
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
CPU configuration (max)	2
Product type	Processor
Processor cache	8192 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	80 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Processor series	Intel Xeon 5500 Series
Physical Address Extension (PAE)	40 bit
Market segment	Server
Launch date	Q1'09
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5.86
Maximum memory	144 GB
Processor brand name	Intel Xeon
Last change	63903513
Product family	Intel Xeon Processor 5000 Sequence
Bus speed	5.86 GT/s
Features
Thermal Design Power (TDP)	80 W
Processor package size	42.5mm x 45mm
Processor ARK ID	40200
Idle States	Yes
Execute Disable Bit	Yes
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
Embedded options available	No
CPU configuration (max)	2
Physical Address Extension (PAE)	40 bit
Market segment	Server
Images Type Map
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	3A991.A.1
Commodity Classification Automated Tracking System (CCATS)	NA
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	No
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Operational conditions
Tcase	72 °C
Packaging data
Package width	1.73" (44 mm)
Package depth	5.51" (140 mm)
Package height	4.61" (117 mm)
Package weight	3.6 oz (102 g)
Package type	Retail box
Weight & dimensions
Processor package size	42.5mm x 45mm
Package width	1.73" (44 mm)
Package depth	5.51" (140 mm)
Package height	4.61" (117 mm)
Package weight	3.6 oz (102 g)
Other features
Maximum internal memory	144 GB
Maximum internal memory	147456 MB
CPU configuration (max)	2
