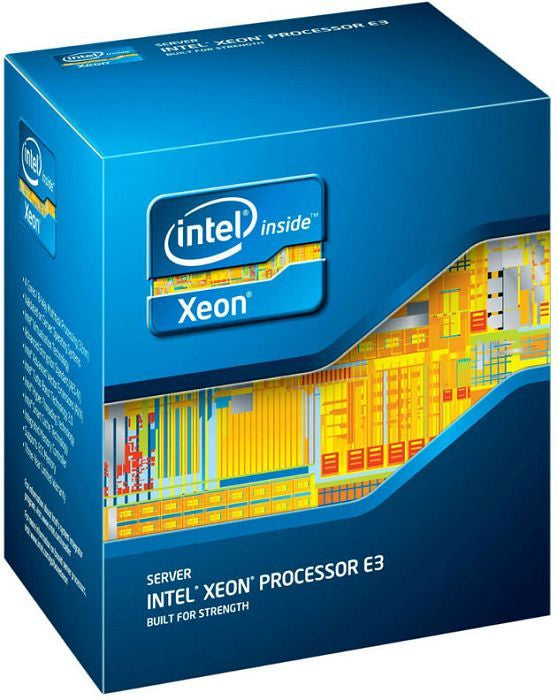

BX80623E31235 - Intel E3-1230 3.20G 4C 95W PROC

Intel Xeon E3-1235. Processor family: Intel® Xeon® E3 Family, Processor socket: LGA 1155 (Socket H2), Processor lithography: 32 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM. On-board graphics card model: Intel® HD Graphics P3000, On-board graphics card base frequency: 850 MHz, On-board graphics card dynamic frequency (max): 1350 MHz. Market segment: Server, Supported instruction sets: SSE4.1, SSE4.2, AVX, Export Control Classification Number (ECCN): 5A992C. Intel® Turbo Boost Technology 2.0 frequency: 3.6 GHz



Specification:



Processor
Processor base frequency	3.3 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Sandy Bridge
Memory bandwidth supported by processor (max)	21 GB/s
Thermal Design Power (TDP)	80 W
Processor cache	8 MB
Processor ARK ID	52273
Processor model	E3-1240
Processor threads	8
System bus rate	5 GT/s
Processor operating modes	64-bit
Processor boost frequency	3.7 GHz
Stepping	D2
CPU multiplier (bus/core ratio)	33
Bus type	DMI
Component for	Server/workstation
Processor lithography	32 nm
Processor family	Intel® Xeon® E3 Family
Processor cores	4
Box	Yes
Processor socket	LGA 1155 (Socket H2)
Processor code	SR00K
Processor series	Intel Xeon E3-1200
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Dual-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	80 W
Technical details
Cache memory	8 MB
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	No
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	No
Intel® InTru™ 3D Technology	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
PCI Express slots version	2.0
Supported instruction sets	SSE4.1, SSE4.2, AVX
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
CPU configuration (max)	1
Processor code	SR00K
Product type	Processor
Processor cache	8192 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	80 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Xeon E3-1240 (8M Cache, 3.30 GHz)
Processor series	Intel Xeon E3-1200
Market segment	Server
Launch date	Q2'11
Intel Virtualization Technology (VT-x)	Yes
Intel Identity Protection Technology version	1.00
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q2'11
Maximum memory	32 GB
Processor brand name	Intel Xeon
Last change	63903513
Product family	Intel Xeon Processor E3 Family
Bus speed	5 GT/s
Features
Maximum number of PCI Express lanes	20
Thermal Design Power (TDP)	80 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	52273
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	2.0
Supported instruction sets	SSE4.1, SSE4.2, AVX
Embedded options available	No
CPU configuration (max)	1
Processor code	SR00K
Market segment	Server
Images Type Map
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	2.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Wireless Display (Intel® WiDi)	No
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	No
Intel® InTru™ 3D Technology	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Identity Protection Technology version	1.00
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	3.7 GHz
Operational conditions
Tcase	69.1 °C
Packaging data
Package width	3.19" (81 mm)
Package depth	4.49" (114 mm)
Package height	4.02" (102 mm)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	3.19" (81 mm)
Package depth	4.49" (114 mm)
Package height	4.02" (102 mm)
Other features
Cache memory	8 MB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Temperature (max)	69.1 °C
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
CPU configuration (max)	1
Compatibility	Intel S1200BTL, S1200BTS, S1200KP, S1200BTSR, S1200KPR, S1200BTLR, R1304BTLSHBN, R1304BTLSFAN, R1304BTSSFAN, P4304BTLSFCN, P4304BTLSHCN, P4304BTSSFCN, R1304BTLSHBNR, R1304BTLSFANR, R1304BTSSFANR, P4304BTLSHCNR, P4304BTLSFCNR, P4304BTSSFCNR
Processor code	SR00K
