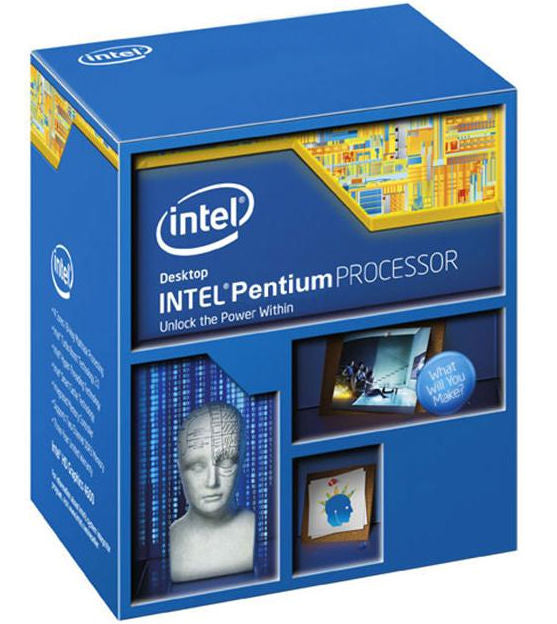

BX80637G2030 - Intel G2030 LGA1155 3GHZ 3MB BOX

Intel Pentium G2030. Processor family: Intel Pentium G, Processor socket: LGA 1155 (Socket H2), Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM. On-board graphics card model: Intel® HD Graphics, On-board graphics card base frequency: 650 MHz, On-board graphics card dynamic frequency (max): 1050 MHz. Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: SSE4.1, SSE4.2. Package width: 3.19" (81 mm), Package depth: 4.49" (114 mm), Package height: 4.02" (102 mm)



Specification:



Processor
Processor base frequency	3.2 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Ivy Bridge
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	55 W
Processor cache	3 MB
Processor ARK ID	71052
Processor model	G2130
Processor threads	2
System bus rate	5 GT/s
Processor operating modes	64-bit
Stepping	P0
L3 cache speed	3.2 GHz
CPU multiplier (bus/core ratio)	32
Bus type	DMI
Component for	PC
Processor lithography	22 nm
Processor family	Intel Pentium G
Processor cores	2
Box	Yes
Processor socket	LGA 1155 (Socket H2)
Processor code	SR0YU
Processor series	Intel Pentium G2000 Series for Desktop
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Dual-channel
ECC	Yes
Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card model	Intel® HD Graphics
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card base frequency	650 MHz
Power
Thermal Design Power (TDP)	55 W
Technical details
Cache memory	3 MB
Thermal solution specification	PCG 2011C
Intel® Secure Key	No
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	No
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
PCI Express slots version	2.0
PCI Express configurations	1x16,2x8,1x8,2x4
Supported instruction sets	SSE4.1,SSE4.2
L3 cache speed	3.2 GHz
L2 cache	3072 KB
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Embedded options available	No
CPU configuration (max)	1
Processor code	SR0YU
Product type	Processor
Processor cache	3072 KB
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Thermal Design Power (TDP)	55 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Pentium G2130 (3M Cache, 3.20 GHz)
Processor series	Intel Pentium G2000 Series for Desktop
Market segment	Desktop
Launch date	Q1'13
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	0.00
Graphics max dynamic frequency	1.05 GHz
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q1'13
Maximum memory	32 GB
Processor brand name	Intel Pentium
Last change	63903513
Product family	Intel Pentium Processor
Bus speed	5 GT/s
Features
Thermal Design Power (TDP)	55 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	71052
Thermal solution specification	PCG 2011C
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	2.0
PCI Express configurations	1x16,2x8,1x8,2x4
Supported instruction sets	SSE4.1,SSE4.2
Embedded options available	No
CPU configuration (max)	1
Processor code	SR0YU
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	3A991
Commodity Classification Automated Tracking System (CCATS)	NA
PCI Express CEM revision	2.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Optane™ Memory Ready	No
Intel® Secure Key	No
Intel® Wireless Display (Intel® WiDi)	No
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	0.00
Intel® vPro™ Platform Eligibility	No
Packaging data
Package width	3.19" (81 mm)
Package depth	4.49" (114 mm)
Package height	4.02" (102 mm)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	3.19" (81 mm)
Package depth	4.49" (114 mm)
Package height	4.02" (102 mm)
Other features
Cache memory	3 MB
Intel® Virtualization Technology (Intel® VT)	VT-x
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
L2 cache	3072 KB
CPU configuration (max)	1
Processor code	SR0YU
