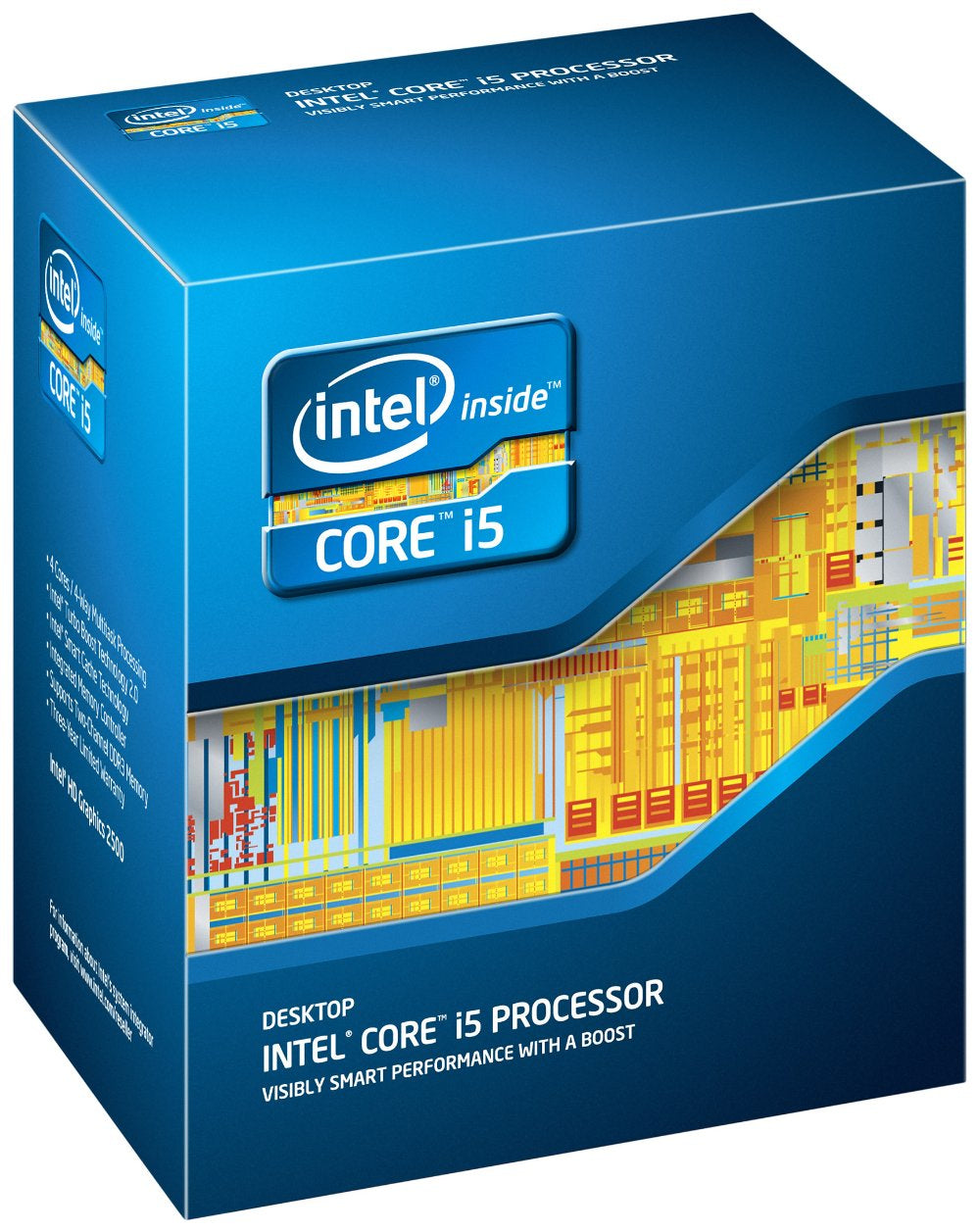

BX80637I53570 - Intel I5 I5 3570 3.4 GHZ QUADCORE

Intel Core i5-3570. Processor family: Intel® Core™ i5, Processor socket: LGA 1155 (Socket H2), Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM. On-board graphics card model: Intel® HD Graphics 2500, On-board graphics card base frequency: 650 MHz, On-board graphics card dynamic frequency (max): 1150 MHz. Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX. Intel® Turbo Boost Technology 2.0 frequency: 3.8 GHz



Specification:



Processor
Processor generation	3rd gen Intel® Core™ i5
Processor base frequency	3.4 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Ivy Bridge
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	77 W
Processor cache	6 MB
Processor ARK ID	65520
Processor model	i5-3570K
Processor threads	4
System bus rate	5 GT/s
Processor operating modes	64-bit
Compatible chipsets	Intel® B75 Express, Intel® H77 Express, Intel Q75 Express, Intel® Z75 Express, Intel® Z77 Express
Processor boost frequency	3.8 GHz
Stepping	E1
CPU multiplier (bus/core ratio)	34
Bus type	DMI
Component for	PC
Processor lithography	22 nm
Processor family	Intel® Core™ i5
Processor cores	4
Box	Yes
Processor socket	LGA 1155 (Socket H2)
Processor series	Intel Core i5-3500 Desktop series
Processor cache type	Smart Cache
Generation	3rd Generation
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Dual-channel
ECC	No
Graphics
On-board graphics card ID	0x152
Number of displays supported (on-board graphics)	3
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	650 MHz
Power
Thermal Design Power (TDP)	77 W
Technical details
Cache memory	6 MB
Thermal solution specification	PCG 2011D
Intel TSX-NI	No
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	No
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Flex Memory Access	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8, 2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Graphics & IMC lithography	22 nm
Embedded options available	No
CPU configuration (max)	1
Product type	Processor
Processor cache	6144 KB
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Thermal Design Power (TDP)	77 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Core i5-3570K (6M Cache, up to 3.80 GHz)
Processor series	Intel Core i5-3500 Desktop series
Market segment	Desktop
Launch date	Q2'12
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Graphics max dynamic frequency	1.15 GHz
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q2'12
Maximum memory	32 GB
Intel TSX-NI version	0.00
Processor brand name	Intel Core i5 Intel Core i5 Processor
Last change	63903513
Product family	3rd Generation Intel Core i5 Processors
Processor ID	0x152
Bus speed	5 GT/s
Features
On-board graphics card ID	0x152
Thermal Design Power (TDP)	77 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	65520
Thermal solution specification	PCG 2011D
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8, 2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX
Graphics & IMC lithography	22 nm
Embedded options available	No
CPU configuration (max)	1
Market segment	Desktop
Images Type Map
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Conflict-Free processor	Yes
Intel TSX-NI	No
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	No
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Flex Memory Access	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel TSX-NI version	0.00
Intel® vPro™ Platform Eligibility	No
Intel® Turbo Boost Technology 2.0 frequency	3.8 GHz
Intel® Transactional Synchronization Extensions	No
Operational conditions
Tcase	67.4 °C
Packaging data
Package width	3.19" (81 mm)
Package depth	4.49" (114 mm)
Package height	4.02" (102 mm)
Package weight	13.9 oz (394 g)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	3.19" (81 mm)
Package depth	4.49" (114 mm)
Package height	4.02" (102 mm)
Package weight	13.9 oz (394 g)
Other features
Cache memory	6 MB
Intel® Virtualization Technology (Intel® VT)	VT-x
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
CPU configuration (max)	1
