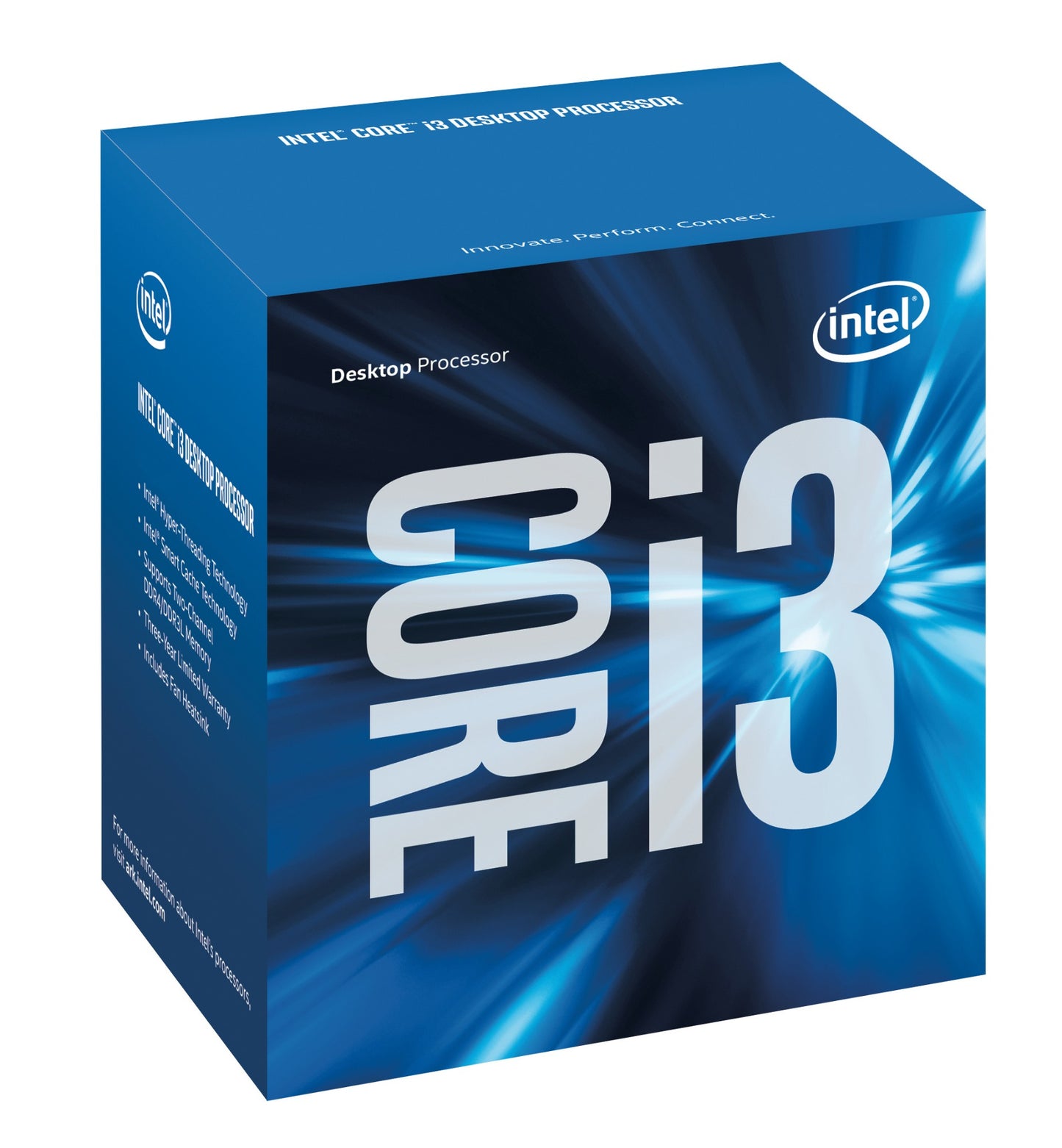

BX80646I34160 - Intel I3-4160 3M 3.60GHZ LGA1150

Intel Core i3-4160. Processor family: Intel® Core™ i3, Processor socket: LGA 1150 (Socket H3), Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM. On-board graphics card model: Intel® HD Graphics 4400, Maximum on-board graphics card memory: 2 GB, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI, VGA (D-Sub). Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Package type: Retail box



Specification:



Processor
Processor generation	4th gen Intel® Core™ i3
Processor base frequency	3.7 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Haswell
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	54 W
Processor cache	3 MB
Processor ARK ID	77490
Processor model	i3-4170
Processor threads	4
System bus rate	5 GT/s
Processor operating modes	64-bit
Compatible chipsets	Intel® B85, Intel® H81, Intel® H87, Intel® H97, Intel® Q85, Intel® Q87, Intel® Z87, Intel® Z97
Stepping	C0
Bus type	DMI2
Component for	PC
Processor lithography	22 nm
Processor family	Intel® Core™ i3
Processor cores	2
Box	Yes
Processor socket	LGA 1150 (Socket H3)
Processor code	SR1PL
Processor series	Intel Core i3-4100 Desktop series
Processor cache type	L3
Generation	4th Generation
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory voltage supported by processor	1.5 V
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Memory channels	Dual-channel
ECC	Yes
Graphics
On-board graphics card outputs supported	Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI, VGA (D-Sub)
On-board graphics card maximum resolution (DisplayPort)	3840 x 2160 pixels
On-board graphics card ID	41
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	3840 x 2160 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics card refresh rate at maximum resolution (VGA)	60 Hz
Maximum graphics card memory	1740 MB
Maximum on-board graphics card memory	2 GB
Number of displays supported (on-board graphics)	3
On-board graphics card maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics card maximum resolution (VGA)	1920 x 1200 pixels
On-board graphics card DirectX version	11.1
On-board graphics card OpenGL version	4.3
On-board graphics card model	Intel® HD Graphics 4400
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	350 MHz
Maximum graphics card memory	2 GB
Power
Thermal Design Power (TDP)	54 W
Technical details
Intel Stable Image Platform Program (SIPP)	No
Cache memory	3 MB
Thermal solution specification	PCG 2013C
Intel TSX-NI	No
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Graphics & IMC lithography	22 nm
Embedded options available	No
CPU configuration (max)	1
Processor code	SR1PL
Graphics output	eDP/DP/HDMI/DVI/VGA
Video compression formats	Yes
Product type	Processor
Processor cache	3072 KB
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Video decoding	Yes
Maximum graphics card memory	1740 MB
Thermal Design Power (TDP)	54 W
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Status	Discontinued
Product name	Intel Core i3-4170 (3M Cache, 3.70 GHz)
Processor series	Intel Core i3-4100 Desktop series
OpenGL support	Yes
Number of graphics cores	12
Maximum resolution & refresh rate (VGA)	1920x1200@60Hz
Maximum resolution & refresh rate (Integrated Flat Panel)	3840x2160@60Hz
Maximum resolution & refresh rate (HDMI)	4096x2304@24Hz
Maximum resolution & refresh rate (DisplayPort)	3840x2160@60Hz
Market segment	Desktop
Launch date	Q1'15
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Graphics max dynamic frequency	1.15 GHz
Processor cache type	L3
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q1'15
Maximum memory	32 GB
Intel TSX-NI version	0.00
Processor brand name	Intel Core i3 Intel Core i3 Processor
Last change	63903513
Product family	4th Generation Intel Core i3 Processors
Maximum graphics card memory	2 GB
Processor ID	0x41E
Bus speed	5 GT/s
Features
On-board graphics card ID	41
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	54 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	77490
Thermal solution specification	PCG 2013C
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Graphics & IMC lithography	22 nm
Embedded options available	No
CPU configuration (max)	1
Processor code	SR1PL
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Conflict-Free processor	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel® vPro™ Platform Eligibility	No
Intel® Transactional Synchronization Extensions	No
Operational conditions
Tcase	72 °C
Packaging data
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Other features
Video decoding	Yes
Cache memory	3 MB
Intel® Virtualization Technology (Intel® VT)	VT-x
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
CPU configuration (max)	1
Processor code	SR1PL
Graphics output	eDP/DP/HDMI/DVI/VGA
