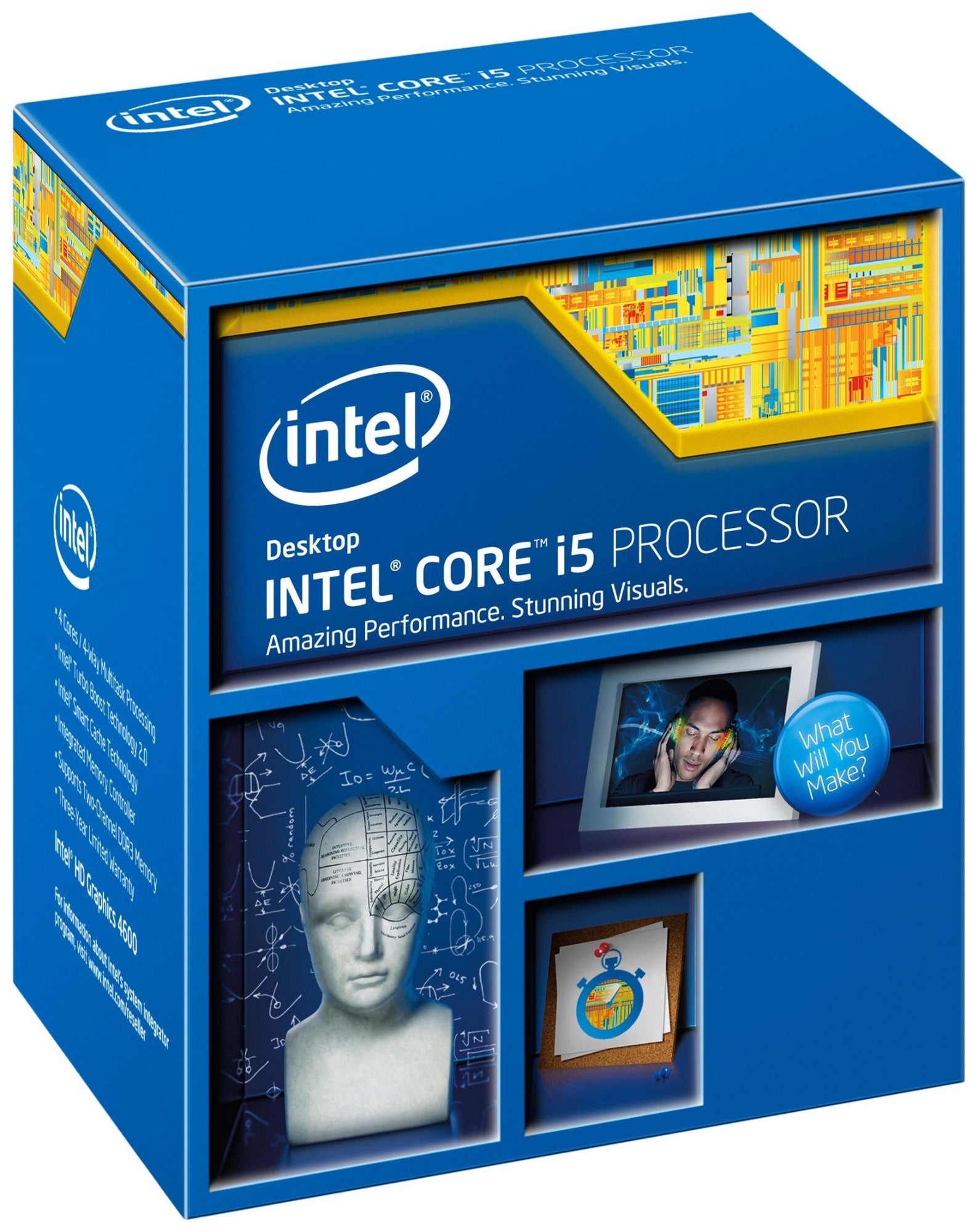

BX80646I54670K - Intel CORE I5-4670K LGA1150 3.4G 6MB

Intel Core i5-4670K. Processor family: Intel® Core™ i5, Processor socket: LGA 1150 (Socket H3), Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM. On-board graphics card model: Intel® HD Graphics 4600, Maximum on-board graphics card memory: 2 GB, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, VGA (D-Sub). Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 3.8 GHz



Specification:



Processor
Processor generation	4th gen Intel® Core™ i5
Processor base frequency	3.5 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Haswell
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	84 W
Processor cache	6 MB
Processor ARK ID	80810
Processor model	i5-4690
Processor threads	4
System bus rate	5 GT/s
Processor operating modes	64-bit
Compatible chipsets	Intel® B85, Intel® H81, Intel® H87, Intel® Q85, Intel® Q87, Intel® Z87
Processor boost frequency	3.9 GHz
Stepping	C0
Bus type	DMI
Component for	PC
Processor lithography	22 nm
Processor family	Intel® Core™ i5
Processor cores	4
Box	Yes
Processor socket	LGA 1150 (Socket H3)
Processor code	SR1QH
Processor series	Intel Core i5-4600 Desktop series
Processor cache type	Smart Cache
Generation	4th Generation
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Memory channels	Dual-channel
ECC	No
Graphics
On-board graphics card outputs supported	Embedded DisplayPort (eDP), DisplayPort, HDMI, VGA (D-Sub)
On-board graphics card maximum resolution (DisplayPort)	3840 x 2160 pixels
On-board graphics card ID	0x412
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	3840 x 2160 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics card refresh rate at maximum resolution (VGA)	60 Hz
Maximum graphics card memory	1740 MB
Maximum on-board graphics card memory	2 GB
Number of displays supported (on-board graphics)	3
On-board graphics card maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics card maximum resolution (VGA)	1920 x 1200 pixels
On-board graphics card DirectX version	11.1
On-board graphics card OpenGL version	4.3
On-board graphics card model	Intel® HD Graphics 4600
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card base frequency	350 MHz
Maximum graphics card memory	2 GB
Power
Thermal Design Power (TDP)	84 W
Technical details
Intel Stable Image Platform Program (SIPP)	Yes
Cache memory	6 MB
Thermal solution specification	PCG 2013D
Intel TSX-NI	No
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel FDI Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Supported processor frequency (max)	3.9 GHz
L2 cache	6144 KB
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Graphics & IMC lithography	22 nm
Embedded options available	No
CPU configuration (max)	1
Bandwidth	5 MB/s
Processor code	SR1QH
Graphics output	eDP/DP/HDMI/VGA
Video compression formats	Yes
Product type	Processor
Processor cache	6144 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Video decoding	Yes
Maximum graphics card memory	1740 MB
Thermal Design Power (TDP)	84 W
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Status	Discontinued
Product name	Intel Core i5-4690 (6M Cache, up to 3.90 GHz)
Processor series	Intel Core i5-4600 Desktop series
OpenGL support	Yes
Number of graphics cores	20
Maximum resolution & refresh rate (VGA)	1920x1200@60Hz
Maximum resolution & refresh rate (Integrated Flat Panel)	3840x2160@60Hz
Maximum resolution & refresh rate (HDMI)	4096x2304@24Hz
Maximum resolution & refresh rate (DisplayPort)	3840x2160@60Hz
Market segment	Desktop
Launch date	Q2'14
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Graphics max dynamic frequency	1.20 GHz
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q2'14
Maximum memory	32 GB
Intel TSX-NI version	0.00
Processor brand name	Intel Core i5 Intel Core i5 Processor
Last change	63903513
Product family	4th Generation Intel Core i5 Processors
Maximum graphics card memory	2 GB
Processor ID	0x412
Bus speed	5 GT/s
Features
On-board graphics card ID	0x412
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	84 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	80810
Thermal solution specification	PCG 2013D
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Graphics & IMC lithography	22 nm
Embedded options available	No
CPU configuration (max)	1
Bandwidth	5 MB/s
Processor code	SR1QH
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel® OS Guard	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	No
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel FDI Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel TSX-NI version	0.00
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	3.9 GHz
Intel® Transactional Synchronization Extensions	No
Operational conditions
Tcase	72.72 °C
Packaging data
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package weight	13.2 oz (373 g)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package weight	13.2 oz (373 g)
Other features
Video decoding	Yes
Cache memory	6 MB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
Supported processor frequency (max)	3.9 GHz
L2 cache	6144 KB
CPU configuration (max)	1
Processor code	SR1QH
Graphics output	eDP/DP/HDMI/VGA
