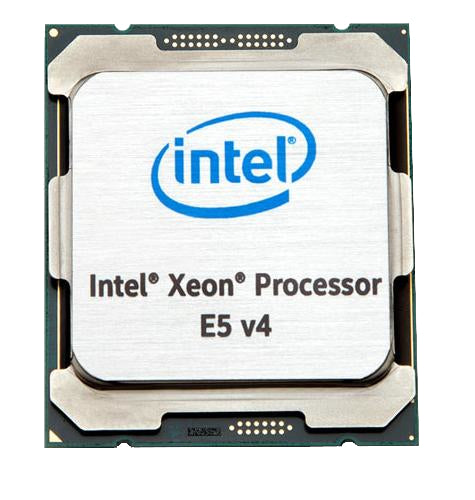

BX80660E52680V4 - Intel E5-2680 V4 2.40GHZ 35M SR2N7

Intel Xeon E5-2680V4. Processor family: Intel® Xeon® E5 v4, Processor socket: LGA 2011-v3, Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 1536 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, PCI Express configurations: 1x16, 1x4, 1x8, Supported instruction sets: AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 3.3 GHz. Package width: 4.57" (116 mm), Package depth: 3.98" (101 mm), Package height: 1.73" (44 mm)



Specification:



Processor
Processor base frequency	3 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Broadwell
Memory bandwidth supported by processor (max)	76.8 GB/s
Thermal Design Power (TDP)	160 W
Processor cache	30 MB
Processor ARK ID	91750
Processor model	E5-2687WV4
Processor threads	24
System bus rate	9.6 GT/s
Processor operating modes	64-bit
Processor boost frequency	3.5 GHz
Stepping	M0
Number of QPI links	2
L3 cache speed	3 GHz
Bus type	QPI
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel® Xeon® E5 v4
Processor cores	12
Box	Yes
Processor socket	LGA 2011-v3
Processor code	SR2NA
Processor series	Intel Xeon E5-2600 v4
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	1536 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)	76.8 GB/s
Supported memory types	DDR4-SDRAM
Memory channels	Quad-channel
ECC	Yes
Graphics
On-board graphics adapter	No
Power
Thermal Design Power (TDP)	160 W
Technical details
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
L3 cache speed	3 GHz
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
CPU configuration (max)	2
Processor code	SR2NA
Product type	Processor
Processor cache	30720 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	160 W
Supported memory types	DDR4-SDRAM
Status	Launched
Processor series	Intel Xeon E5-2600 v4
Physical Address Extension (PAE)	46 bit
Market segment	Server
Launch date	Q1'16
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	9.6
Born on date	Q1'16
Intel TSX-NI version	1.00
Processor brand name	Intel Xeon
Last change	63903513
Product family	Intel Xeon Processor E5 v4 Family
Bus speed	9.6 GT/s
Features
Maximum number of PCI Express lanes	40
Thermal Design Power (TDP)	160 W
Processor package size	45mm x 52.5mm
Processor ARK ID	91750
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
Embedded options available	No
CPU configuration (max)	2
Processor code	SR2NA
Physical Address Extension (PAE)	46 bit
Market segment	Server
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel® OS Guard	Yes
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Intel TSX-NI version	1.00
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	3.5 GHz
Intel® Transactional Synchronization Extensions	Yes
Operational conditions
Tcase	76 °C
Packaging data
Package width	4.57" (116 mm)
Package depth	3.98" (101 mm)
Package height	1.73" (44 mm)
Package weight	3.51 oz (99.5 g)
Package type	Retail box
Weight & dimensions
Processor package size	45mm x 52.5mm
Package width	4.57" (116 mm)
Package depth	3.98" (101 mm)
Package height	1.73" (44 mm)
Package weight	3.51 oz (99.5 g)
Other features
Maximum internal memory	1500 GB
Maximum internal memory	1572864 MB
CPU configuration (max)	2
Processor code	SR2NA
