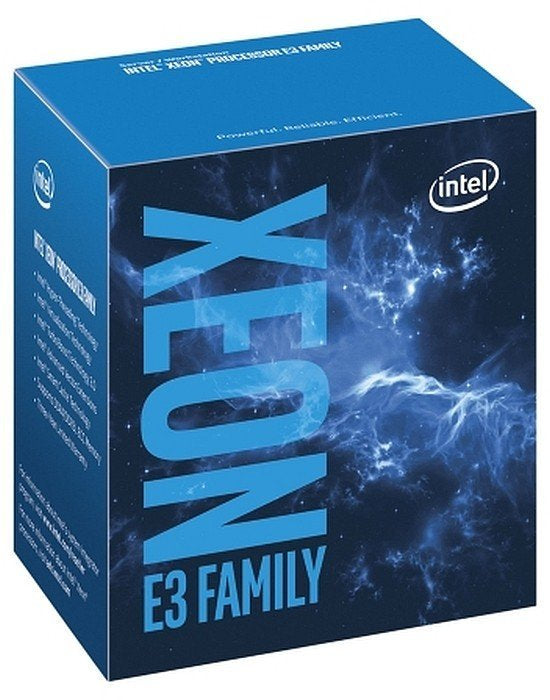

BX80662E31270V5 - Intel E3-1270V5 3.60G 4C 80W PROC

Intel Xeon E3-1270V5. Processor family: Intel® Xeon® E3 v5, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 64 GB, Memory types supported by processor: DDR4-SDRAM, DDR3L-SDRAM. Market segment: Server, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 4 GHz. Package width: 2.76" (70 mm), Package depth: 4.57" (116 mm), Package height: 3.98" (101 mm)



Specification:



Processor
Processor base frequency	3.6 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Skylake
Memory bandwidth supported by processor (max)	34.1 GB/s
Thermal Design Power (TDP)	80 W
Processor cache	8 MB
Processor ARK ID	88177
Processor model	E3-1275V5
Processor threads	8
System bus rate	8 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.55 - 1.52 V
Processor boost frequency	4 GHz
Stepping	R0
Bus type	DMI3
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel® Xeon® E3 v5
Processor cores	4
Box	Yes
Processor socket	LGA 1151 (Socket H4)
Processor code	SR2LK
Processor series	Intel Xeon E3-1200 v5
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory voltage supported by processor	1.35 V
Supported memory types	DDR4-SDRAM, DDR3L-SDRAM
Memory channels	Dual-channel
ECC	Yes
Graphics
Discrete graphics card	No
On-board graphics card outputs supported	Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI
On-board graphics card maximum resolution (DisplayPort)	4096 x 2304 pixels
On-board graphics card ID	0x191D
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	4096 x 2304 pixels
On-board graphics card 4K support	Yes
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4
On-board graphics card model	Intel® HD Graphics P530
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	400 MHz
Discrete graphics card model	Not available
Maximum graphics card memory	64 GB
Power
Thermal Design Power (TDP)	80 W
VID Voltage Range	0.55 - 1.52 V
Technical details
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Graphics & IMC lithography	14 nm
Embedded options available	Yes
CPU configuration (max)	1
Processor code	SR2LK
Graphics output	eDP/DP/HDMI/DVI
Product type	Processor
Processor cache	8192 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Video decoding	Yes
Thermal Design Power (TDP)	80 W
Supported memory types	DDR4-SDRAM, DDR3L-SDRAM
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Status	Launched
Processor series	Intel Xeon E3-1200 v5
Maximum resolution & refresh rate (VGA)	N/A
Maximum resolution & refresh rate (Integrated Flat Panel)	4096x2304@60Hz
Maximum resolution & refresh rate (HDMI)	4096x2304@24Hz
Maximum resolution & refresh rate (DisplayPort)	4096x2304@60Hz
Market segment	Server
Launch date	Q4'15
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	8
Maximum memory	64 GB
Intel TSX-NI version	1.00
Processor brand name	Intel Xeon
Last change	63903513
Maximum resolution (WiDi)	1080p
Product family	Intel Xeon Processor E3 v5 Family
Maximum graphics card memory	64 GB
Processor ID	0x191D
Bus speed	8 GT/s
Features
On-board graphics card ID	0x191D
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	80 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	88177
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Graphics & IMC lithography	14 nm
Embedded options available	Yes
CPU configuration (max)	1
Processor code	SR2LK
Market segment	Server
Harmonized System (HS) code	85423119
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Intel® OS Guard	Yes
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel TSX-NI version	1.00
Intel® Boot Guard	Yes
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	4 GHz
Intel® Transactional Synchronization Extensions	Yes
Packaging data
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package weight	13.2 oz (373 g)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package weight	13.2 oz (373 g)
Other features
Video decoding	Yes
Maximum internal memory	64 GB
Maximum internal memory	65536 MB
CPU configuration (max)	1
Compatibility	Intel Server Board S1200SPL
Processor code	SR2LK
Graphics output	eDP/DP/HDMI/DVI
