BXNUC10I5FNHN1 - Intel NUC KIT, NUC10I5FNHN W/US CORD
BXNUC10I5FNHN1 - Intel NUC KIT, NUC10I5FNHN W/US CORD
SKU:BXNUC10I5FNHN1
Regular price
$540.01 USD
Regular price
Sale price
$540.01 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

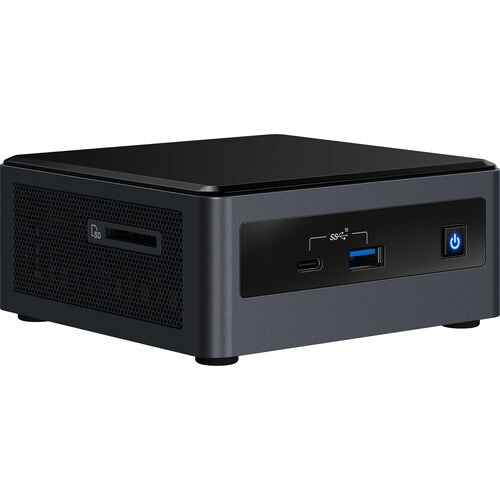

Intel NUC NUC10i5FNHN. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, Serial ATA III, RAID levels: 0, 1. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6 (802.11ax), Bluetooth version: 5.2. Cooling type: Active
Â
Specification:
Â
| Motherboard | |
|---|---|
| Motherboard form factor | UCFF |
| Processor socket | BGA 1528 |
| Processor | |
| Thermal Design Power (TDP) | 25 W |
| Built-in processor | Yes |
| Processor model | i5-10210U |
| Processor boost frequency | 4.2 GHz |
| Processor threads | 8 |
| Processor frequency | 1.6 GHz |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor cores | 4 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor codename | Comet Lake |
| CPU configuration (max) | 1 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Processor cache | 6 MB |
| Processor generation | 10th gen Intel® Core™ i5 |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 42.6 GB/s |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2666 MHz |
| Maximum internal memory | 64 GB |
| Removable memory card slot | SDXC with UHS-II support |
| Number of DIMM slots | 2 |
| Video | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Number of storage drives supported | 1 |
| Compatible memory cards | SDXC |
| Card reader integrated | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Number of displays supported | 3 |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Audio | |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Audio output channels | 7.1 channels |
| Network | |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel® I219-V |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ports & interfaces | |
| DisplayPort version | 1.2 |
| Combo headphone/mic port | Yes |
| Number of SATA III connectors | 2 |
| DC-in jack | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB ports quantity | 7 |
| Thunderbolt 3 ports quantity | 1 |
| M.2 card slot (storage) | 2242/2280 |
| Graphics output | HDMI 2.0b; USB-C (DP1.2) |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Number of M.2 (M) slots | 1 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Design | |
| Motherboard form factor | UCFF |
| Product type | Mini PC barebone |
| ARK ID | 195507 |
| On/off switch | Yes |
| Product colour | Black |
| Chassis type | UCFF |
| Status | Launched |
| Performance | |
| Motherboard form factor | UCFF |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Number of displays supported | 3 |
| Trusted Platform Module (TPM) | No |
| Processor socket | BGA 1528 |
| Operating system installed | No |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Audio output channels | 7.1 channels |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Consumer infrared Rx sensor | Yes |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Processor special features | |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Colour | |
| Product colour | Black |
| Power | |
| DC input voltage | 19 V |
| AC adapter output voltage | 19 V |
| Power supply type | External AC adapter |
| Technical details | |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Embedded options available | No |
| Trusted Platform Module (TPM) | No |
| Processor cores | 4 |
| Chassis type | UCFF |
| ARK ID | 195507 |
| Internal I/O | |
| Number of SATA connectors | 2 |
| Packaging data | |
| Power cord included | Yes |
| Management features | |
| On/off switch | Yes |
| Features | |
| Number of displays supported | 3 |
| Weight & dimensions | |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Height | 1.5" (38 mm) |
| Packaging content | |
| Power cord included | Yes |
| Processor included | Intel® Core™ i5-10210U Processor (6M Cache, up to 4.20 GHz) |
| Other features | |
| DC input voltage | 19 V |
| Embedded options available | No |
| Number of SATA connectors | 2 |
| Chassis type | UCFF |
| Processor ARK ID | 195436 |
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL, RGB |
| Launch date | Q4'19 |
