Description

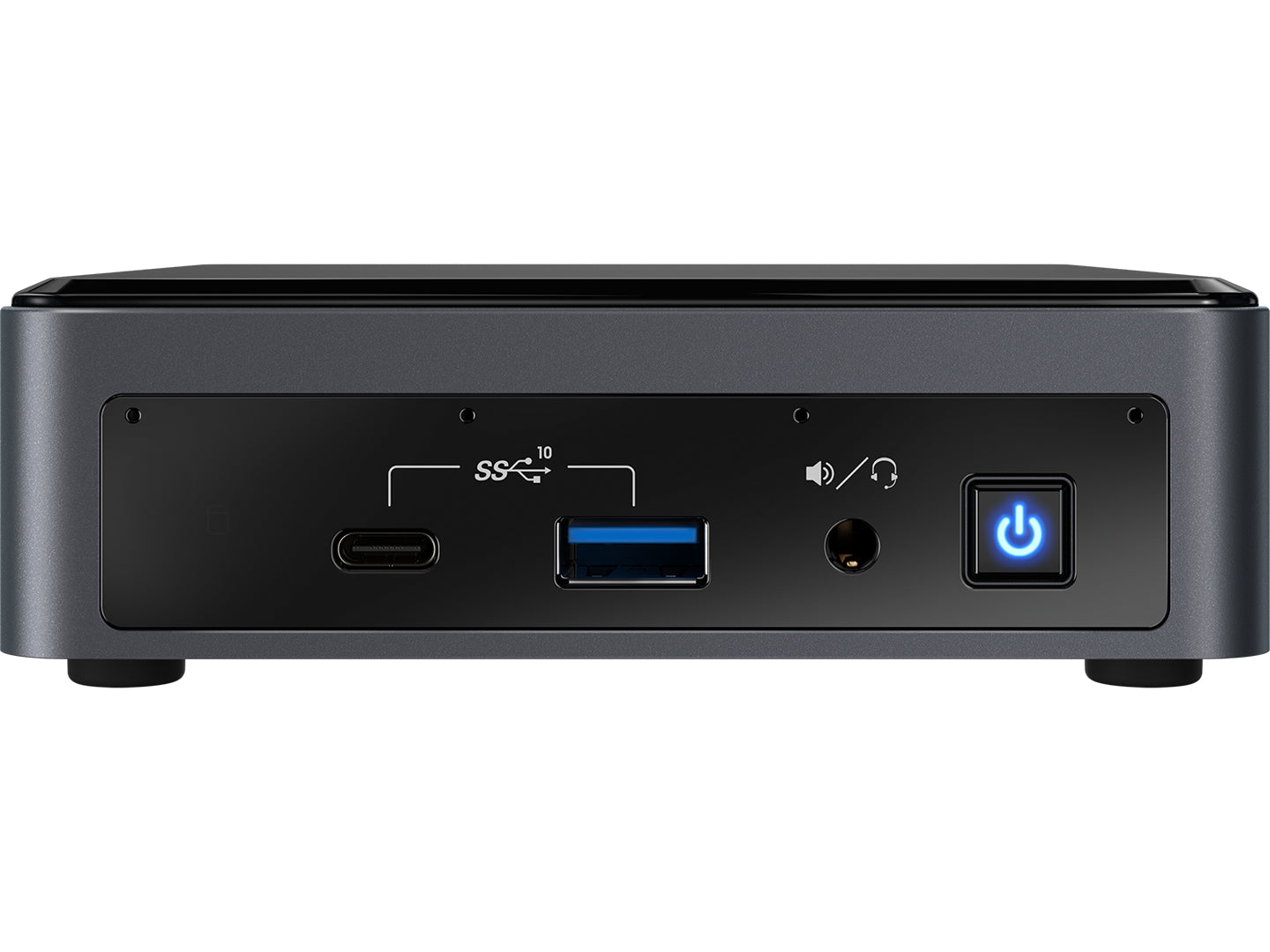

Intel NUC NUC10i7FNKN. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6 (802.11ax), Bluetooth version: 5.2. Cooling type: Active
Â
Specification:
Â
| Processor | |
|---|---|
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Whiskey Lake |
| Bus type | OPI |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR4-SDRAM,LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2133 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 15 W |
| PCI Express configurations | 1x4,2x2 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 10 W |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| ECC supported by processor | No |
| Processor cache type | Smart Cache |
| Configurable TDP-down frequency | 0.8 GHz |
| Processor cache | 8 MB |
| Processor frequency | 1.8 GHz |
| Processor model | i7-8565U |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.6 GHz |
| System bus rate | 4 GT/s |
| Processor socket | BGA 1528 |
| Processor threads | 8 |
| Processor cores | 4 |
| PCI Express slots version | 3.0 |
| Processor family | Intel Core i7 |
| Configurable TDP-up frequency | 2 GHz |
| Configurable TDP-up | 25 W |
| Memory | |
| ECC | No |
| Internal memory | 8 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | LPDDR3-SDRAM |
| Storage | |
| Intel® Optane™ Memory module installed | Yes |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 2 |
| Number of HDDs installed | 1 |
| Optical drive type | No |
| HDD capacity | 1000 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
| Total storage capacity | 1000 GB |
| Intel® Optane™ Memory module capacity | 16 GB |
| Total HDDs capacity | 1000 GB |
| Graphics | |
| Discrete graphics adapter | Yes |
| Discrete graphics adapter memory | 2 GB |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| On-board graphics adapter base frequency | 300 MHz |
| Maximum on-board graphics adapter memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0x3EA0 |
| On-board graphics adapter family | Intel® UHD Graphics |
| On-board graphics adapter | No |
| Discrete graphics adapter model | AMD Radeon 540X |
| Discrete graphics memory type | GDDR5 |
| On-board graphics adapter model | Intel® UHD Graphics |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Total number of SATA connectors | 2 |
| Number of SATA III connectors | 2 |
| HDMI version | 2.0b |
| Microphone in | No |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| DC-in jack | Yes |
| On/off button | Yes |
| M.2 card slot (storage) | 22x80 |
| Graphics output | HDMI 2.0b, Mini-DP 1.4 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | UCFF |
| Intel® Smart Response Technology | Yes |
| ARK ID | 189238 |
| Sustainability certificates | RoHS |
| Design | |
| Product colour | Black |
| Chassis type | UCFF |
| Performance | |
| Embedded options available | No |
| Number of displays supported | 3 |
| ARK ID | 189238 |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | No |
| Consumer infrared Rx sensor | Yes |
| Harmonized System (HS) code | 8471500150 |
| Removable memory card slot | SDXC with UHS-I support |
| Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1) |
| Status | Launched |
| Software | |
| Operating system architecture | 64-bit |
| Compatible operating systems | Windows 10, 64-bit* |
| Operating system installed | Windows 10 Home |
| Pre-installed operating system | Windows 10, 64-bit* |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel® Secure Key | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor package size | 46x24 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Rapid Storage Technology | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Processor ARK ID | 149091 |
| Intel® Optane™ Memory Ready | Yes |
| Intel 64 | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Power | |
| Power supply | 90 W |
| DC input voltage | 19 DC |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Height | 2.01" (51 mm) |
| Packaging content | |
| Display included | No |
| Power cord included | Yes |
| Processor included | Intel® Core™ i7-8565U Processor (8M Cache, up to 4.60 GHz) |
| Other features | |
| Number of displays supported | 3 |
| ARK ID | 189238 |
| USB ports quantity | 6 |
| Trusted Platform Module (TPM) | No |
| Number of SATA connectors | 2 |
| On-board graphics adapter | No |
| Processor manufacturer | Intel |
| Form factor | UCFF (4" x 4") |
| Compatible operating systems | Windows 10, 64-bit* |
| Consumer infrared Rx sensor | Yes |
| Harmonized System (HS) code | 8471500150 |
