Description

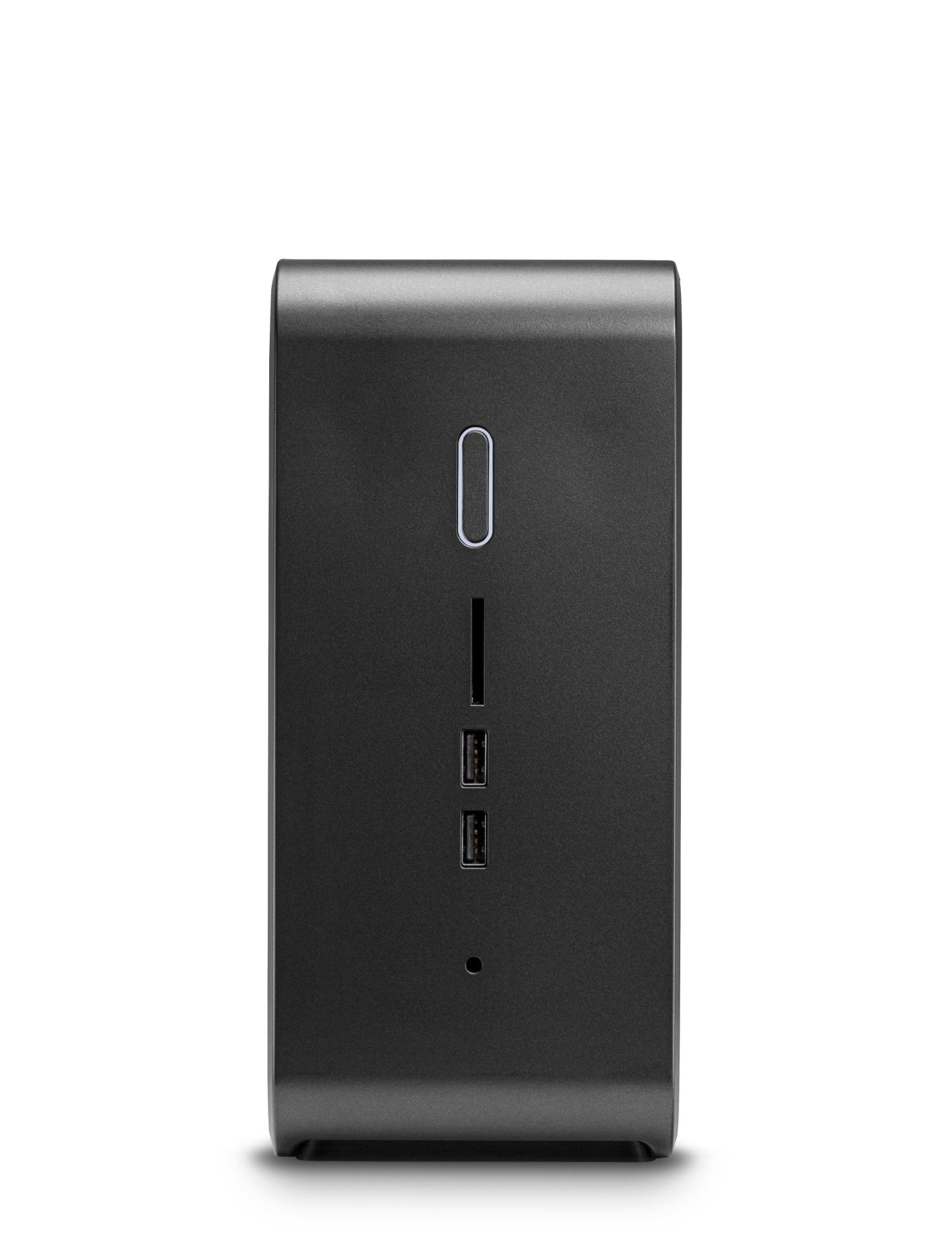

Intel NUC BXNUC9I5QNX1. Product type: PC barebone. Motherboard chipset: Intel® CM246, Processor socket: BGA 1440. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6 (802.11ax), Bluetooth version: 5.0
Â
Specification:
Â
| Motherboard | |
|---|---|
| Processor socket | BGA 1440 |
| Motherboard chipset | Intel® CM246 |
| Processor | |
| Thermal Design Power (TDP) | 45 W |
| Built-in processor | Yes |
| Processor model | i9-9980HK |
| Processor boost frequency | 5 GHz |
| Processor threads | 16 |
| Processor frequency | 2.4 GHz |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor cores | 8 |
| Processor family | Intel® Core™ i9 |
| Motherboard chipset | Intel® CM246 |
| Processor manufacturer | Intel |
| Processor codename | Coffee Lake |
| CPU configuration (max) | 1 |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Processor cache | 16 MB |
| Processor generation | 9th gen Intel® Core™ i9 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 42.6 GB/s |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2400,2666 MHz |
| Maximum internal memory | 64 GB |
| Removable memory card slot | SDXC with UHS-II support |
| Number of DIMM slots | 2 |
| Video | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Number of storage drives supported | 3 |
| Compatible memory cards | SDXC |
| Card reader integrated | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Number of displays supported | 3 |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Audio | |
| Audio output channels | 7.1 channels |
| Network | |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I219LM |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| Number of SATA III connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| HDMI version | 2.0a |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB ports quantity | 11 |
| Thunderbolt 3 ports quantity | 2 |
| M.2 card slot (storage) | 2 via PCH + 1 via CPU (NVMe) |
| Graphics output | 2x Thunderbolt 3, HDMI 2.0a |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Design | |
| Product type | PC barebone |
| ARK ID | 190107 |
| Cooling type | Active |
| Product colour | Black |
| Product series | Intel® NUC Kit with 9th Generation Intel® Core™ Processors |
| Status | Launched |
| Performance | |
| Windows operating systems supported | Windows 10 x64 |
| Number of displays supported | 3 |
| Trusted Platform Module (TPM) | Yes |
| Processor socket | BGA 1440 |
| Operating system installed | No |
| Motherboard chipset | Intel® CM246 |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Audio output channels | 7.1 channels |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Supported RAID configuration | 2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1) |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Processor special features | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
| Intel Rapid Storage Technology | Yes |
| Embedded options available | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Colour | |
| Product colour | Black |
| Technical details | |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
| Intel Rapid Storage Technology | Yes |
| Embedded options available | No |
| Trusted Platform Module (TPM) | Yes |
| Processor cores | 8 |
| Cooling type | Active |
| ARK ID | 190107 |
| Internal I/O | |
| Number of SATA connectors | 3 |
| Packaging data | |
| Power cord included | No |
| Features | |
| Number of displays supported | 3 |
| Power | |
| AC adapter output voltage | 19 V |
| Power supply type | Internal power supply unit |
| Operational conditions | |
| Storage temperature (T-T) | 0 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Weight & dimensions | |
| Width | 9.37" (238 mm) |
| Depth | 8.5" (216 mm) |
| Height | 3.78" (96 mm) |
| Packaging content | |
| Power cord included | No |
| Processor included | Intel® Core™ i9-9980HK Processor (16M Cache, up to 5.00 GHz) |
| Other features | |
| Embedded options available | No |
| Number of SATA connectors | 3 |
| Processor ARK ID | 192990 |
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL |
| Launch date | Q1'20 |
