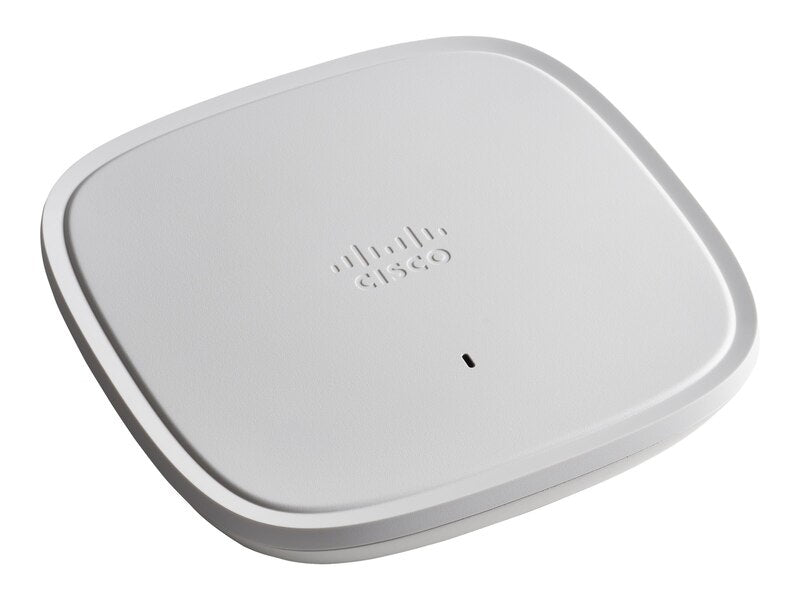

C9117AXI-H - Cisco CISCO CATALYST 9117AX SERIES

The Cisco® Catalyst® 9117 Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. Hyperconnectivity with steady performance in demanding environments. Exponential growth of Internet of Things (IoT) devices and next-generation applications. Advanced persistent security threats. All of these require a wireless network that provides resiliency and superior connectivity, integrated security with advanced classification and containment, and hardware and software innovations to automate, secure, and simplify networks. Updating your wireless infrastructure to one that will meet these needs is paramount for today’s digital business. The new generation of Cisco Catalyst 9100 Access Points, with high-performance Wi-Fi 6 (802.11ax) capabilities and innovations in RF performance, security, and analytics, enables end-to-end digitization and helps accelerate the rollout of business services by delivering beyond Wi-Fi.



Specification:



Data transmission
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Maximum data transfer rate	5000 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.412 - 2.472, 5.18 - 5.32 GHz
Web-based management	Yes
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3bz
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Channels quantity	21 channels
Certification	IEC 60950-1 EN 60950-1 AS/NZS 60950.1 UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043
Maximum data transfer rate	5000 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Internal memory	2048 MB
Flash memory	1024 MB
Wireless LAN features
Frequency band	2.412 - 2.472, 5.18 - 5.32 GHz
Channels quantity	21 channels
Network
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3bz
Certificates
Certification	IEC 60950-1 EN 60950-1 AS/NZS 60950.1 UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043
Memory
Internal memory	2048 MB
Flash memory	1024 MB
Features
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.412 - 2.472, 5.18 - 5.32 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3bz
Ethernet LAN data rates	100,1000,2500,5000 Mbit/s
Channels quantity	21 channels
Maximum data transfer rate	5000 Mbit/s
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Data unit aggregation	A-MPDU, A-MSDU
Cyclic Shift Diversity (CSD)	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Internal memory	2048 MB
Flash memory	1024 MB
Security
Security algorithms	AES,EAP-FAST,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WPA,WPA2
Management features
Web-based management	Yes
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Design
Placement	Wall
Product colour	White
LED indicators	Yes
Certification	IEC 60950-1 EN 60950-1 AS/NZS 60950.1 UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Antenna direction type	Omni-directional
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 180000" (0 - 4572 m)
Indication
LED indicators	Yes
Software
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Data unit aggregation	A-MPDU, A-MSDU
Cyclic Shift Diversity (CSD)	Yes
Weight & dimensions
Width	8.66" (220 mm)
Depth	8.66" (220 mm)
Weight	3.09 lbs (1.4 kg)
Height	1.94" (49.3 mm)
