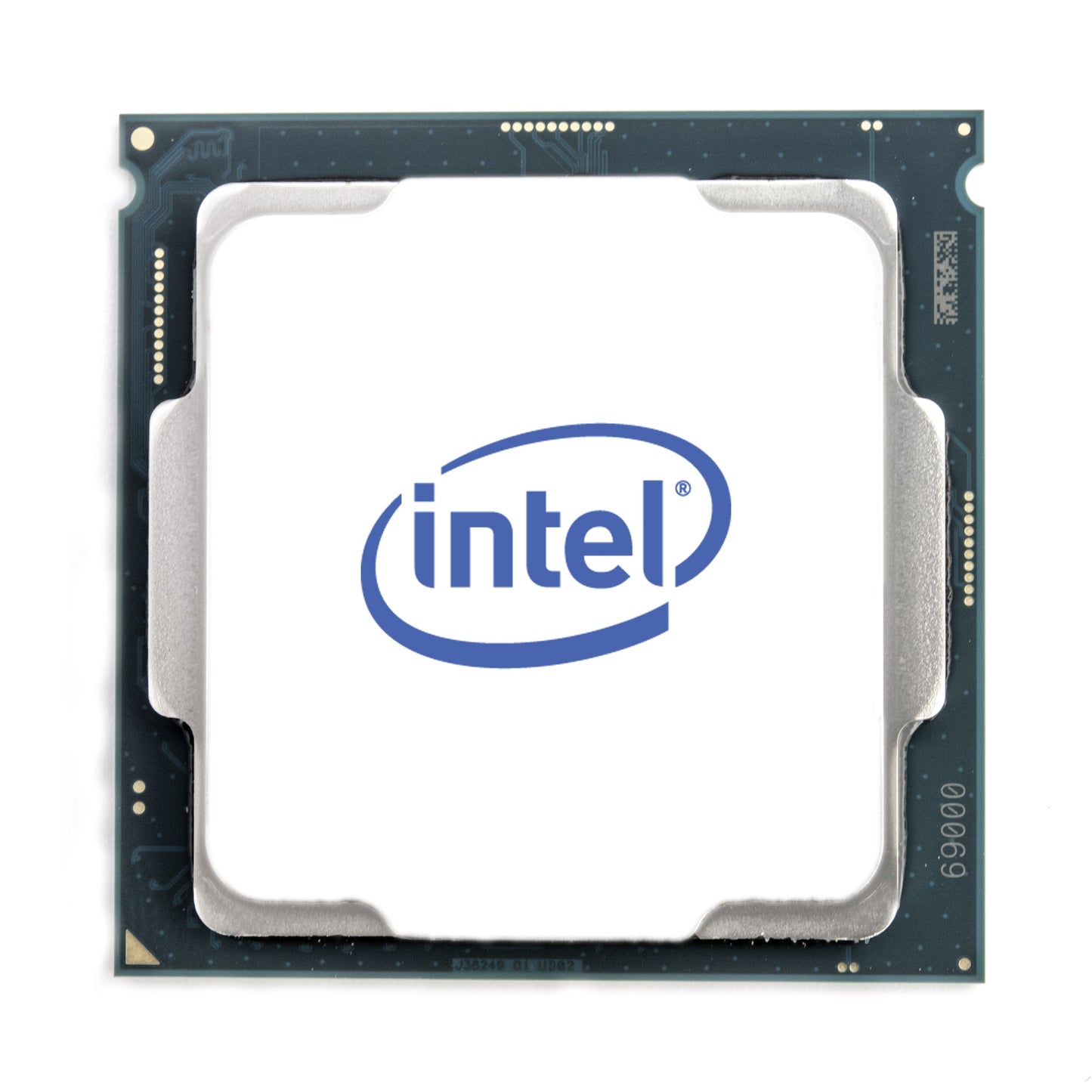

CD8067304237800 - Intel W-3175X 28 CORE 3.10GHZ, TRAY

Intel® Turbo Boost Technology Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t. Intel® vPro™ Platform Eligibility Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations. Intel® Hyper-Threading Technology Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner. Intel® Virtualization Technology (VT-x) Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions. Intel® Virtualization Technology for Directed I/O (VT-d) Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments. Intel® VT-x with Extended Page Tables (EPT) Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management. Intel® TSX-NI Intel® Transactional Synchronization Extensions New Instructions (Intel® TSX-NI) are a set of instructions focused on multi-threaded performance scaling. This technology helps make parallel operations more efficient via improved control of locks in software. Intel® 64 Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory. Instruction Set An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel’s instruction set this processor is compatible with. Instruction Set Extensions Instruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions). # of AVX-512 FMA Units Intel® Advanced Vector Extensions 512 (AVX-512), new instruction set extensions, delivering ultra-wide (512-bit) vector operations capabilities, with up to 2 FMAs (Fused Multiply Add instructions), to accelerate performance for your most demanding computational tasks. Enhanced Intel SpeedStep® Technology Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery. Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.



Specification:



Processor
Processor generation	3rd Generation Intel® Xeon® Scalable
Processor base frequency	2.3 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Ice Lake
Thermal Design Power (TDP)	205 W
Processor cache	48 MB
Processor ARK ID	212461
Processor model	6314U
Processor threads	64
Processor operating modes	64-bit
Processor boost frequency	3.4 GHz
Component for	Server/workstation
Processor lithography	10 nm
Processor family	Intel® Xeon® Gold
Processor cores	32
Box	No
Processor socket	FCLGA4189
High priority cores	12
High priority core frequency	2.5 GHz
Low priority cores	20
Low priority core frequency	2.1 GHz
Memory
Maximum internal memory supported by processor	6144 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Octa-channel
ECC	Yes
Graphics
Discrete graphics card	No
On-board graphics card model	Not available
On-board graphics card	No
Discrete graphics card model	Not available
Power
Thermal Design Power (TDP)	205 W
Technical details
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Execute Disable Bit	Yes
PCI Express slots version	4.0
Supported instruction sets	SSE4.2, AVX, AVX 2.0, AVX-512
Scalability	1S
Intel VT-x with Extended Page Tables (EPT)	Yes
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	205 W
Supported memory types	DDR4-SDRAM
Status	Launched
Market segment	Server
Launch date	Q2'21
Intel Virtualization Technology (VT-x)	Yes
Memory speed (max)	3200 MHz
AVX-512 Fused Multiply-Add (FMA) units	2
Target market	Cloud Computing
Features
Maximum number of PCI Express lanes	64
Thermal Design Power (TDP)	205 W
Processor package size	77.5 x 56.5 mm
Processor ARK ID	212461
Execute Disable Bit	Yes
PCI Express slots version	4.0
Supported instruction sets	SSE4.2, AVX, AVX 2.0, AVX-512
Scalability	1S
Embedded options available	No
Market segment	Server
Harmonized System (HS) code	85423119
Export Control Classification Number (ECCN)	5A992CN3
Commodity Classification Automated Tracking System (CCATS)	G178966
Processor special features
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Speed Shift Technology	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
AVX-512 Fused Multiply-Add (FMA) units	2
Intel® Volume Management Device (VMD)	Yes
Intel® Optane™ DC Persistent Memory Supported	Yes
Intel® Deep Learning Boost (Intel® DL Boost)	Yes
Mode-based Execute Control (MBE)	Yes
Intel® Run Sure Technology	Yes
Intel® Resource Director Technology (Intel® RDT)	Yes
Intel® Transactional Synchronization Extensions	Yes
Intel® Total Memory Encryption	Yes
Maximum Enclave Size Support for Intel® SGX	64 GB
Intel® Platform Firmware Resilience Support	Yes
Intel® Crypto Acceleration	Yes
Operational conditions
Tcase	81 °C
Logistics data
Harmonized System (HS) code	85423119
Weight & dimensions
Processor package size	77.5 x 56.5 mm
Other features
Maximum internal memory	6000 GB
