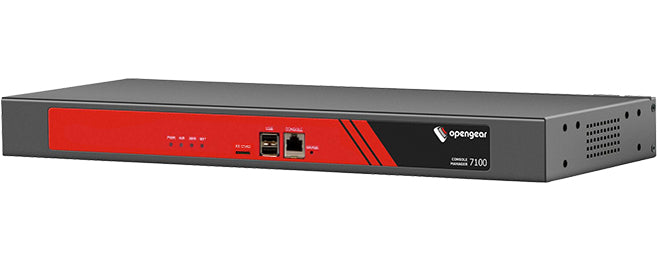

CM7116-2-DAC-US - OPENGEAR CM7100 - 16 RJ45 SERIAL CISCO PINOUT POR

A standard console server for data centers and large compute locations, the CM7100 offers 16-96 serial console ports with simple straight-through cabling to Cisco®-style serial consoles. Each unit has dual GbE ethernet connections, and interfaces with the Lighthouse Centralized Management platform. Cellular access is not available on the CM7100 unit. For high-density applications such as hyperscale locations, the CM7196 model offers 96 console ports in a 1U configuration.



Specification:



Technical details
Rack mounting	Yes
Security
Security algorithms	SSH-2
Ports & interfaces
Serial ports quantity	16
Ethernet LAN (RJ-45) ports	2
Console port	RS-232
Memory
Flash memory	4000 MB
Weight & dimensions
Weight	8.82 lbs (4 kg)
Dimensions (WxDxH)	17.3 x 6.89 x 1.77" (440 x 175 x 45 mm)
Power
Power consumption (max)	25 W
Power source type	AC
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
Operational conditions
Storage temperature (T-T)	-30 - 60 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
