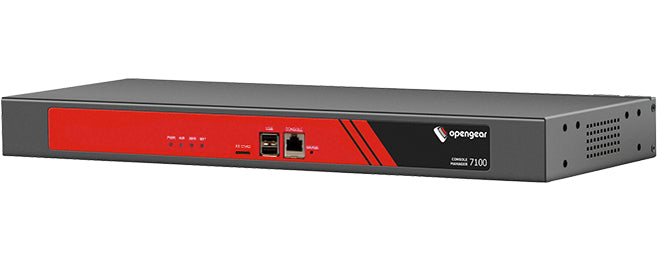

CM7148-2-SAC-US - OPENGEAR CM7100 - 48 RJ45 SERIAL CISCO PINOUT POR

A standard console server for data centers and large compute locations, the CM7100 offers 16-96 serial console ports with simple straight-through cabling to Cisco®-style serial consoles. Each unit has dual GbE ethernet connections, and interfaces with the Lighthouse Centralized Management platform. Cellular access is not available on the CM7100 unit. For high-density applications such as hyperscale locations, the CM7196 model offers 96 console ports in a 1U configuration.



Specification:



Technical details
Rack mounting	Yes
MIB support	Yes
Event logging	Yes
Management features
Management protocols	HTTPS, SSH, Nagios NSCA, NRPE, SNMP, TFTP, FTP
Security
Security algorithms	802.1x RADIUS, FIPS 140-2, HTTPS, IPSEC, SNMP, SSH, SSH-2, SSL/TLS
IP address filtering	Yes
Authentication method	PAP/CHAP, RADIUS w/ RSA SecurID & LDAP
Ports & interfaces
USB 2.0 ports quantity	2
Serial ports quantity	96
Ethernet LAN (RJ-45) ports	2
Console port	RJ-45
Memory
Internal memory	2048 MB
Flash memory	4000 MB
Weight & dimensions
Weight	8.82 lbs (4 kg)
Dimensions (WxDxH)	17.3 x 6.89 x 1.77" (440 x 175 x 45 mm)
Power
Power source type	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Number of power supply units	2
Operational conditions
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Certificates
Certification	CE, UL 1950, TUV, C-Tick, RoHS FCC Part 15 Subpart B Class A Radiated Emissions 30MHz – 1000MHz ICES-003 Issue 4 February 2004 Class A Radiated Emissions 30MHz – 1000MHz AS/NZS CISPR 22: 2004 Class A Radiated Emissions 30MHz – 1000MHz EN5502: 1998 + A1: 2000 + A2: 2003 Class A Radiated Emissions 30MHz – 1000MHz EN55024: 1998 +A1: 2001 +A2: 2003 IEC61000-4-2: 1995 ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect) IEC61000-4-3: 1995 Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80% IEC61000-4-4: 1995 EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines IEC61000-4-5: 1995 Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode IEC61000-4-6: 1996 Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz) IEC61000-4-11: 1994 Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods)
