Description

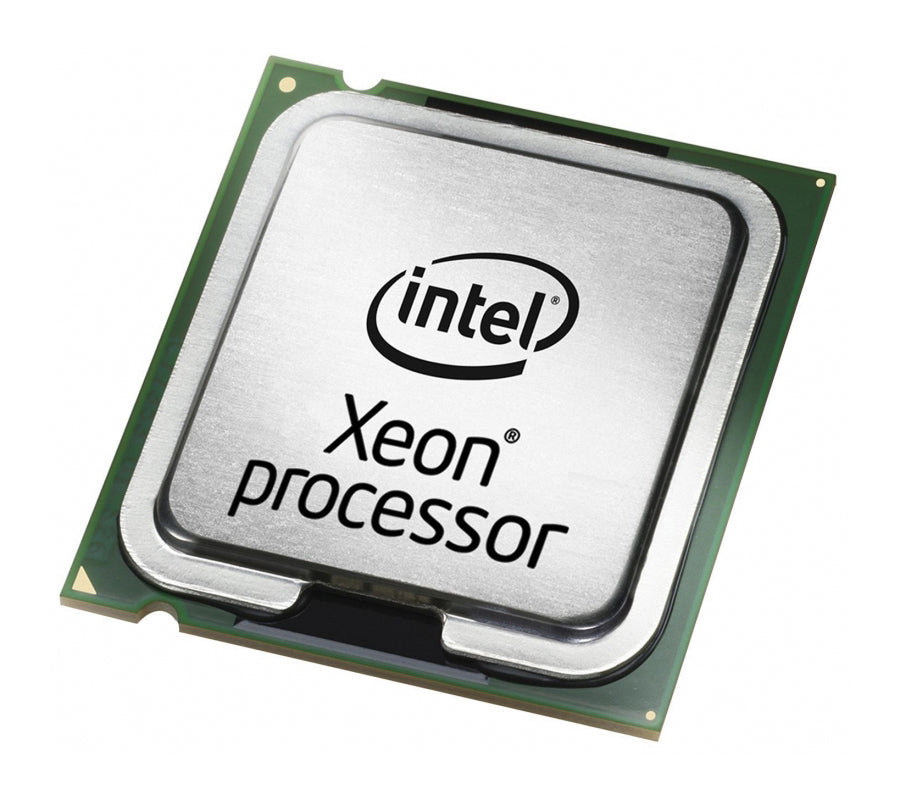

Intel Xeon E5-2670. Processor family: Intel® Xeon® E5 Family, Processor socket: LGA 2011 (Socket R), Component for: Server/workstation. Memory channels: Quad-channel, Maximum internal memory supported by processor: 750 GB, Memory types supported by processor: DDR3-SDRAM. Supported instruction sets: AVX, Scalability: 2S, Market segment: Server. Intel® Turbo Boost Technology 2.0 frequency: 3.3 GHz. Package type: Retail box
Specification:
| Processor | |
|---|---|
| Processor base frequency | 2.9 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Thermal Design Power (TDP) | 135 W |
| Processor cache | 20 MB |
| Processor ARK ID | 64596 |
| Processor model | E5-2690 |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0.6 - 1.35 V |
| Processor boost frequency | 3.8 GHz |
| Number of QPI links | 2 |
| CPU multiplier (bus/core ratio) | 38 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 32 nm |
| Processor family | Intel® Xeon® E5 Family |
| Processor cores | 8 |
| Box | No |
| Processor socket | LGA 2011 (Socket R) |
| Processor series | Intel Xeon E5-2600 |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 750 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Supported memory types | DDR3-SDRAM |
| Memory channels | Quad-channel |
| ECC | Yes |
| Power | |
| Thermal Design Power (TDP) | 135 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Technical details | |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| Scalability | 2S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Product type | Processor |
| Processor cache | 20480 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 135 W |
| Supported memory types | DDR3-SDRAM |
| Status | Discontinued |
| Processor series | Intel Xeon E5-2600 |
| Market segment | Server |
| Launch date | Q1'12 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 8 |
| Maximum memory | 384 GB |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 Family |
| Bus speed | 8 GT/s |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 135 W |
| Processor package size | 52.5mm x 45mm |
| Processor ARK ID | 64596 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX |
| Scalability | 2S |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Market segment | Server |
| Images Type Map |  |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 3.8 GHz |
| Operational conditions | |
| Tcase | 72 °C |
| Maximum operating temperature | 88.2 °C |
| Packaging data | |
| Package type | Retail box |
| Weight & dimensions | |
| Processor package size | 52.5mm x 45mm |
| Other features | |
| Maximum internal memory | 384 GB |
| Maximum internal memory | 393216 MB |
| CPU configuration (max) | 2 |
