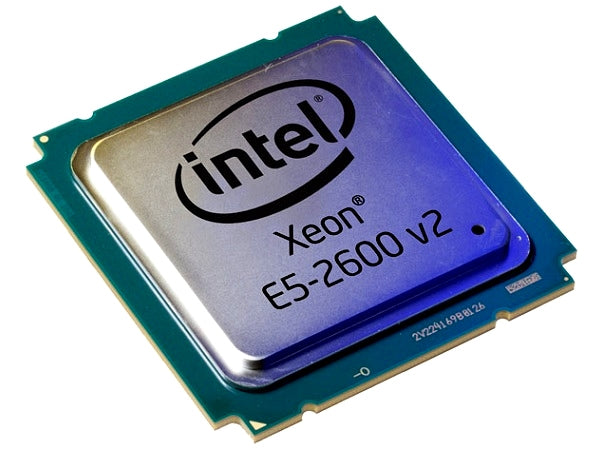

CM8063501287304 - Intel E5-2667V2 3.30G 8C 130W PROC

Intel Xeon E5-2667V2. Processor family: Intel® Xeon® E5 V2 Family, Processor socket: LGA 2011 (Socket R), Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, PCI Express configurations: x4, x8, x16, Supported instruction sets: AVX. Intel® Turbo Boost Technology 2.0 frequency: 4 GHz. Processor package size: 52.5mm x 45mm



Specification:



Processor
Processor base frequency	3.5 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Ivy Bridge EP
Memory bandwidth supported by processor (max)	59.7 GB/s
Thermal Design Power (TDP)	130 W
Processor cache	25 MB
Processor ARK ID	75268
Processor model	E5-2643V2
Processor threads	12
System bus rate	8 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.65 - 1.3 V
Processor boost frequency	3.8 GHz
Number of QPI links	2
Bus type	QPI
Component for	Server/workstation
Processor lithography	22 nm
Processor family	Intel® Xeon® E5 V2 Family
Processor cores	6
Box	No
Processor socket	LGA 2011 (Socket R)
Processor series	Intel Xeon E5-2600 v2
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Quad-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	130 W
VID Voltage Range	0.65 - 1.3 V
Technical details
Cache memory	25 MB
Intel TSX-NI	No
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
PCI Express slots version	3.0
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Scalability	2S
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
CPU configuration (max)	2
Product type	Processor
Processor cache	25600 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	130 W
Supported memory types	DDR3-SDRAM
Status	Launched
Product name	Intel Xeon E5-2643 v2 (25M Cache, 3.50 GHz)
Processor series	Intel Xeon E5-2600 v2
Processor core voltage	0.65–1.30
Physical Address Extension (PAE)	46 bit
Market segment	Server
Launch date	Q3'13
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	8
Born on date	Q3'13
Maximum memory	768 GB
Intel TSX-NI version	0.00
Processor brand name	Intel Xeon v2
Last change	63903513
Product family	Intel Xeon Processor E5 v2 Family
Bus speed	8 GT/s
Features
Maximum number of PCI Express lanes	40
Thermal Design Power (TDP)	130 W
Processor package size	52.5mm x 45mm
Processor ARK ID	75268
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Scalability	2S
Embedded options available	No
CPU configuration (max)	2
Physical Address Extension (PAE)	46 bit
Market segment	Server
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	No
Intel® OS Guard	Yes
Intel TSX-NI	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Intel TSX-NI version	0.00
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	3.8 GHz
Intel® Transactional Synchronization Extensions	No
Operational conditions
Tcase	74 °C
Weight & dimensions
Processor package size	52.5mm x 45mm
Other features
Cache memory	25 MB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Maximum internal memory	768 GB
Maximum internal memory	786432 MB
CPU configuration (max)	2
