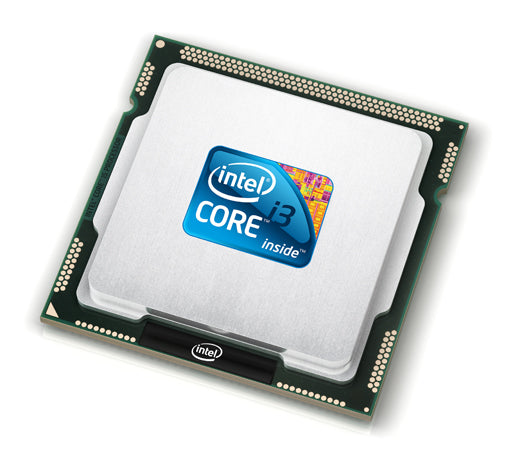

CM8063701137502 - Intel CORE I3-3220 LGA1155 3.30G 3MB

Intel Core i3-3220. Processor family: 3rd gen Intel® Core™ i3, Processor socket: LGA 1155 (Socket H2), Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM. On-board graphics adapter model: Intel® HD Graphics 2500, On-board graphics adapter base frequency: 650 MHz, On-board graphics adapter dynamic frequency (max): 1050 MHz. Market segment: Desktop, PCI Express configurations: 1x16,2x8,1x8,2x4, Supported instruction sets: SSE4.1,SSE4.2,AVX. Package type: Retail box



Specification:



Processor
Processor base frequency	2.9 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Ivy Bridge
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	35 W
Processor cache	3 MB
Processor ARK ID	65703
Processor model	i5-3470T
Processor threads	4
System bus rate	5 GT/s
Processor operating modes	64-bit
Processor boost frequency	3.6 GHz
CPU multiplier (bus/core ratio)	29
Bus type	DMI
Component for	PC
Processor lithography	22 nm
Processor family	3rd gen Intel® Core™ i5
Processor cores	2
Box	No
Processor socket	LGA 1155 (Socket H2)
Processor series	Intel Core i5-3400 Desktop series
Processor cache type	Smart Cache
Generation	3rd Generation
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Dual-channel
Memory bandwidth (max)	25.6 GB/s
ECC	No
Graphics
On-board graphics adapter ID	0x152
Number of displays supported (on-board graphics)	3
On-board graphics adapter model	Intel® HD Graphics 2500
On-board graphics adapter	Yes
On-board graphics adapter dynamic frequency (max)	1100 MHz
On-board graphics adapter base frequency	650 MHz
Power
Thermal Design Power (TDP)	35 W
Technical details
Cache memory	3 MB
Thermal solution specification	2011B
Intel TSX-NI	No
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel FDI Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8,2x4
Supported instruction sets	SSE4.1,SSE4.2,AVX
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Embedded options available	No
CPU configuration (max)	1
Product type	Processor
Processor cache	3072 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	35 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Core i5-3470T (3M Cache, up to 3.60 GHz)
Processor series	Intel Core i5-3400 Desktop series
Market segment	Desktop
Launch date	Q2'12
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Graphics max dynamic frequency	1.10 GHz
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q2'12
Maximum memory	32 GB
Intel TSX-NI version	0.00
Processor brand name	Intel Core i5 vPro Intel Core i5 vPro Processor
Last change	63903513
Product family	3rd Generation Intel Core i5 Processors
Processor ID	0x152
Bus speed	5 GT/s
Features
On-board graphics adapter ID	0x152
Thermal Design Power (TDP)	35 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	65703
Thermal solution specification	2011B
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8,2x4
Supported instruction sets	SSE4.1,SSE4.2,AVX
Embedded options available	No
CPU configuration (max)	1
Market segment	Desktop
Images Type Map
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel TSX-NI	No
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel FDI Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel TSX-NI version	0.00
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	3.6 GHz
Intel® Transactional Synchronization Extensions	No
Operational conditions
Tcase	65 °C
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Other features
Cache memory	3 MB
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
CPU configuration (max)	1
