Description

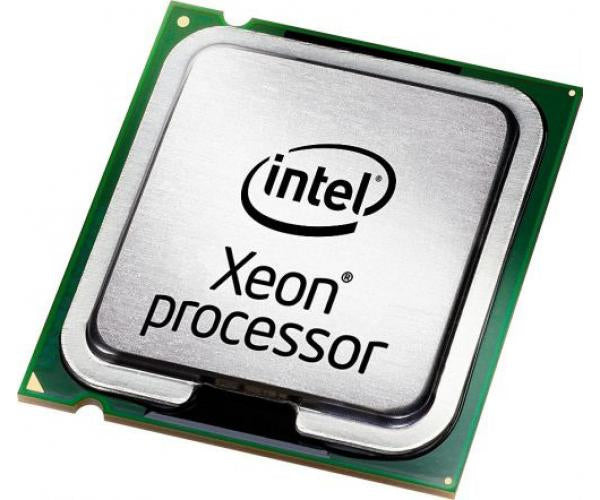

Intel Xeon E5-2628LV3. Processor family: Intel Xeon E5 v3, Processor socket: LGA 2011-v3, Processor lithography: 22 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Embedded, PCI Express configurations: x4, x8, x16, Supported instruction sets: AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 2.5 GHz. Processor package size: 52.5mm x 45mm
Specification:
| Processor | |
|---|---|
| Processor base frequency | 2.8 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Haswell |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| Thermal Design Power (TDP) | 140 W |
| Processor cache | 10 MB |
| Processor ARK ID | 82761 |
| Processor model | E5-1603V3 |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0.65 - 1.3 V |
| Stepping | R2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 22 nm |
| Processor family | Intel Xeon E5 v3 |
| Processor cores | 4 |
| Box | No |
| Processor socket | LGA 2011-v3 |
| Processor code | SR20K |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 140 W |
| VID Voltage Range | 0.65 - 1.3 V |
| Technical details | |
| Cache memory | 10 MB |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| PCI Express slots version | 3.0 |
| PCI Express configurations | x4, x8, x16 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Physical Address Extension (PAE) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR20K |
| Product type | Processor |
| Processor cache | 10240 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 140 W |
| Supported memory types | DDR4-SDRAM |
| Status | Launched |
| Product name | Intel Xeon E5-1603 v3 (10M Cache, 2.80 GHz) |
| Processor core voltage | 0.65–1.30 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Launch date | Q3'14 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Born on date | Q3'14 |
| Maximum memory | 768 GB |
| Intel TSX-NI version | 0.00 |
| Processor brand name | Intel Xeon v2 |
| Last change | 63903513 |
| Bus speed | 0 GT/s |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 140 W |
| Processor package size | 52.5mm x 45mm |
| Processor ARK ID | 82761 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | x4, x8, x16 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR20K |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | No |
| Intel® OS Guard | Yes |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Operational conditions | |
| Tcase | 67.1 °C |
| Weight & dimensions | |
| Processor package size | 52.5mm x 45mm |
| Other features | |
| Cache memory | 10 MB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 768 GB |
| Maximum internal memory | 786432 MB |
| CPU configuration (max) | 1 |
| Processor code | SR20K |
