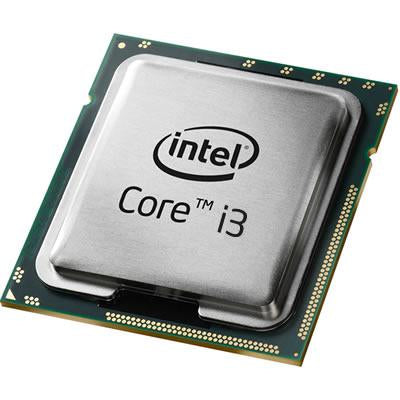

CM8064601482423 - Intel CORE I3-4330 LGA1150 3.5GHZ

Intel Core i3-4330. Processor family: 4th gen Intel® Core™ i3, Processor socket: LGA 1150 (Socket H3), Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM,DDR3L-SDRAM. On-board graphics adapter model: Intel® HD Graphics 4600, Maximum on-board graphics adapter memory: 2 GB, On-board graphics adapter outputs supported: Embedded DisplayPort (eDP),DisplayPort,HDMI,DVI,VGA (D-Sub). Market segment: Desktop, PCI Express configurations: 1x16,2x8,1x8+2x4, Supported instruction sets: SSE4.1,SSE4.2,AVX 2.0. Package width: 2.76" (70 mm), Package depth: 4.57" (116 mm), Package height: 3.98" (101 mm)



Specification:



Processor
Processor base frequency	3.2 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Haswell
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	53 W
Processor cache	3 MB
Processor ARK ID	77775
Processor model	G3420
Processor threads	2
System bus rate	5 GT/s
Processor operating modes	64-bit
Bus type	DMI
Component for	PC
Processor lithography	22 nm
Processor family	Intel Pentium G
Processor cores	2
Box	No
Processor socket	LGA 1150 (Socket H3)
Processor series	Intel Pentium G3000 series for Desktop
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM,DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM,DDR3L-SDRAM
Memory channels	Dual-channel
ECC	Yes
Graphics
On-board graphics adapter outputs supported	Embedded DisplayPort (eDP),DisplayPort,HDMI,DVI,VGA (D-Sub)
On-board graphics adapter maximum resolution (DisplayPort)	2560 x 1600 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel)	2560 x 1600 pixels
On-board graphics adapter refresh rate at maximum resolution (HDMI)	60 Hz
On-board graphics adapter refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
On-board graphics adapter refresh rate at maximum resolution (VGA)	60 Hz
Maximum on-board graphics adapter memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter maximum resolution (HDMI)	1920 x 1080 pixels
On-board graphics adapter maximum resolution (VGA)	1920 x 1200 pixels
On-board graphics adapter DirectX version	11.1/12
On-board graphics adapter OpenGL version	4.3
On-board graphics adapter model	Intel® HD Graphics
On-board graphics adapter	Yes
On-board graphics adapter dynamic frequency (max)	1150 MHz
On-board graphics adapter base frequency	350 MHz
Maximum graphics adapter memory	1.7 GB
Power
Thermal Design Power (TDP)	53 W
Technical details
Intel Stable Image Platform Program (SIPP)	No
Thermal solution specification	PCG 2013C
Intel TSX-NI	No
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8+2x4
Supported instruction sets	SSE4.1,SSE4.2
Scalability	1S
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Graphics & IMC lithography	22 nm
Embedded options available	Yes
CPU configuration (max)	1
AMD VISION FX Technology	No
AMD Virtualization Technology	No
AMD Turbo CORE technology	No
AMD Optimization for Cloud Computing	No
AMD HyperTransport Technology	No
AMD HD Internet Technology	No
AMD Cool'n'Quiet Technology	No
Graphics output	eDP/DP/HDMI/DVI/VGA
Product type	Processor
Processor cache	3072 KB
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Thermal Design Power (TDP)	53 W
Supported memory types	DDR3-SDRAM,DDR3L-SDRAM
Status	Launched
Processor series	Intel Pentium G3000 series for Desktop
Number of graphics cores	10
Maximum resolution & refresh rate (VGA)	1920x1200@60Hz
Maximum resolution & refresh rate (Integrated Flat Panel)	2560x1600@60Hz
Maximum resolution & refresh rate (HDMI)	1920x1080@60Hz
Maximum resolution & refresh rate (DisplayPort)	2560x1600@60Hz
Market segment	Desktop
Launch date	Q3'13
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	0.00
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Maximum memory	32 GB
Intel TSX-NI version	0.00
Processor brand name	Intel Pentium
Last change	63903513
Product family	Intel Pentium Processor
Maximum graphics adapter memory	1.7 GB
Bus speed	5 GT/s
Features
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	53 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	77775
Thermal solution specification	PCG 2013C
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8+2x4
Supported instruction sets	SSE4.1,SSE4.2
Scalability	1S
Graphics & IMC lithography	22 nm
Embedded options available	Yes
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	3A991
Commodity Classification Automated Tracking System (CCATS)	NA
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Optane™ Memory Ready	No
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
AMD VISION FX Technology	No
AMD Virtualization Technology	No
AMD Turbo CORE technology	No
AMD Optimization for Cloud Computing	No
AMD HyperTransport Technology	No
AMD HD Internet Technology	No
AMD Cool'n'Quiet Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI version	0.00
Intel® vPro™ Platform Eligibility	No
Intel® Transactional Synchronization Extensions	No
Operational conditions
Tcase	72 °C
Packaging data
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package weight	11.9 oz (338 g)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Width	1.48" (37.5 mm)
Depth	1.48" (37.5 mm)
Package weight	11.9 oz (338 g)
Other features
Intel® Virtualization Technology (Intel® VT)	VT-x
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
CPU configuration (max)	1
Graphics output	eDP/DP/HDMI/DVI/VGA
