Description

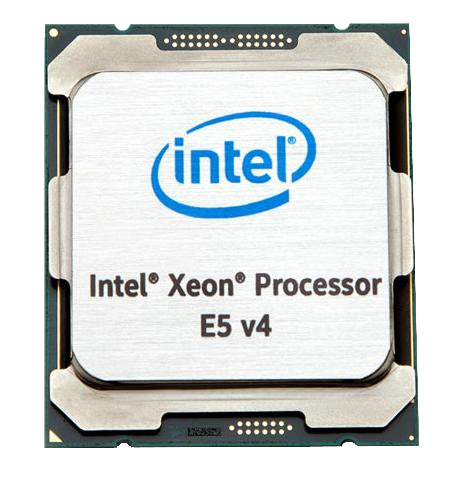

Intel Xeon E5-4655V4. Processor family: Intel® Xeon® E5 v4, Processor socket: LGA 2011-v3, Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 1536 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, PCI Express configurations: 1x16,1x4,1x8, Supported instruction sets: AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 3.2 GHz. Processor package size: 45mm x 52.5mm
Specification:
| Processor | |
|---|---|
| Processor base frequency | 1.8 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Broadwell |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Thermal Design Power (TDP) | 75 W |
| Processor cache | 35 MB |
| Processor ARK ID | 91759 |
| Processor model | E5-2648LV4 |
| Processor threads | 28 |
| System bus rate | 9.6 GT/s |
| Processor operating modes | 64-bit |
| VID Voltage Range | 0 - 0 V |
| Processor boost frequency | 2.5 GHz |
| Stepping | M0 |
| Number of QPI links | 2 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® E5 v4 |
| Processor cores | 14 |
| Box | No |
| Processor socket | LGA 2011-v3 |
| Processor code | SR2ND |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 1536 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics adapter | No |
| Power | |
| Thermal Design Power (TDP) | 75 W |
| VID Voltage Range | 0 - 0 V |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Physical Address Extension (PAE) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 2 |
| Processor code | SR2ND |
| Product type | Processor |
| Processor cache | 35840 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 75 W |
| Supported memory types | DDR4-SDRAM |
| Status | Launched |
| Processor series | Intel Xeon E5-2600 v4 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Embedded |
| Launch date | Q1'16 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 0.00 |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 9.6 |
| Intel TSX-NI version | 1.00 |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 v4 Family |
| Bus speed | 9.6 GT/s |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 75 W |
| Processor package size | 45mm x 52.5mm |
| Processor ARK ID | 91759 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 2 |
| Processor code | SR2ND |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Embedded |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel® OS Guard | Yes |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 0.00 |
| Intel TSX-NI version | 1.00 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 2.5 GHz |
| Intel® Transactional Synchronization Extensions | Yes |
| Operational conditions | |
| Tcase | 87 °C |
| Weight & dimensions | |
| Processor package size | 45mm x 52.5mm |
| Other features | |
| Maximum internal memory | 1500 GB |
| Maximum internal memory | 1572864 MB |
| CPU configuration (max) | 2 |
| Compatibility | Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR |
| Processor code | SR2ND |
