Description

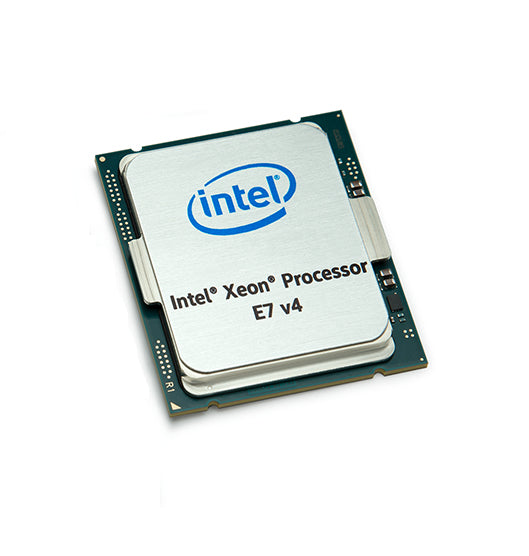

Intel Xeon E7-4850V4. Processor family: Intel Xeon E7 v4, Processor socket: LGA 2011 (Socket R), Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 3072 GB, Memory types supported by processor: DDR4-SDRAM, DDR3-SDRAM. Market segment: Server, PCI Express configurations: 1x16, 1x4, 1x8, Supported instruction sets: AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 2.8 GHz. Processor package size: 45mm x 52.5mm
Specification:
| Processor | |
|---|---|
| Processor base frequency | 2 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Broadwell |
| Memory bandwidth supported by processor (max) | 85 GB/s |
| Thermal Design Power (TDP) | 115 W |
| Processor cache | 35 MB |
| Processor ARK ID | 93811 |
| Processor model | E7-4830V4 |
| Processor threads | 28 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.8 GHz |
| Stepping | B0 |
| Number of QPI links | 3 |
| Bus type | QPI |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel Xeon E7 v4 |
| Processor cores | 14 |
| Box | No |
| Processor socket | LGA 2011 (Socket R) |
| Processor code | SR2S3 |
| Processor series | Intel Xeon E7-4800 v4 |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 3072 GB |
| Memory types supported by processor | DDR4-SDRAM,DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 85 GB/s |
| Supported memory types | DDR4-SDRAM,DDR3-SDRAM |
| Memory channels | Quad-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics adapter | No |
| Power | |
| Thermal Design Power (TDP) | 115 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x4,1x8 |
| Supported instruction sets | AVX 2.0 |
| Scalability | S4S |
| Physical Address Extension (PAE) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Embedded options available | No |
| CPU configuration (max) | 4 |
| Processor code | SR2S3 |
| Product type | Processor |
| Processor cache | 35840 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 115 W |
| Supported memory types | DDR4-SDRAM,DDR3-SDRAM |
| Status | Launched |
| Processor series | Intel Xeon E7-4800 v4 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Launch date | Q2'16 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Instruction Replay Technology version | 0.00 |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 8 |
| Intel TSX-NI version | 1.00 |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E7 v4 Family |
| Bus speed | 8 GT/s |
| Features | |
| Maximum number of PCI Express lanes | 32 |
| Thermal Design Power (TDP) | 115 W |
| Processor package size | 45mm x 52.5mm |
| Processor ARK ID | 93811 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x4,1x8 |
| Supported instruction sets | AVX 2.0 |
| Scalability | S4S |
| Physical Address Extension (PAE) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 4 |
| Processor code | SR2S3 |
| Physical Address Extension (PAE) | 46 bit |
| Market segment | Server |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel Instruction Replay Technology | No |
| Intel® OS Guard | Yes |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Instruction Replay Technology version | 0.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology 2.0 frequency | 2.8 GHz |
| Intel® Transactional Synchronization Extensions | Yes |
| Operational conditions | |
| Tcase | 68 °C |
| Weight & dimensions | |
| Processor package size | 45mm x 52.5mm |
| Other features | |
| Maximum internal memory | 3000 GB |
| Maximum internal memory | 3145728 MB |
| CPU configuration (max) | 4 |
| Processor code | SR2S3 |
