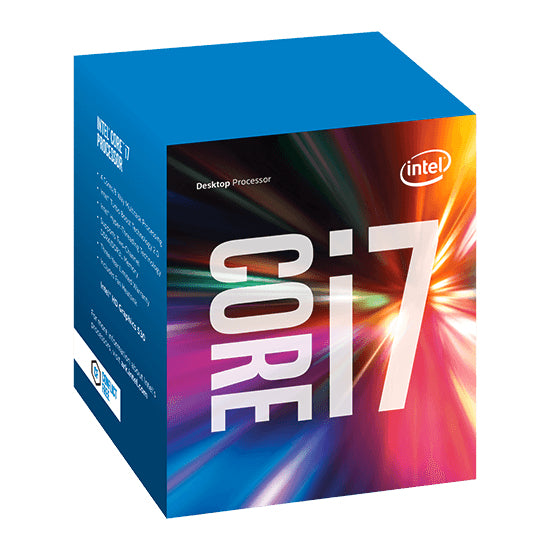

CM8067702868314 - Intel CORE I7-7700 LGA1151 4.2G 8M

Intel Core i7-7700. Processor family: Intel® Core™ i7, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 64 GB, Memory types supported by processor: DDR4-SDRAM, DDR3L-SDRAM. On-board graphics card model: Intel® HD Graphics 630, Maximum on-board graphics card memory: 64 GB, On-board graphics card outputs supported: DisplayPort, Embedded DisplayPort (eDP), HDMI. Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 4.2 GHz



Specification:



Processor
Processor generation	7th gen Intel® Core™ i7
Processor base frequency	2.9 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Kaby Lake
Configurable TDP-down	25 W
Thermal Design Power (TDP)	35 W
Processor cache	8 MB
Processor ARK ID	97122
Processor model	i7-7700T
Processor threads	8
System bus rate	8 GT/s
Processor operating modes	64-bit
Compatible chipsets	Intel® B150, Intel® H110, Intel® H170, Intel Q150, Intel® Q170, Intel® Z170
Processor boost frequency	3.8 GHz
Stepping	B0
Bus type	DMI3
Component for	PC
Processor lithography	14 nm
Processor family	Intel® Core™ i7
Processor cores	4
Box	No
Processor socket	LGA 1151 (Socket H4)
Processor code	SR339
Processor series	Intel Core i7-7700 Desktop series
Configurable TDP-down frequency	1.9 GHz
Processor cache type	Smart Cache
Generation	7th Generation
Memory
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Memory voltage supported by processor	1.35 V
Supported memory types	DDR4-SDRAM, DDR3L-SDRAM
Memory channels	Dual-channel
ECC	No
Graphics
On-board graphics card maximum resolution (DisplayPort)	4096 x 2304 pixels
On-board graphics card ID	5912
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	4096 x 2304 pixels
On-board graphics card 4K support	Yes
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card maximum resolution (HDMI)	4096 x 2304 pixels
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel® HD Graphics 630
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	350 MHz
Maximum graphics card memory	64 GB
Power
Configurable TDP-down	25 W
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	1.9 GHz
Technical details
Intel Stable Image Platform Program (SIPP)	Yes
Thermal solution specification	PCG 2015A
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Embedded options available	Yes
CPU configuration (max)	1
Processor code	SR339
Product type	Processor
Processor cache	8192 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Video decoding	Yes
Thermal Design Power (TDP)	35 W
Supported memory types	DDR4-SDRAM, DDR3L-SDRAM
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Status	Launched
Processor series	Intel Core i7-7700 Desktop series
Maximum resolution & refresh rate (Integrated Flat Panel)	4096x2304@60Hz
Maximum resolution & refresh rate (HDMI)	4096x2304@24Hz
Maximum resolution & refresh rate (DisplayPort)	4096x2304@60Hz
Market segment	Desktop
Launch date	Q1'17
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Configurable TDP-down frequency	1.9 GHz
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	8
Maximum memory	64 GB
Intel TSX-NI version	1.00
Processor brand name	7th Gen Intel Core i7 processors
Last change	63903513
Product family	7th Generation Intel Core i7 Processors
Maximum graphics card memory	64 GB
Processor ID	0x5912
Bus speed	8 GT/s
Features
On-board graphics card ID	5912
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	35 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	97122
Thermal solution specification	PCG 2015A
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Embedded options available	Yes
CPU configuration (max)	1
Processor code	SR339
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Intel® Optane™ Memory Ready	Yes
Intel® OS Guard	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel TSX-NI version	1.00
Intel® Boot Guard	Yes
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	3.8 GHz
Intel® Transactional Synchronization Extensions	Yes
Operational conditions
Tjunction	80 °C
Packaging data
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	2.76" (70 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Other features
Video decoding	Yes
Maximum internal memory	64 GB
Maximum internal memory	65536 MB
CPU configuration (max)	1
Processor code	SR339
