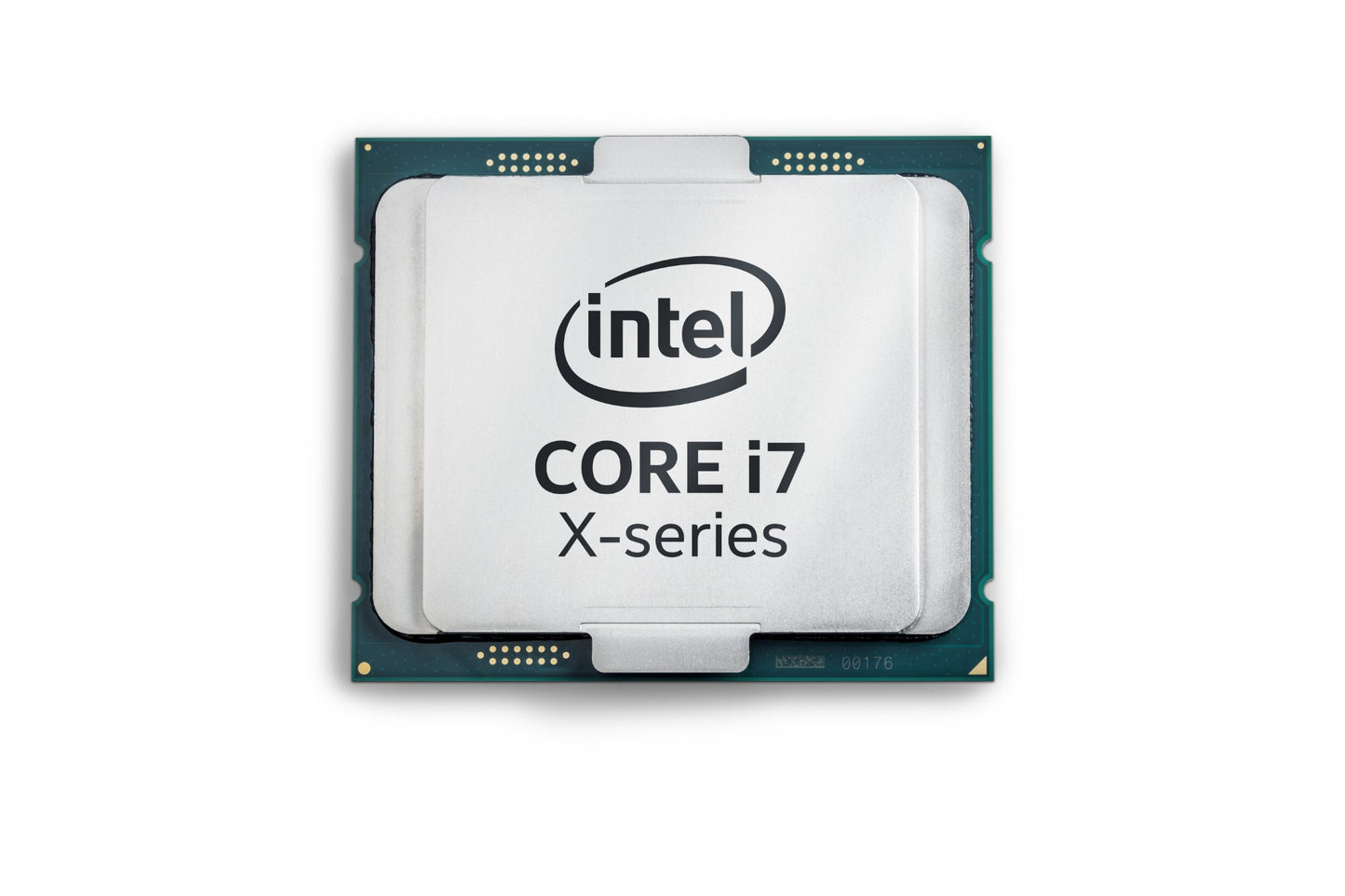

CM8067702868631 - Intel BOXED COREI7-7740X PROC EXTREME

Intel Core i7-7740X. Processor family: Intel® Core™ i7 X-series, Processor socket: LGA 2066 (Socket R4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 64 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Desktop, PCI Express configurations: 1x16,2x8,1x8+2x4, Supported instruction sets: SSE4.1,SSE4.2,AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 4.5 GHz. Package type: Retail box



Specification:



Processor
Processor base frequency	4 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Kaby Lake
Memory bandwidth supported by processor (max)	42 GB/s
Thermal Design Power (TDP)	112 W
Processor cache	6 MB
Processor ARK ID	121500
Processor model	i5-7640X
Processor threads	4
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	4.2 GHz
Stepping	B0
Bus type	DMI3
Component for	PC
Processor lithography	14 nm
Processor family	Intel® Core™ i5 X-series
Processor cores	4
Box	No
Processor socket	LGA 2066 (Socket R4)
Processor code	SR3FR
Processor cache type	Smart Cache
Generation	7th Generation
Memory
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	42 GB/s
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	No
Graphics
On-board graphics adapter	No
Power
Thermal Design Power (TDP)	112 W
Technical details
Thermal solution specification	PCG 2017X
Intel® Turbo Boost Technology	2.0
Intel® AES New Instructions (Intel® AES-NI)	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8+2x4
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Processor code	SR3FR
Product type	Processor
Processor cache	6144 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	112 W
Supported memory types	DDR4-SDRAM
Status	Discontinued
Market segment	Desktop
Launch date	Q2'17
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	8
Maximum memory	64 GB
Processor brand name	Intel Core i7 X-series Intel Core i7 X-series processor
Last change	63903513
Product family	Intel Core Processors
Bus speed	8 GT/s
Features
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	112 W
Processor ARK ID	121500
Thermal solution specification	PCG 2017X
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8+2x4
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Processor code	SR3FR
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Turbo Boost Technology	2.0
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Turbo Boost Technology 2.0 frequency	4.2 GHz
Operational conditions
Tjunction	100 °C
Packaging data
Package width	1.73" (44 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package weight	3.53 oz (100 g)
Package type	Retail box
Weight & dimensions
Package width	1.73" (44 mm)
Package depth	4.57" (116 mm)
Package height	3.98" (101 mm)
Package weight	3.53 oz (100 g)
Other features
Maximum internal memory	64 GB
Maximum internal memory	65536 MB
CPU configuration (max)	1
Processor code	SR3FR
