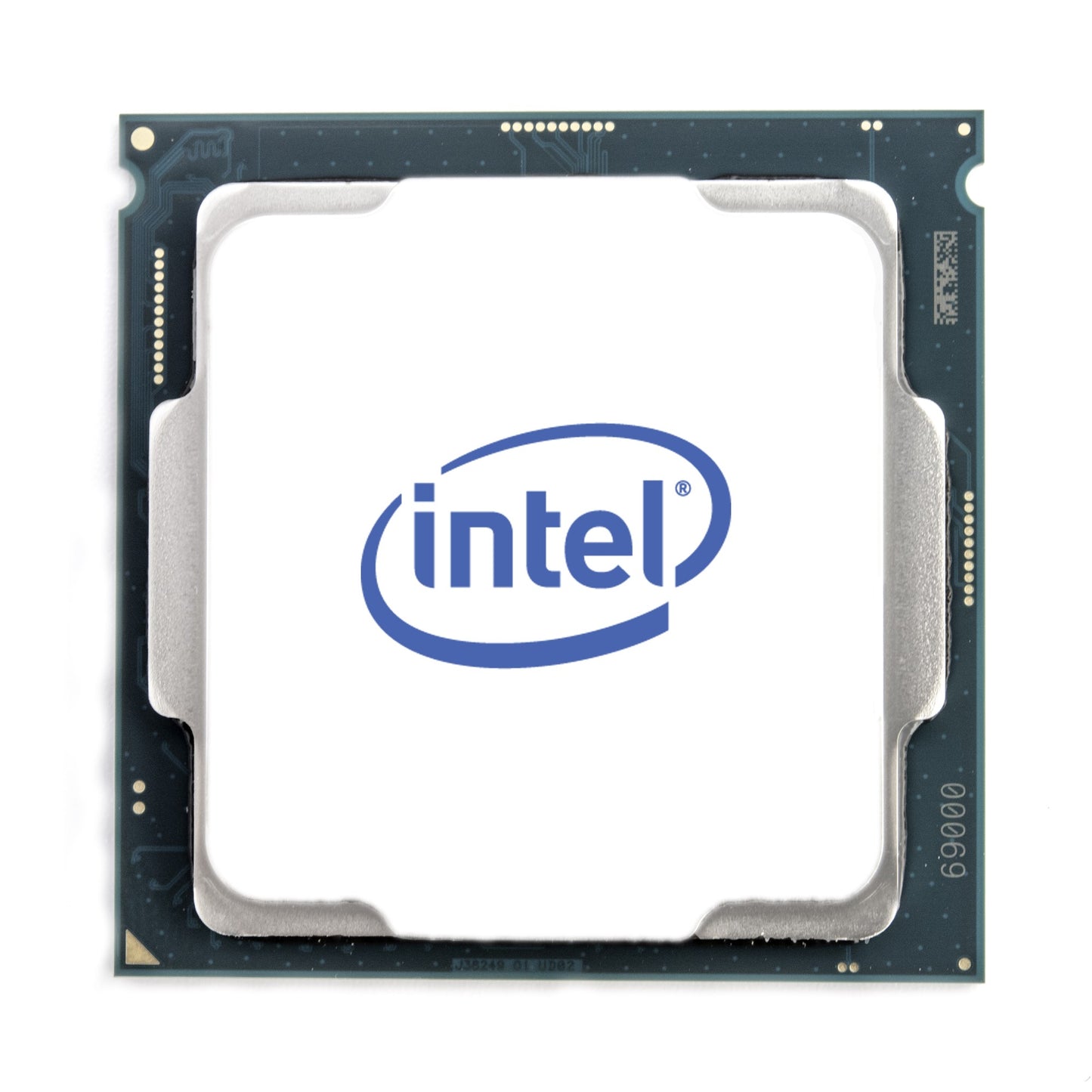

CM8068404170208 - Intel CORE I9-9900KS

Intel Core i9-9900KS. Processor family: Intel Core i9, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR4-SDRAM. On-board graphics adapter model: Intel® UHD Graphics 630, Maximum on-board graphics adapter memory: 64 GB, On-board graphics adapter base frequency: 350 MHz. Market segment: Desktop, PCI Express configurations: 1x16,2x8,1x8+2x4, Supported instruction sets: SSE4.1,SSE4.2,AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 5 GHz



Specification:



Processor
Processor base frequency	4 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Coffee Lake
Thermal Design Power (TDP)	95 W
Processor cache	12 MB
Processor ARK ID	191033
Processor model	E-2286G
Processor threads	12
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	4.9 GHz
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel Xeon E
Processor cores	6
Box	No
Processor socket	LGA 1151 (Socket H4)
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Graphics
Discrete graphics card	No
On-board graphics card maximum resolution (DisplayPort)	4096 x 2304 pixels
On-board graphics card ID	0x3E96
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)	4096 x 2304 pixels
On-board graphics card 4K support	Yes
On-board graphics card refresh rate at maximum resolution (HDMI)	24 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)	60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)	60 Hz
Maximum on-board graphics card memory	128 GB
Number of displays supported (on-board graphics)	3
On-board graphics card maximum resolution (HDMI)	4096 x 2160 pixels
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel UHD Graphics P630
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card base frequency	350 MHz
Discrete graphics card model	Not available
Maximum graphics card memory	128 GB
Power
Thermal Design Power (TDP)	95 W
Technical details
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Intel VT-x with Extended Page Tables (EPT)	Yes
Embedded options available	No
CPU configuration (max)	1
Product type	Processor
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	95 W
Supported memory types	DDR4-SDRAM
Status	Launched
Maximum resolution & refresh rate (DisplayPort)	4096x2304@60Hz
Market segment	Server
Launch date	Q2'19
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Maximum memory	128 GB
Maximum graphics card memory	128 GB
Processor ID	0x3E96
Bus speed	8 GT/s
Features
On-board graphics card ID	0x3E96
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	95 W
Processor package size	37.5mm x 37.5mm
Processor ARK ID	191033
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Market segment	Server
Harmonized System (HS) code	85423119
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Intel® Optane™ Memory Ready	Yes
Intel® OS Guard	Yes
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Boot Guard	Yes
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	4.9 GHz
Intel® Transactional Synchronization Extensions	Yes
Operational conditions
Tjunction	100 °C
Tcase	67.3 °C
Logistics data
Harmonized System (HS) code	85423119
Weight & dimensions
Processor package size	37.5mm x 37.5mm
Other features
Maximum internal memory	128 GB
CPU configuration (max)	1
