CM8132-EU - OPENGEAR CM8100 32 SERIAL 2 ETH DUAL AC

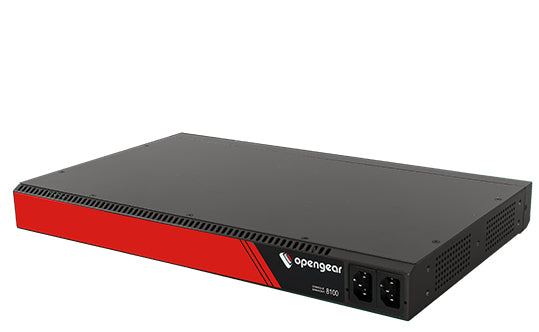

CM8100 Console Server The CM8100 is Opengear’s newest console manager for data centers and enterprise networks. Building on 18 years of Opengear product innovation and leadership, the CM8100 Console Manager provides up to 48 serial ports, enterprise-grade security using TPM 2.0 module, and independent monitoring using dual power supplies. Connect 16, 32, or 48 serial console ports with simple straight-through cabling to Cisco®-style serial consoles reliably regardless of the state of your production network. Host containerized applications to run across any platform or NetOps tools providing more agility and efficiency. Maximize your connectivity and keep data free from slowdowns with Dual Ethernet ports. Manage at scale through Opengear’s Lighthouse Management Software. Designed and purpose-built energy efficient without compromising performance, the CM8100 requires less power and cooling for a lower total cost of ownership and high reliability.



Specification:



Technical details
Zero Touch Provisioning (ZTP)	Yes
Web-based management	Yes
Temperature sensor	Yes
Product colour	Black, Red
Supported programming languages	Perl, Python
Rack mounting	Yes
MIB support	Yes
Sustainability certificates	CE, RoHS
Security
Security algorithms	SNMP, SSH
IP address filtering	Yes
Authentication method	TACACS+, RADIUS, Active Directory/OpenLDAP
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Console port	RS-232
AC outlet types	C14 coupler
Processor
Processor family	Marvel
Processor model	88F6820
Processor architecture	ARM Cortex-A9
Processor cores	2
Processor frequency	1600 MHz
Memory
RAM type	DDR4
RAM capacity	2000 MB
Flash memory	32000 MB
Weight & dimensions
Weight	9.92 lbs (4.5 kg)
Dimensions (WxDxH)	17.3 x 9.25 x 1.73" (440 x 235 x 44 mm)
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Operational conditions
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported	Cat5
