CSD1006USB - Tripp Lite CHARGING STATION 10-DEVICE USB DOCKING TABLETS IPADS E-READERS

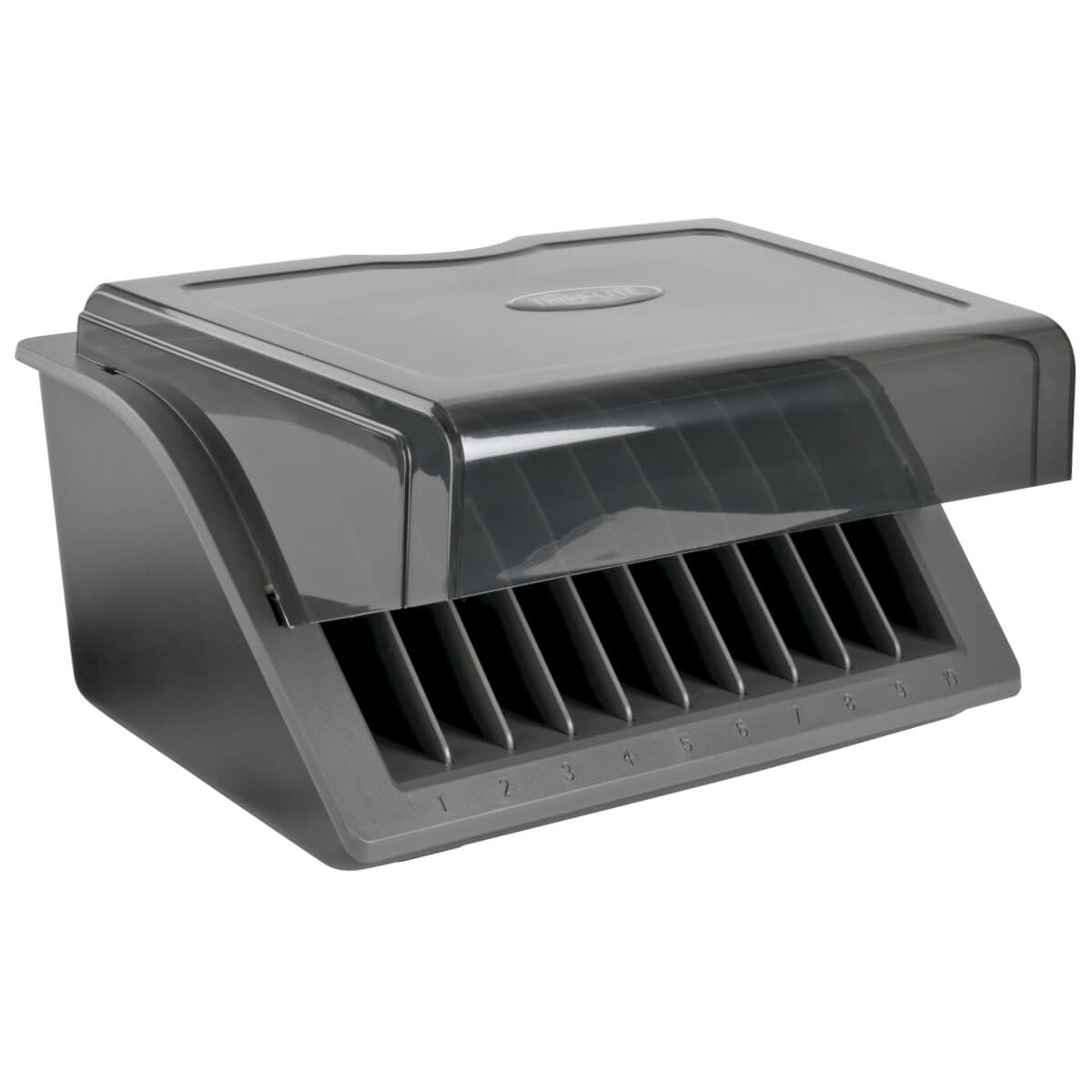

The CSD1006USB 10-Device Desktop USB Charging Station provides USB charging, secure storage and cord management for up to 10 tablets, laptops and e-readers up to 10.5 inches. Each slot is 1 1/4" wide. It’s recommended for schools, offices, warehouses, retail outlets, worksites, healthcare facilities and anywhere else multiple mobile devices are used. Devices fit into slots 1.25 inches wide and plug into the 10 USB ports as needed for proficient charging. The CSD1006USB delivers up to 5V 2.4A per port, which is plenty of power for charging battery-intensive devices. To protect your devices, the CSD1006USB prevents them from drawing more power than it is capable of supporting and stops charging a device when the device’s battery is at 100%. The CSD1006USB locks with the included keys to help prevent theft, damage or tampering. A cable with combination lock is also included to secure the charging station to a desk, table, cart or other flat surface. The six-foot AC input cord with NEMA 5-15P plug helps you place the charging station in a convenient location. Storage shelf dividers are easily removed to accommodate thicker devices. Cabling is secured beneath the shelf tray to alleviate clutter. Convenient USB Charging - 10 USB ports for charging tablets, laptops and e-readers up to 10.5 in. - Devices fit into slots 1.25 in. wide - Device USB charge cables plug into USB ports - 6 ft. AC input cord with right-angle NEMA 5-15P plug reaches convenient outlets - Recommended wherever multiple mobile devices are used—schools, offices, warehouses, etc. Comprehensive Protection - Delivers up to 5V 2.4A per port via BC 1.2 rapid charging - Protects against overheating, over-current and overcharging Complete Security - Locks with included keys to help prevent device theft, damage or tampering - Included combination cable lock secures the unit to a desk or cart Clutter-Reducing Organization - USB ports and cables store out of sight - Storage shelf dividers can be removed to accommodate thicker devices Package Includes - CSD1006USB 10-Device Desktop USB Charging Station - External power supply w/NEMA 5-15P plug (Input: 100–240V, 50/60 Hz; Output: 12V, 8A) - Enclosure unit with locking lid - USB charger enclosure mount - Combination cable lock - (2) Keys - Owner’s manual



Specification:



Performance
Country of origin	China
Charger type	Indoor
USB 2.0 ports quantity	32
Charger compatibility	Universal
Power source type	AC
Certification	FCC & IEC Class B, UL 60950
Design
Product colour	Black
Power
Output current	2400 mA
Input voltage	110 - 120 V
Input frequency	50/60 Hz
Weight & dimensions
Width	17.9" (455.9 mm)
Depth	23.6" (599.9 mm)
Height	14.7" (373.9 mm)
Weight	60.8 lbs (27.6 kg)
Packaging data
Cables included	AC
Package width	23.2" (590 mm)
Package depth	26.8" (680 mm)
Package height	17.9" (454.9 mm)
Package weight	67 lbs (30.4 kg)
Technical details
Sustainability certificates	RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	23.2" (590 mm)
Master (outer) case length	26.8" (680 mm)
Master (outer) case height	17.9" (454.9 mm)
Master (outer) case gross weight	67 lbs (30.4 kg)
Other features
User guide	Yes
