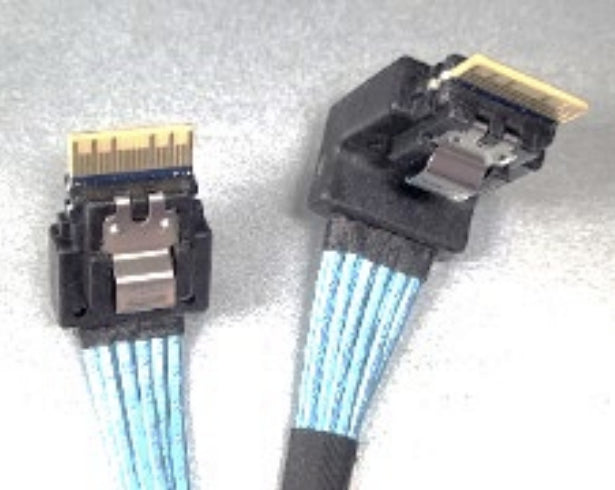

Intel 1U SLIMSAS CABLE X12 (CPU TO HSBP) KIT CYPCBLSL112KIT

Cable for 1U 12 x 2.5” system (M50CYP1UR212) to support PCIe NVMe drives in front drive bay Included Items: 1 x 412/420 mm splitter cable, connects server board CPU0 x4 SlimSAS A and B connectors (RRA) to HSBP x8 SlimSAS SSD0-1 connector (VT) 1 x 400/392 mm splitter cable, connects server board CPU1 x4 SlimSAS C and D connectors (RRA) to HSBP x8 SlimSAS SSD10-11 connector (VT) 1 x 350/342 mm splitter cable, connects server board CPU0 x4 SlimSAS C and D connectors (RRA) to HSBP x8 SlimSAS SSD2-3 connector (VT) 1 x 312/320 mm splitter cable, connects server board CPU1 x4 SlimSAS A and B connectors (RRA) to HSBP x8 SlimSAS SSD8-9 connector (VT)



Specification:



Features
Compatible products	Intel Server M50CYP, Intel Server Board M50CYP
Connector 2	SlimSAS
Connector 1	SlimSAS
Technical details
Compatible products	Intel Server M50CYP, Intel Server Board M50CYP
ARK ID	214909
Ports & interfaces
Connector 2	SlimSAS
Connector 1	SlimSAS
Other features
ARK ID	214909
