Description

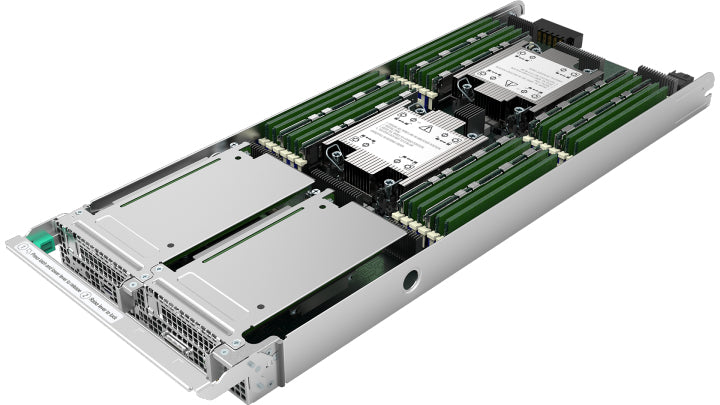

Intel Server System D50TNP1MHCPAC Compute Module. Motherboard chipset: Intel C621A, Processor manufacturer: Intel. Supported memory types: DDR4-SDRAM, Maximum internal memory: 6000 GB, Memory bandwidth (max): 204.8 GB/s. Supported storage drive interfaces: PCI Express, Serial ATA, RAID levels: 0, 1. On-board graphics card model: Aspeed AST2500. Ethernet interface type: 10 Gigabit Ethernet
Specification:
| Hard drive | |
|---|---|
| RAID levels | 0, 1 |
| Processor | |
| Built-in processor | No |
| Number of processors supported | 2 |
| Motherboard chipset | Intel C621A |
| Processor manufacturer | Intel |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 16 |
| Maximum internal memory | 2000 GB |
| ECC | Yes |
| Memory bandwidth (max) | 204.8 GB/s |
| Memory channels | Hexadeca-channel |
| Storage | |
| Number of storage drives supported | 2 |
| Supported storage drive interfaces | PCI Express, Serial ATA |
| RAID levels | 0, 1 |
| Performance | |
| Intel Advanced Management Technology | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Integrated BMC with IPMI | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Number of SATA connectors | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Expansion slots | |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 4.0 |
| PCI Express OCuLink connectors (NVMe support) | 8 |
| Features | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Integrated BMC with IPMI | Yes |
| Harmonized System (HS) code | 8473301180 |
| Export Control Classification Number (ECCN) | 5A002U |
| Commodity Classification Automated Tracking System (CCATS) | G157815L1 |
| Embedded options available | No |
| Number of UPI links | 3 |
| Intel Node Manager | Yes |
| Technical details | |
| USB ports quantity | 3 |
| Packaging content | (1) Intel® Server Board DDR4 D50TNP1SBCR (1) 1U half-width module tray – iPN K53210 (1) 1U compute module air duct – iPN K61940 (2) 1U PCIe Riser (x16 PCIe slot and M.2 Connector) for D50TNP1SBCR board TNP1UCRRISER (2) 1U riser bracket to support TNP1UCRRISER – iPN K25206 (1) 1U Air-Cooled front Heat Sink TNP1UHSF (1) 1U Air-Cooled Rear Heat Sink TNP1UHSB (2) Processor carrier clip, for 3rd Gen Intel® Xeon® Scalable processor family iPN J98484 (2) M.2 heat sink assembly TNPM2HS |
| Number of storage drives supported | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Advanced Management Technology | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack-Friendly board | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Integrated BMC with IPMI | Yes |
| CPU configuration (max) | 2 |
| Chassis type | Rack (1U) |
| Target market | High Performance Computing |
| Status | Launched |
| Riser slot 2 number of lanes | 16 |
| Riser slot 1 number of lanes | 16 |
| Launch date | Q2'21 |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | 2025 |
| Harmonized System (HS) code | 8473301180 |
| Export Control Classification Number (ECCN) | 5A002U |
| Commodity Classification Automated Tracking System (CCATS) | G157815L1 |
| Logistics data | |
| Harmonized System (HS) code | 8473301180 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Advanced Management Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 210523 |
| Design | |
| Rack-Friendly board | Yes |
| Chassis type | Rack (1U) |
| Power | |
| Thermal Design Power (TDP) | 205 W |
| Packaging data | |
| Packaging content | (1) Intel® Server Board DDR4 D50TNP1SBCR (1) 1U half-width module tray – iPN K53210 (1) 1U compute module air duct – iPN K61940 (2) 1U PCIe Riser (x16 PCIe slot and M.2 Connector) for D50TNP1SBCR board TNP1UCRRISER (2) 1U riser bracket to support TNP1UCRRISER – iPN K25206 (1) 1U Air-Cooled front Heat Sink TNP1UHSF (1) 1U Air-Cooled Rear Heat Sink TNP1UHSB (2) Processor carrier clip, for 3rd Gen Intel® Xeon® Scalable processor family iPN J98484 (2) M.2 heat sink assembly TNPM2HS |
| Other features | |
| On-board graphics card | No |
| CPU configuration (max) | 2 |
| Target market | High Performance Computing |
| Status | Launched |
| Riser slot 2 number of lanes | 16 |
| Riser slot 1 number of lanes | 16 |
| Launch date | Q2'21 |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | 2025 |
