D-Link

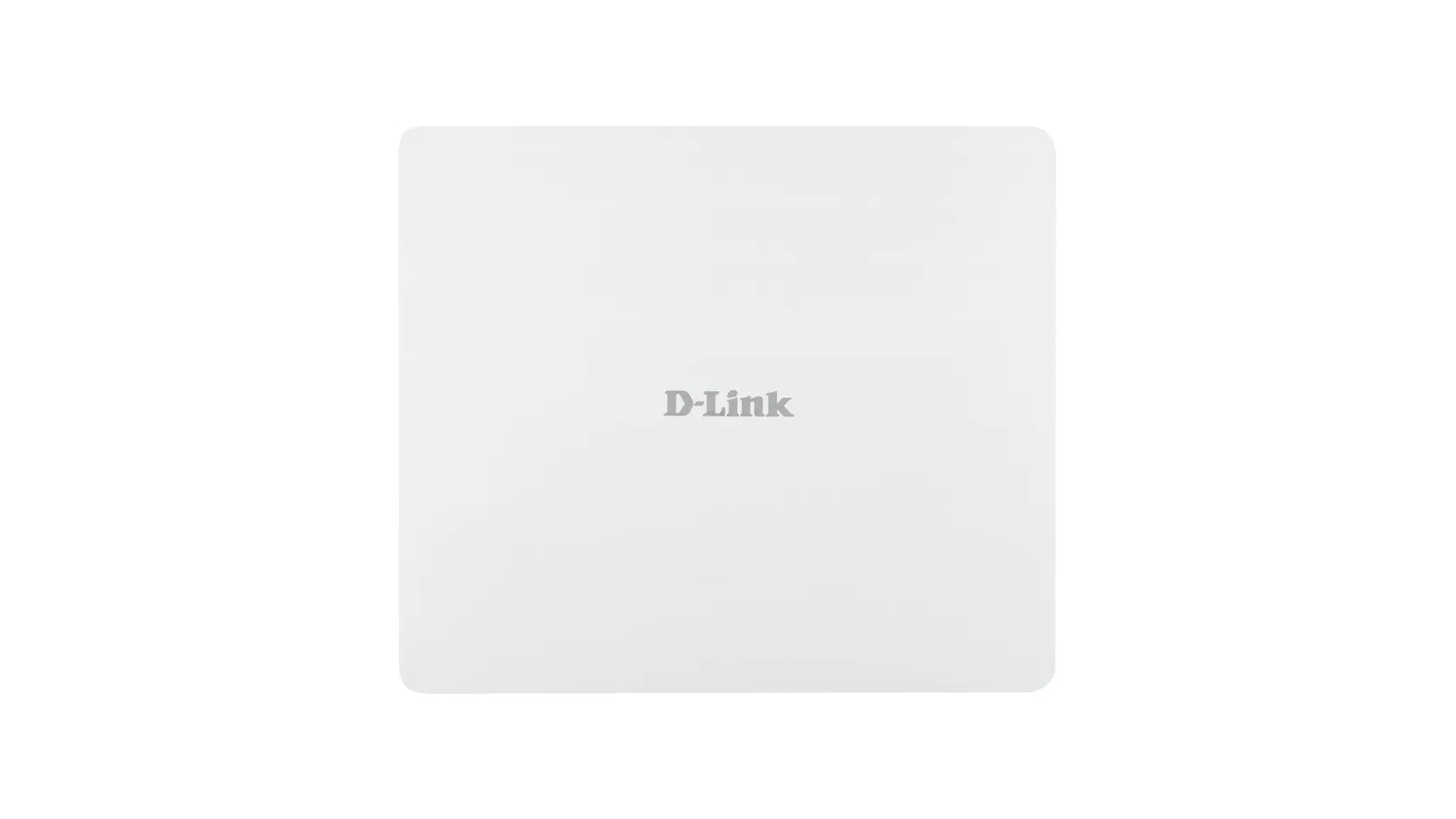

DAP-3666 - D-Link NUCLIAS CONNECT AC1200 WAVE 2 OUTDO
DAP-3666 - D-Link NUCLIAS CONNECT AC1200 WAVE 2 OUTDO
SKU:DAP-3666
Regular price
$400.90 USD
Regular price
Sale price
$400.90 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Transmitting power | 26 dBmW |
| Frequency band | 2.4, 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wireless LAN features | |
| Frequency band | 2.4, 5 GHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Transmitting power | 26 dBmW |
| Frequency band | 2.4, 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Pole |
| Product colour | White |
| Cable lock slot | Yes |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
| Transmitting power | 26 dBmW |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Packaging content | |
| Number of products included | 1 pc(s) |
Specification:
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| Frequency band | 2.4/5 GHz |
| Web-based management | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC |
| Maximum data transfer rate | 1800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Mean time between failures (MTBF) | 30000 h |
| Wireless LAN features | |
| Frequency band | 2.4/5 GHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Certificates | |
| Certification | FCC |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Mean time between failures (MTBF) | 30000 h |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, SSID, SSL/TLS, WPA, WPA2, WPA3 |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 19.44 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 2.5 A |
| AC input voltage | 12 V |
| Design | |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power, Status |
| Certification | FCC |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4.3 dBi |
| Technical details | |
| Reset button | Yes |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Indication | |
| LED indicators | Power, Status |
| Weight & dimensions | |
| Width | 6.69" (170 mm) |
| Depth | 6.69" (170 mm) |
| Weight | 16.8 oz (477.4 g) |
| Height | 1.1" (28 mm) |
